OIL PUMP

KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

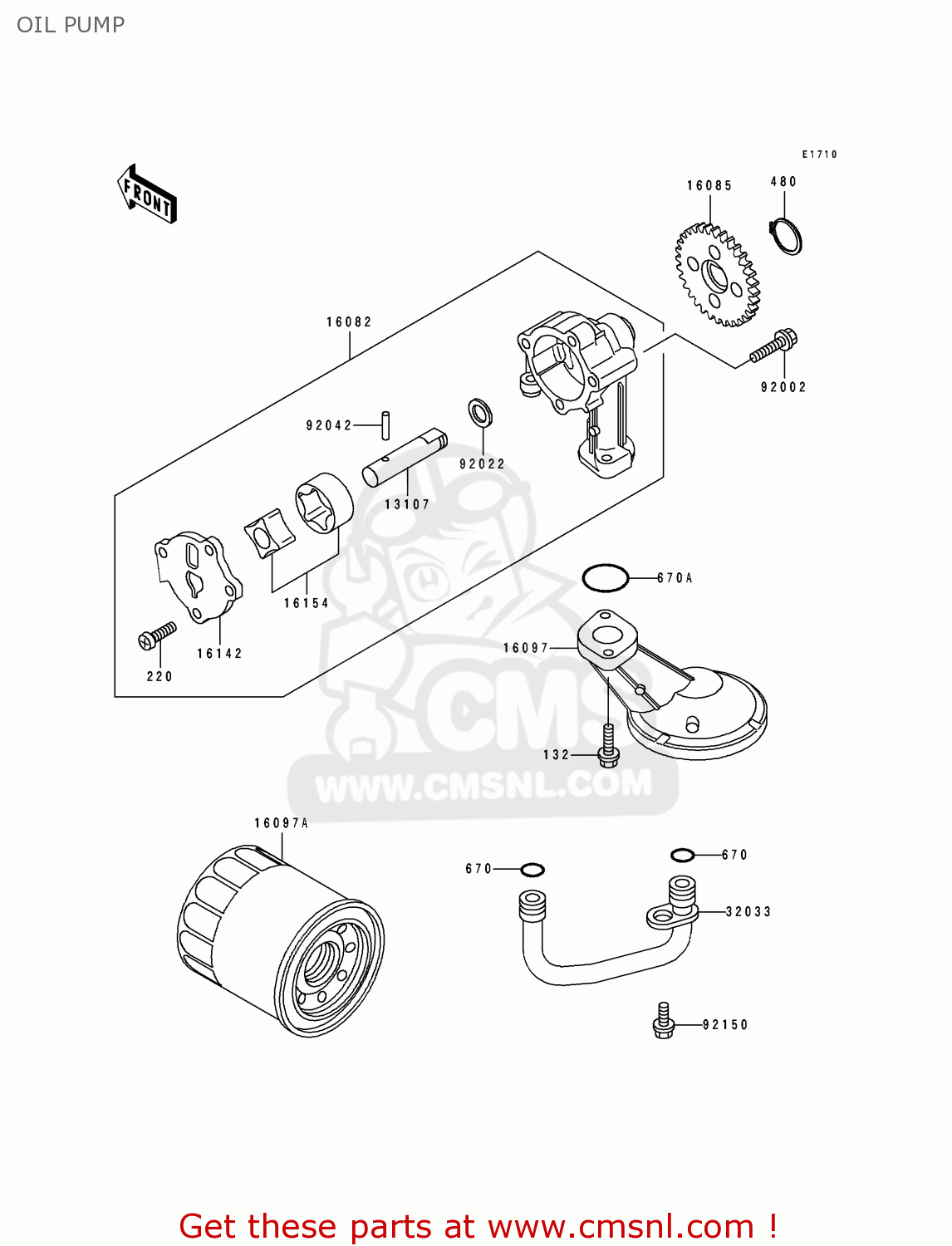

Oil pump diagram KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

670

670B2010
ref: 670

O RING,10MM

€ 1.00

670A

670D2022
ref: 670A

O-RING, 22M/M

€ 6.50

13107

131071202
ref: 13107

SHAFT,OIL PUMP

€ 16.00

16082

160821085
ref: 16082

PUMP-ASSY-OIL

€ 160.50

16085

160851143
ref: 16085

GEAR,OIL PUMP

€ 99.00

16097

160971056
ref: 16097

FILTER-ASSY-OIL

€ 13.00

16097A

160971064
ref: 16097A

FILTER-ASSY-OIL

€ 10.50

16142

161421077
ref: 16142

COVER-PUMP,OIL

€ 11.00

16154

161541066
ref: 16154

ROTOR-PUMP,OIL

€ 39.00

32033

320331540
ref: 32033

PIPE

€ 38.00

92002

920021609
ref: 92002

BOLT

€ 3.00

92022

92022311
ref: 92022

WASHER,PLAIN

€ 2.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92150

921501826
ref: 92150

BOLT,6X12

€ 2.50

OIL PUMP

all assemblies
