AIR CLEANER

KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

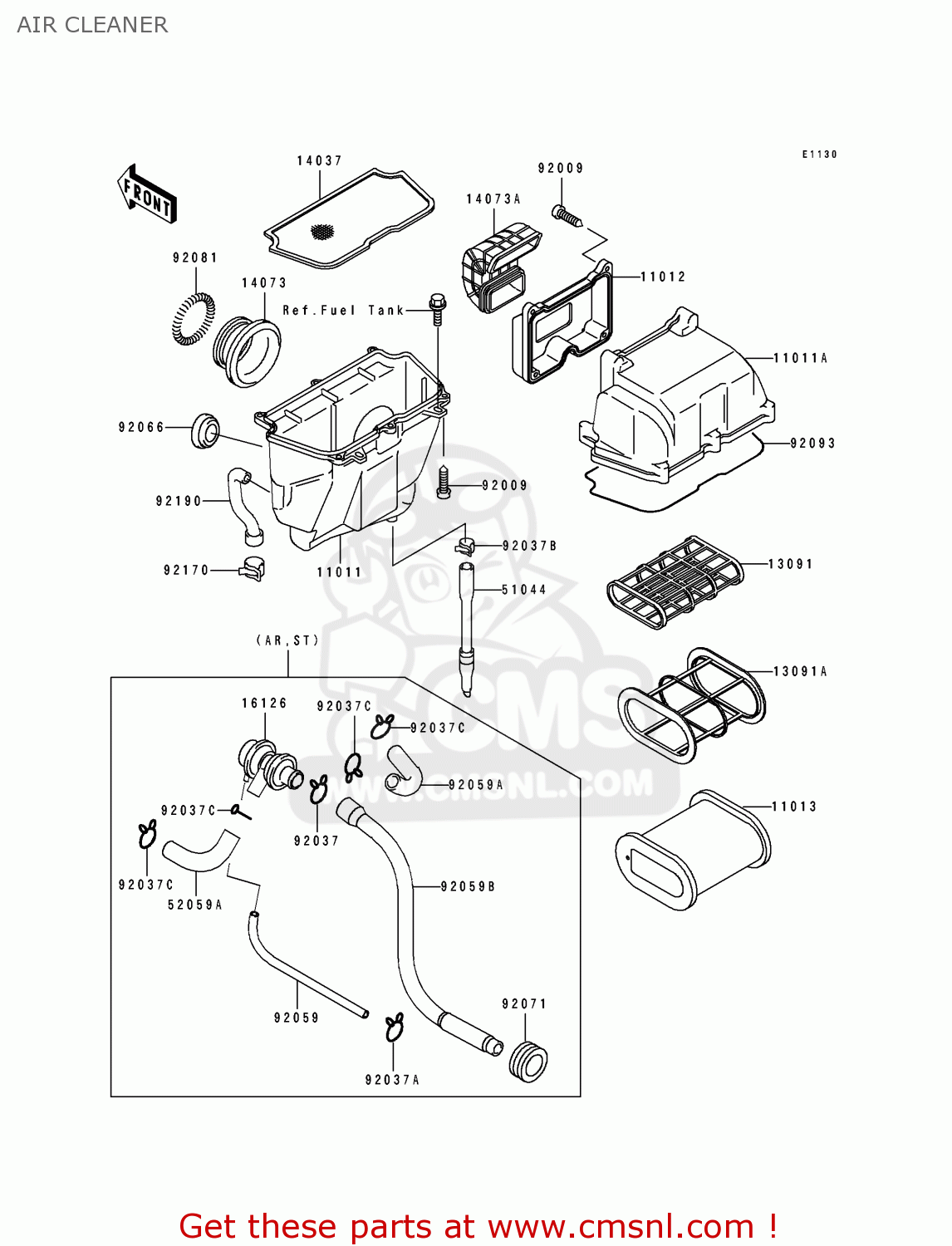

Air cleaner diagram KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

AIR CLEANER KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR CLEANER KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
AIR CLEANER KLE500A1 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11011
110111365
ref: 11011
CASE-AIR FILTER,LWR
€ 141.50
11011A
110111409
ref: 11011A
CASE-AIR FILTER,UPP
€ 80.50
11012
110121777
ref: 11012
CAP,AIR FILTER
€ 27.50
11013
110131154
ref: 11013
ELEMENT-AIR FILTER
110131154
€ 17.00
13091
130911467
ref: 13091
HOLDER,ELEMENT
130911467
€ 11.00
13091A
130911468
ref: 13091A
HOLDER,ELEMENT
130911468
€ 10.00
14037
140371150
ref: 14037
SCREEN
€ 29.00
14073
140731292
ref: 14073
DUCT,CARBURATOR
140731292
€ 17.00
14073A
140731481
ref: 14073A
DUCT,INTAKE
€ 18.00
16126
161261014
ref: 16126
ARST
VALVE,AIR SWITCH
161261014
€ 135.50
51044
510441084
ref: 51044
TUBE-ASSY,DRAIN
510441084
€ 9.50
92009
920091339
ref: 92009
SCREW,TAPPING, 5X25
€ 3.00
92037
920371076
ref: 92037
ARST
CLAMP,TUBE
920371076
€ 4.00
92037A
920371712
ref: 92037A
ARST
CLAMP
920371712
€ 3.00
92037B
920371861
ref: 92037B
CLAMP
920371861
€ 5.50
92037C
92037213
ref: 92037C
ARST
CLAMP, BREATHER TUBE
92037213
€ 2.50
92059
920591043
ref: 92059
ARST
TUBE,TUBE 4X9X290
€ 7.00
92059A
920591529
ref: 92059A
ARST
TUBE,AIR SWITCH VALVE
920591529
€ 10.00
92059B
920591530
ref: 92059B
ARST
TUBE,AIR SWITCH VALVE
920591530
€ 17.00
92066
920661321
ref: 92066
EUFGFRGRITNRSDSPUK
PLUG,25MM
920661321
€ 8.50
92071
920711028
ref: 92071
ARST
GROMMET AIR FILTER
€ 4.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
920811457
€ 7.00
92093
920931321
ref: 92093
SEAL,AIR FILTER
€ 8.50
92170
921701060
ref: 92170
CLAMP
921701060
€ 6.00
92190
921901238
ref: 92190
TUBE,BREATHER
921901238
€ 9.00
