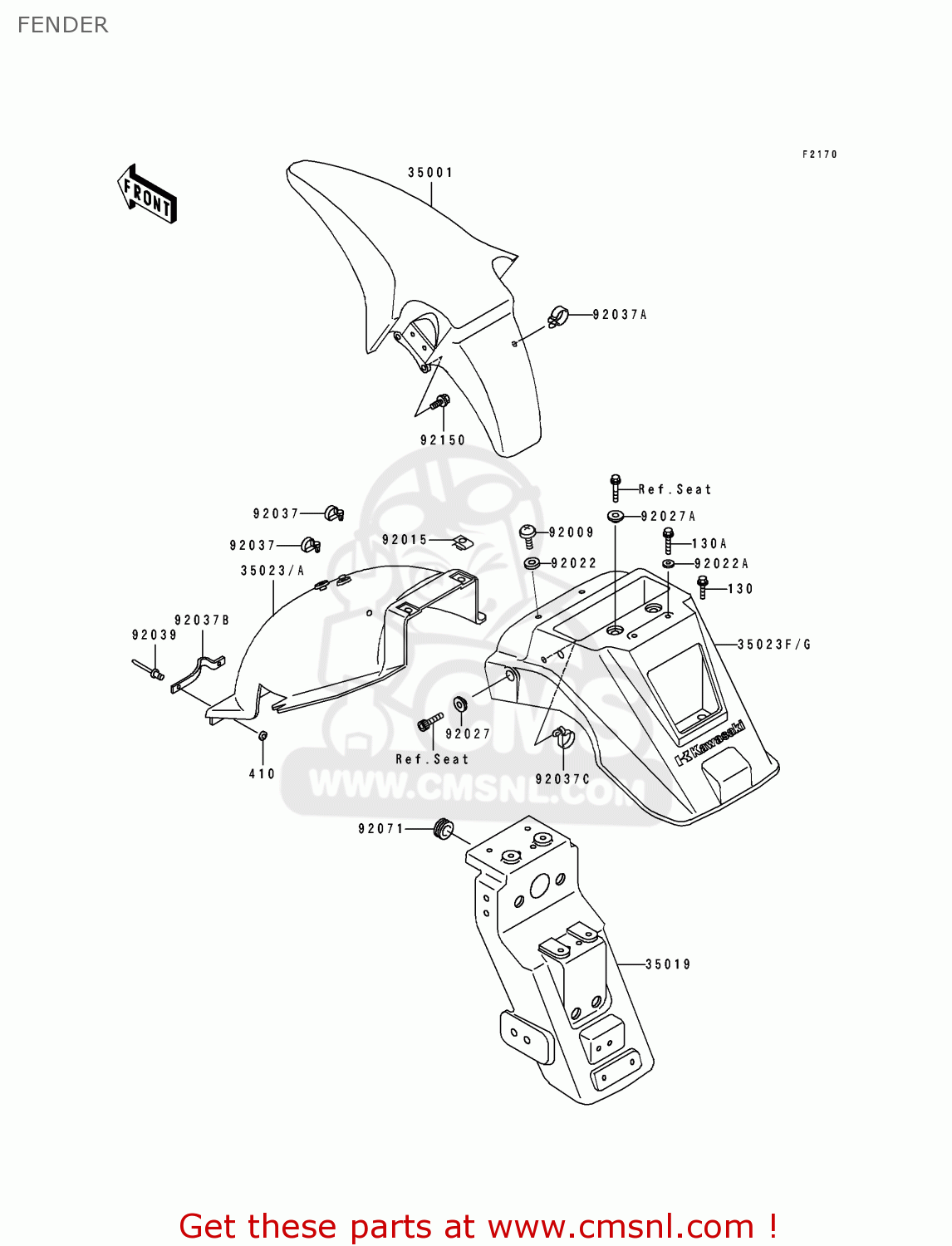

FENDER

ref

part #

description

quantity

130

130B0620
ref: 130

BOLT,HEX HEAD,6X20

€ 2.50

130A

130D0625
ref: 130A

BOLT-FLANGED

€ 0.50

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

35001

350011136R1
ref: 35001

FENDER-ASSY-FRONT,P.A

€ 113.00

35019

350191186
ref: 35019

FLAP,RR

€ 48.50

35023

350231181
ref: 35023

FENDER-REAR,FR

€ 47.50

35023G

350235056R1
ref: 35023G

FENDER-REAR,RR,P.A.WH

€ 162.50

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92015

920151602
ref: 92015

NUT,6MM

€ 4.50

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92022A

92022183
ref: 92022A

WASHER,6.2X11X1.5

€ 2.50

92027

920271745
ref: 92027

COLLAR,FUEL TANK

€ 5.50

92027A

920271794
ref: 92027A

COLLAR

€ 2.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371827
ref: 92037A

CLAMP,HOSE

€ 5.00

92037B

920371901
ref: 92037B

CLAMP

€ 7.00

92037C

920371903
ref: 92037C

CLAMP

€ 5.00

92039

920391038
ref: 92039

RIVET

€ 2.00

92071

920711027
ref: 92071

GROMMET,AIR CLEANER

€ 3.00

92150

921501340
ref: 92150

BOLT,6X14

€ 3.00
