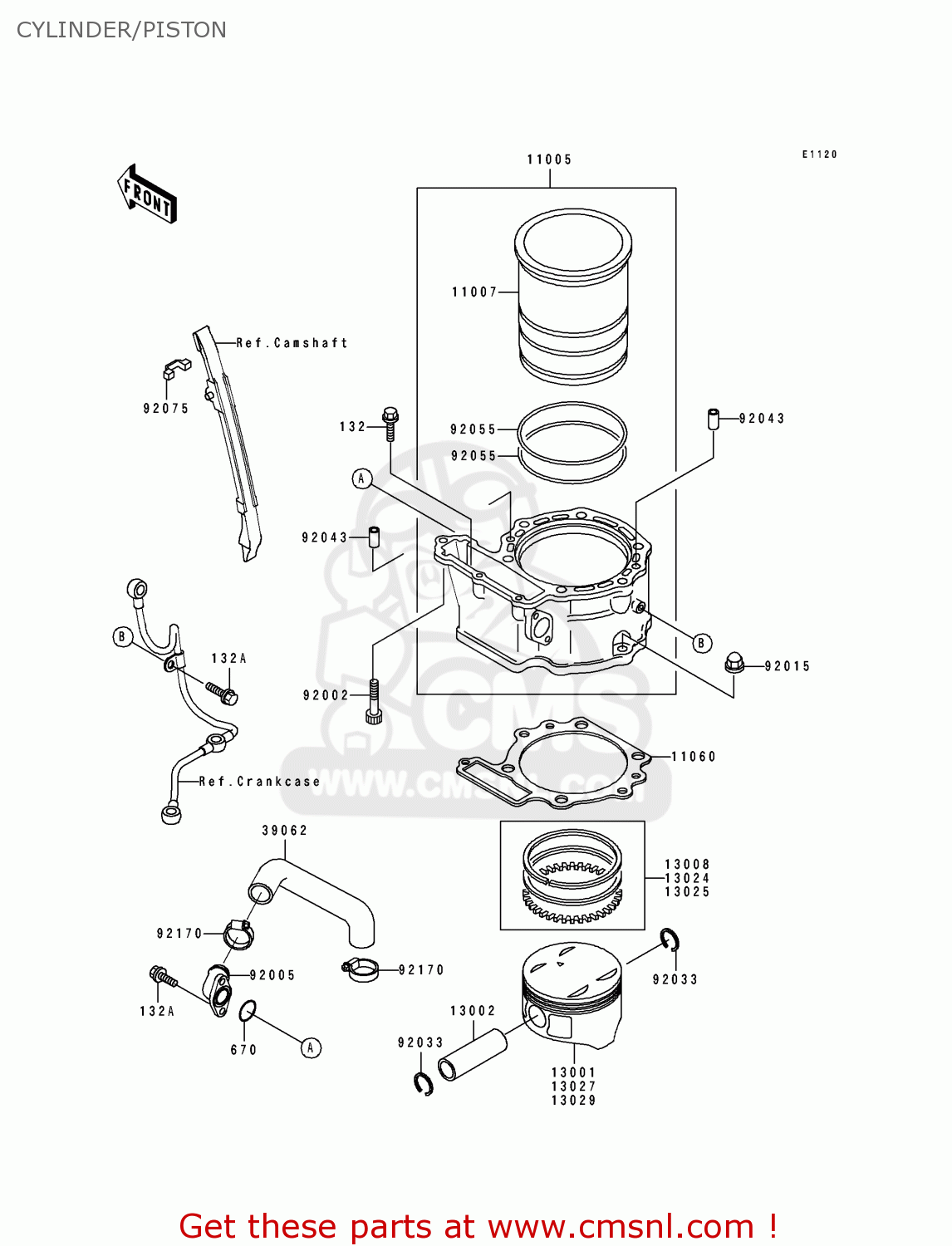

CYLINDER/PISTON

ref

part #

description

quantity

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

670

670B2018
ref: 670

O RING,18MM

€ 1.00

11005

110051588
ref: 11005

CYLINDER-ENGINE

€ 915.50

11007

110071093
ref: 11007

LINER-CYLINDER

€ 115.50

11060

110601110
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 9.00

13001

130011284
ref: 13001

PISTON-ENGINE,STD

€ 113.50

13002

130021069
ref: 13002

PIN-PISTON

€ 22.00

13008

130081081
ref: 13008

RING-SET-PISTON,STD

€ 62.50

13024

130241071
ref: 13024

RING-SET-PISTON LL,O/

€ 74.00

13025

130251078
ref: 13025

RING-SET-PISTON L,O/S

€ 74.00

13027

130271153
ref: 13027

PISTON-ENGINE LL,O/S

€ 134.50

13029

130291176
ref: 13029

PISTON-ENGINE L,O/S

€ 134.50

39062

390621216
ref: 39062

HOSE-COOLING,PUMP-CYL

€ 16.00

92002

920021409
ref: 92002

BOLT,8X35

€ 3.50

92005

920051122
ref: 92005

FITTING

€ 14.50

92015

920151174
ref: 92015

NUT,CAP,8MM,BLACK

€ 3.00

92033

920331226
ref: 92033

RING-SNAP

€ 2.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551368
ref: 92055

RING-O

€ 11.00

92075

920751968
ref: 92075

DAMPER

€ 3.50

92170

921701033
ref: 92170

CLAMP,COOLING HOSE

€ 10.50
