ENGINE COVER
KL650B3 TENGAI 1991 CANADA

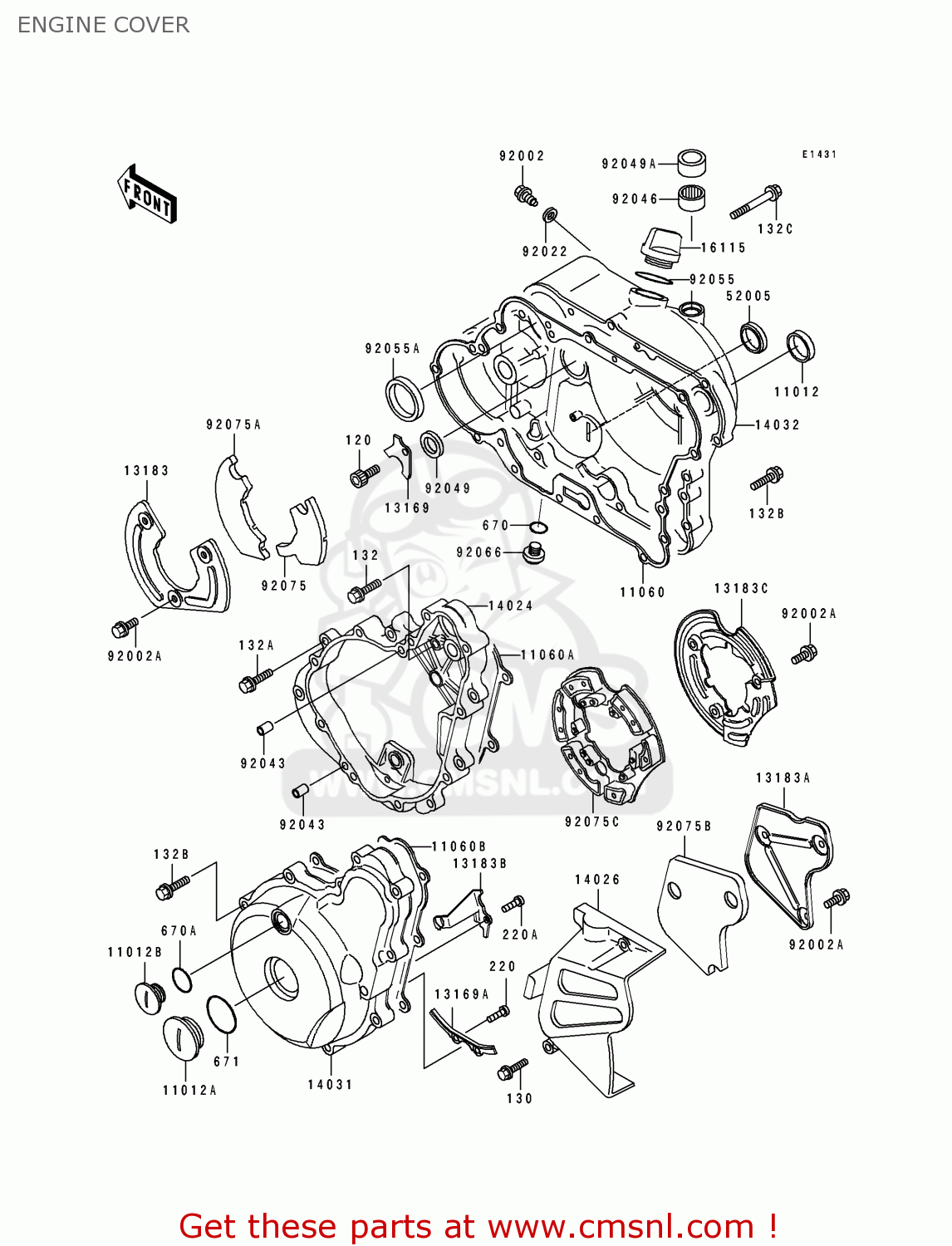

Engine cover diagram KL650B3 TENGAI 1991 CANADA
ENGINE COVER KL650B3 TENGAI 1991 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
€ 1.00
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0630
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0680
ref: 132C
BOLT-FLANGED-SMALL
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
€ 1.00
11012
110121567
ref: 11012
CAP
€ 6.50
11012A
110121693
ref: 11012A
CAP
€ 5.50
11012B
110121694
ref: 11012B
CAP,TOP MARK
€ 4.50
11060
110601111
ref: 11060
GASKET, CLUTCH COVER (NAS)
€ 23.00
11060A
110601112
ref: 11060A
GASKET,GENERATOR CASE (NAS)
€ 18.00
11060B
110601113
ref: 11060B
GASKET,GENERATOR COVE (NAS)
€ 18.00
13169
131691735
ref: 13169
PLATE,OIL SEAL
€ 4.00
13169A
131691882
ref: 13169A
PLATE,PULSING COIL LE
€ 6.00
13183
131831122
ref: 13183
PLATE
€ 7.00
13183A
131831133
ref: 13183A
PLATE
€ 11.50
13183B
131831144
ref: 13183B
PLATE,GENERATOR
€ 6.50
13183C
131831146
ref: 13183C
PLATE
€ 11.50
14024
140241773
ref: 14024
COVER,GENERATOR CASE
€ 126.50
14026
140261146
ref: 14026
COVER-CHAIN
€ 55.50
14031
140311237
ref: 14031
COVER-GENERATOR
€ 197.50
14032
140321275
ref: 14032
COVER-CLUTCH
€ 263.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92002
920021356
ref: 92002
BOLT
€ 4.00
92002A
920021944
ref: 92002A
BOLT,6X8
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491158
ref: 92049
SEAL-OIL,SCY 15X30X7
€ 16.50
92049A
920491271
ref: 92049A
SEAL, OIL
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
€ 9.50
92075
920751939
ref: 92075
DAMPER
€ 8.00
92075A
920751940
ref: 92075A
DAMPER
€ 8.50
92075B
920751943
ref: 92075B
DAMPER
€ 14.50
92075C
920751959
ref: 92075C
DAMPER
€ 15.00
670
670B2011
ref: 670
O RING,11MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
