CRANKSHAFT
KL650B3 TENGAI 1991 CANADA

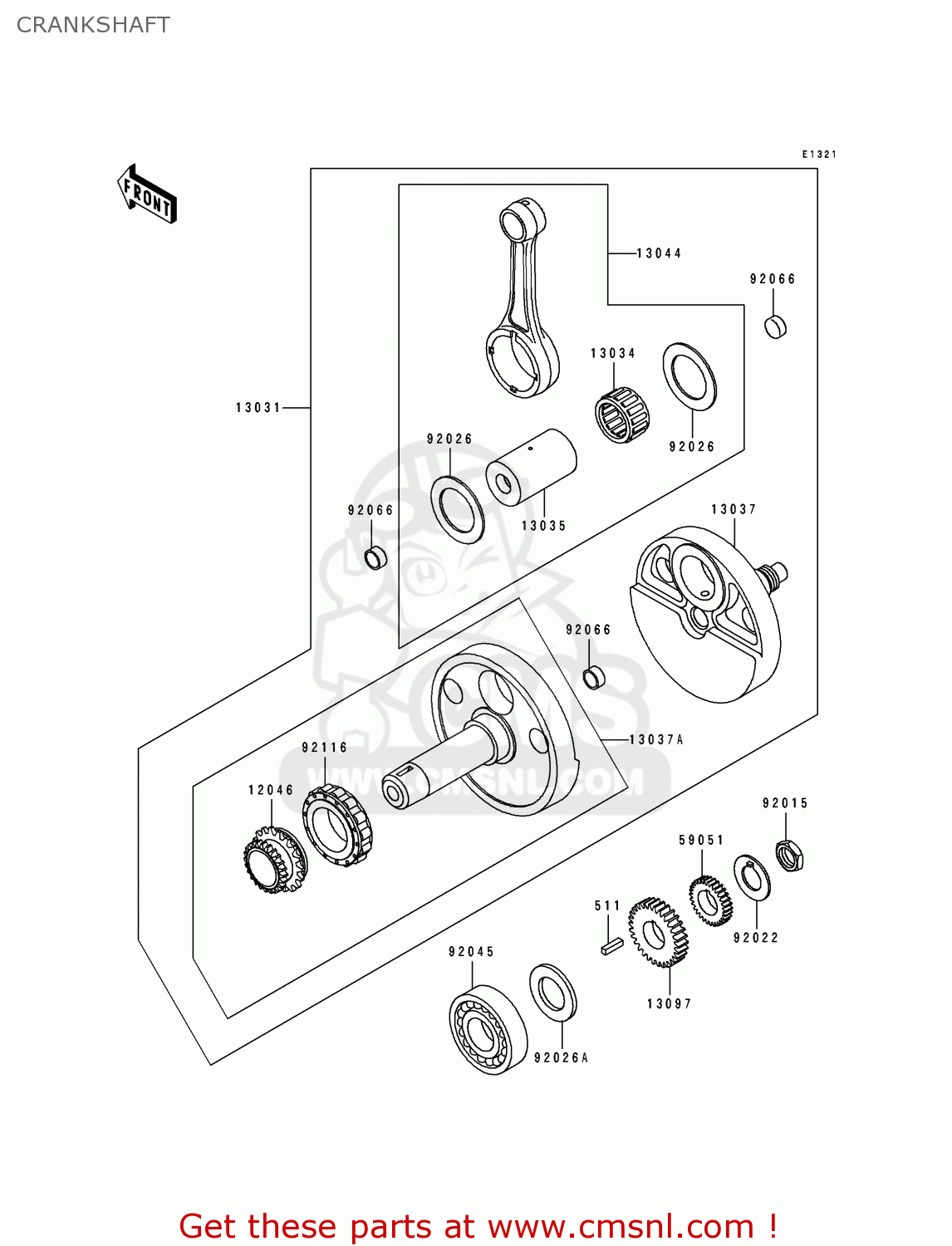

Crankshaft diagram KL650B3 TENGAI 1991 CANADA
CRANKSHAFT KL650B3 TENGAI 1991 CANADA
×
prices are in EUR
ref
part #
description
quantity
511
511A0520
ref: 511
KEY-SUNK
€ 1.50
12046
120461070
ref: 12046
SPROCKET,CAM&BALANCER
€ 76.50
13031
130311276
ref: 13031
CRANKSHAFT-COMP
€ 899.50
13034
130341084
ref: 13034
BEARING-BIG END
€ 67.00
13035
130351066
ref: 13035
PIN-CRANK
€ 61.50
13037
130371351
ref: 13037
CRANKSHAFT,RH
€ 613.50
13037A
130375077
ref: 13037A
CRANKSHAFT,LH
€ 448.00
13044
130445073
ref: 13044
SET-CONNECTING ROD
€ 270.50
13097
130971185
ref: 13097
GEAR-PRIMARY SPUR,33T
€ 54.00
59051
590511145
ref: 59051
GEAR-SPUR,29T
€ 41.50
92015
920151320
ref: 92015
NUT,22MM
€ 12.50
92022
920221490
ref: 92022
WASHER,CLAW,22X40X1
€ 3.00
92026
920261279
ref: 92026
SPACER,40X60X1.5
€ 13.50
92026A
920261280
ref: 92026A
SPACER,30X50X4
€ 12.50
92045
920451187
ref: 92045
BEARING-BALL,TM-SX08A
€ 122.00
92066
920661154
ref: 92066
PLUG
€ 3.00
92116
921161064
ref: 92116
BEARING-ROLLER,L40-11
€ 157.50
