SIDE COVERS/CHAIN COVER

KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST

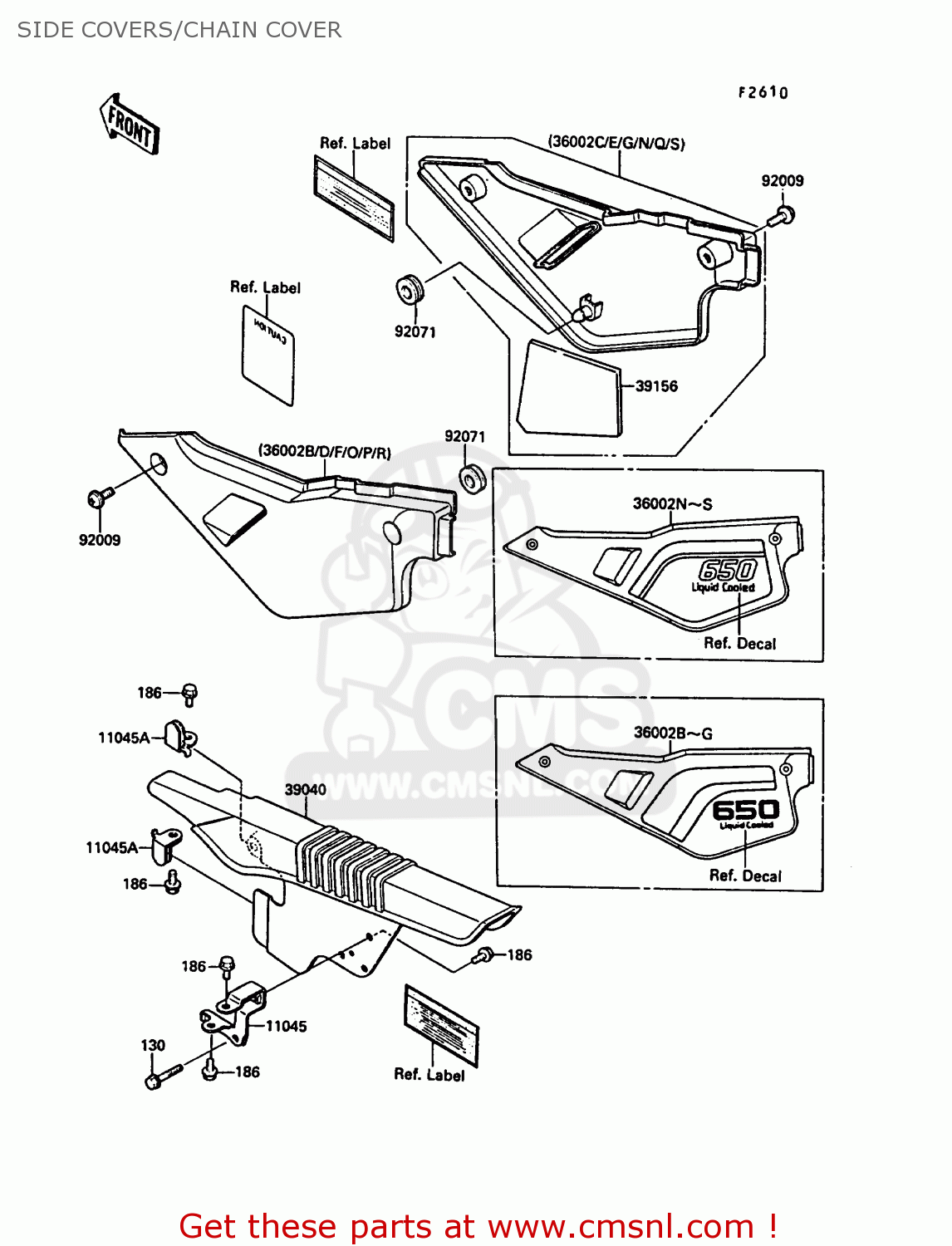

Side covers/chain cover diagram KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11045

110451334
ref: 11045

BRACKET,CHAIN CASE,RR

€ 9.00

11045A

110451335
ref: 11045A

BRACKET,CHAIN CASE,FR

€ 7.00

36002N

3600254696F
ref: 36002N
AREUFGFRGRITSDSTUK

COVER-SIDE,RH,P.WHITE

€ 70.00

36002O

3600254706F
ref: 36002O
AREUFGFRGRITSDSTUK

COVER-SIDE,LH,P.WHITE

€ 77.00

36002P

3600254716F
ref: 36002P
AREUGRITNRST

COVER-SIDE,LH,P.WHITE

€ 54.00

36002Q

3600254726F
ref: 36002Q
AREUGRITNRST

COVER-SIDE,RH,P.WHITE

€ 54.00

36002R

3600254796C
ref: 36002R
AREUFGFRGRITSPUK

COVER-SIDE,LH,EBONY

€ 70.00

36002S

3600254806C
ref: 36002S
AREUFGFRGRITSPUK

COVER-SIDE,RH,EBONY

€ 77.00

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

39156

391561073
ref: 39156

PAD,SIDE COVER

€ 22.00

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92071

92071056
ref: 92071

GROMMET

€ 2.50
