HANDLEBAR

KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST

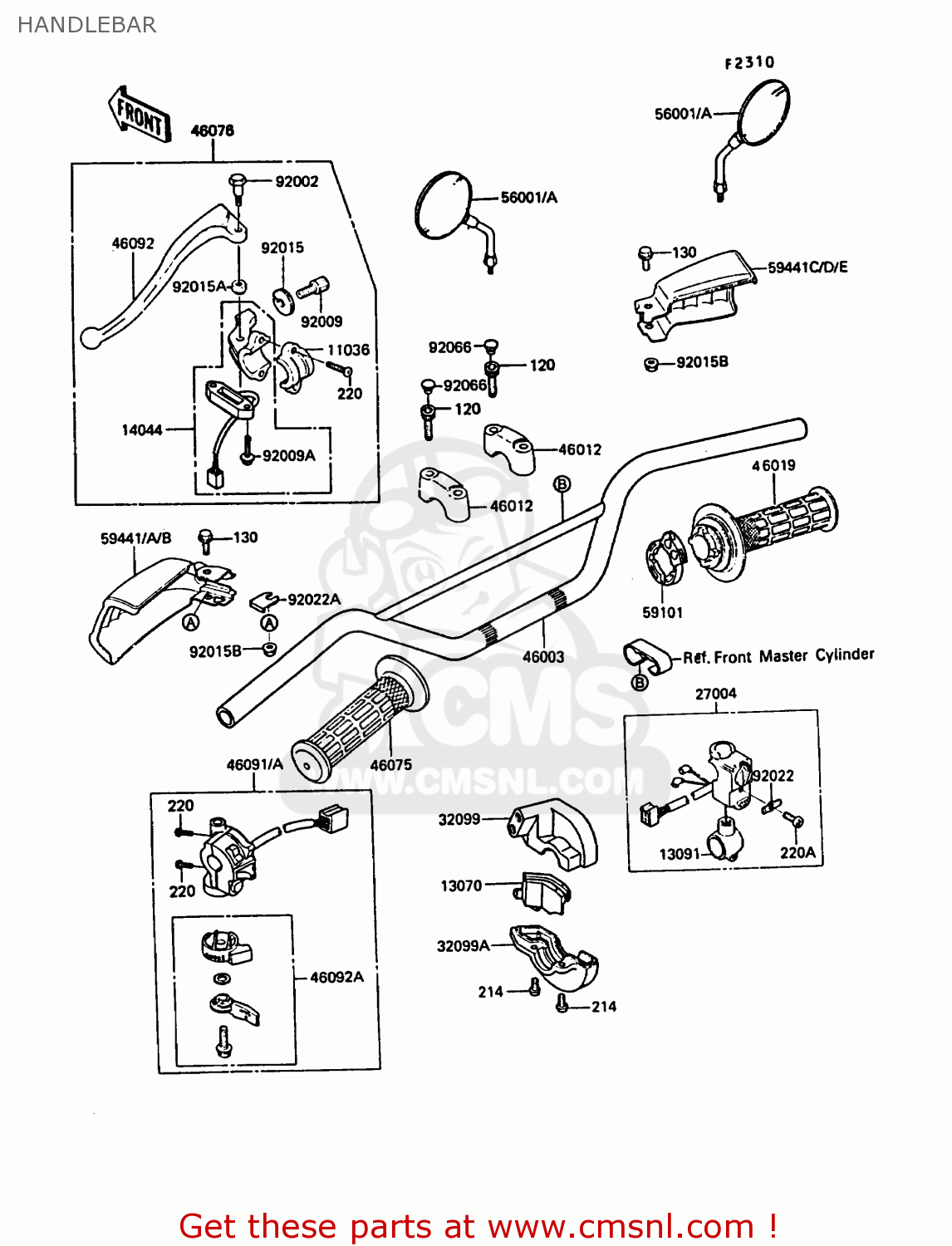

Handlebar diagram KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST

HANDLEBAR KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST
HANDLEBAR KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST
HANDLEBAR KL650A2 KLR650 1988 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
110361297
€ 12.00
13070
130701131
ref: 13070
GUIDE,THROTTLE PEACE
130701131
€ 5.50
13091
130911255
ref: 13091
HOLDER,ENGINE STOP SW
130911255
€ 55.00
14044
140441062
ref: 14044
HOLDER-CABLE,CLUTCH
140441062
€ 76.50
27004
270041053
ref: 27004
SWITCH-ASSY,ENGINE ST
270041053
€ 62.50
32099
320991072
ref: 32099
CASE,THROTTLE,UPP
320991072
€ 22.50
32099A
320991073
ref: 32099A
CASE,THROTTLE,LWR
320991073
€ 22.50
46003
460031153
ref: 46003
HANDLE
460031153
€ 106.50
46012
460121102
ref: 46012
HOLDER-HANDLE,UPP
460121102
€ 17.00
46019
460191054
ref: 46019
GRIP-ASSY,THROTTLE
460191054
€ 27.50
46075
460751051
ref: 46075
GRIP,LH
460751051
€ 14.50
46076
460761142
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 60.00
46091
460911418
ref: 46091
AREUFGFRGRNRSDSPSTUK
HOUSING-ASSY-CONTROL,
460911418
€ 155.00
46091A
460911433
ref: 46091A
IT
HOUSING-ASSY-CONTROL,
460911433
€ 152.00
46092
460921111
ref: 46092
LEVER-GRIP,CLUTCH
460921111
€ 13.00
46092A
460921123
ref: 46092A
LEVER-GRIP,CHOKE
460921123
€ 10.00
56001
560011204
ref: 56001
ARFGGRNRSDSPST
MIRROR-ASSY
560011204
€ 48.00
56001A
560011223
ref: 56001A
EUFRITUK
MIRROR-ASSY
560011223
€ 79.00
59101
591011106
ref: 59101
REEL,THROTTLE
591011106
€ 10.00
59441
5944110736B
ref: 59441
AREUFGFRGRITNRSPSTUK
COVER-HANDLE,LH,S.RED
5944110736B
€ 18.00
59441B
5944110736K
ref: 59441B
AREUFGFRGRITSDSTUK
COVER-HANDLE,LH,B.BLU
5944110736K
€ 15.50
59441C
5944110746B
ref: 59441C
AREUFGFRGRITNRSPSTUK
COVER-HANDLE,RH,S.RED
5944110746B
€ 17.50
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
120S0830
€ 3.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
214
214C0518
ref: 214
SCREW-PAN+-
214C0518
€ 2.00
220
220C0514
ref: 220
SCREW-PAN-CROS
220C0514
€ 1.00
220A
220C0620
ref: 220A
SCREW-PAN-CROS,6X20,B
220C0620
€ 1.50
59441E
5944110746K
ref: 59441E
AREUFGFRGRITSDSTUK
COVER-HANDLE,RH,B.BLU
5944110746K
€ 15.50
92002
920021880
ref: 92002
BOLT,LEVER SET
920021880
€ 14.50
92009
46055009
ref: 92009
SCREW,CABLE ASJUST
46055009
€ 13.00
92009A
920091390
ref: 92009A
SCREW
920091390
€ 2.50
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
46056006
€ 6.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015B
920151603
ref: 92015B
NUT
920151603
€ 3.00
92022
920221474
ref: 92022
WASHER,ENGINE STOP SW
920221474
€ 2.50
92022A
920221896
ref: 92022A
WASHER
920221896
€ 2.50
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
920661216
€ 3.00
