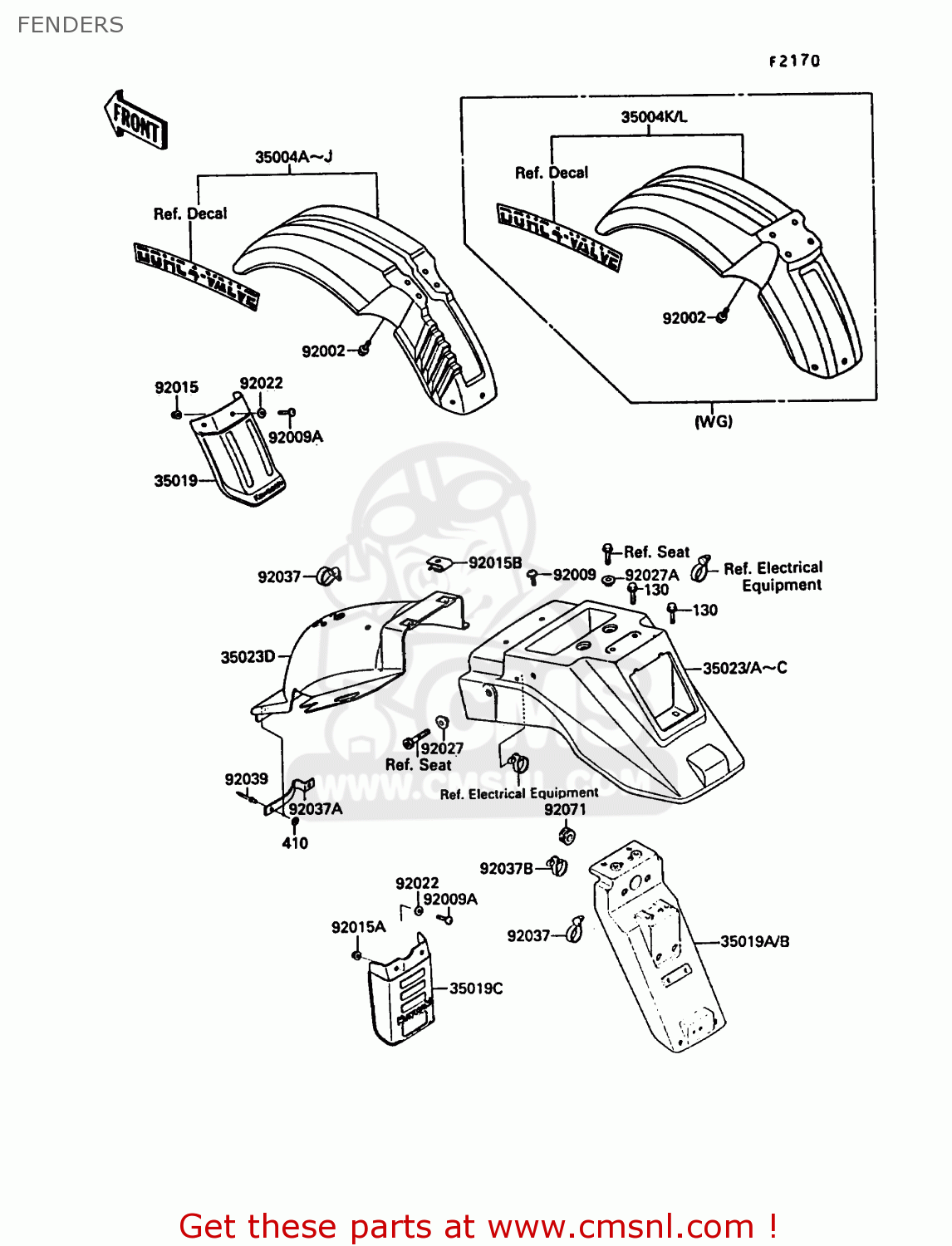

FENDERS

ref

part #

description

quantity

35004G

3500450806F
ref: 35004G
EUNRSDST

FENDER-FRONT,P.WHITE

€ 102.00

35004H

3500450816F
ref: 35004H
ARFRGRITUK

FENDER-FRONT,P.WHITE

€ 88.50

35004I

3500450826C
ref: 35004I
ARFRGRITSPUK

FENDER-FRONT,EBONY

€ 102.00

35004J

3500450836C
ref: 35004J
EU

FENDER-FRONT,EBONY

€ 88.50

35004K

3500450906F
ref: 35004K
FG

FENDER-FRONT,P.WHITE

€ 102.00

35004L

3500450916C
ref: 35004L
FG

FENDER-FRONT,EBONY

€ 88.50

35019

350191002
ref: 35019
EUFGNRSDST

FLAP,FENDER,FR

€ 11.50

35019A

350191187
ref: 35019A
ARFRGRITSPUK

FLAP,RR

€ 47.00

35019B

350191191
ref: 35019B
EUFGNRSDST

FLAP,RR

€ 43.50

35019C

350191192
ref: 35019C
EUFGNRSDST

FLAP,REAR FLAP

€ 13.50

130

130B0620
ref: 130

BOLT,HEX HEAD,6X20

€ 2.50

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

35023A

3502311806C
ref: 35023A
AREUFGFRGRITSPUK

FENDER-REAR,RR,EBONY

€ 82.50

35023B

3502311806F
ref: 35023B
AREUFGFRGRITNRSDSTUK

FENDER-REAR,RR,P.WHIT

€ 59.50

35023D

350231181
ref: 35023D

FENDER-REAR,FR

€ 47.50

92002

920021187
ref: 92002

BOLT,6X16

€ 2.50

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92009A

920091308
ref: 92009A
EUFGNRSDST

SCREW,6X14

€ 2.00

92015

920151193
ref: 92015
EUFGNRSDST

NUT,FLANGED,6MM

€ 0.50

92015A

920151367
ref: 92015A
EUFGNRSDST

NUT,FLANGED,6MM

€ 0.50

92015B

920151602
ref: 92015B

NUT,6MM

€ 4.50

92022

92022125
ref: 92022
EUFGNRSDST

WASHER,6.5X20X1.6

€ 1.00

92027

920271745
ref: 92027

COLLAR,FUEL TANK

€ 5.50

92027A

920271794
ref: 92027A

COLLAR

€ 2.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371901
ref: 92037A

CLAMP

€ 7.00

92037B

920371903
ref: 92037B

CLAMP

€ 5.00

92039

920391038
ref: 92039

RIVET

€ 2.00

92071

920711027
ref: 92071

GROMMET,AIR CLEANER

€ 3.00

all assemblies
