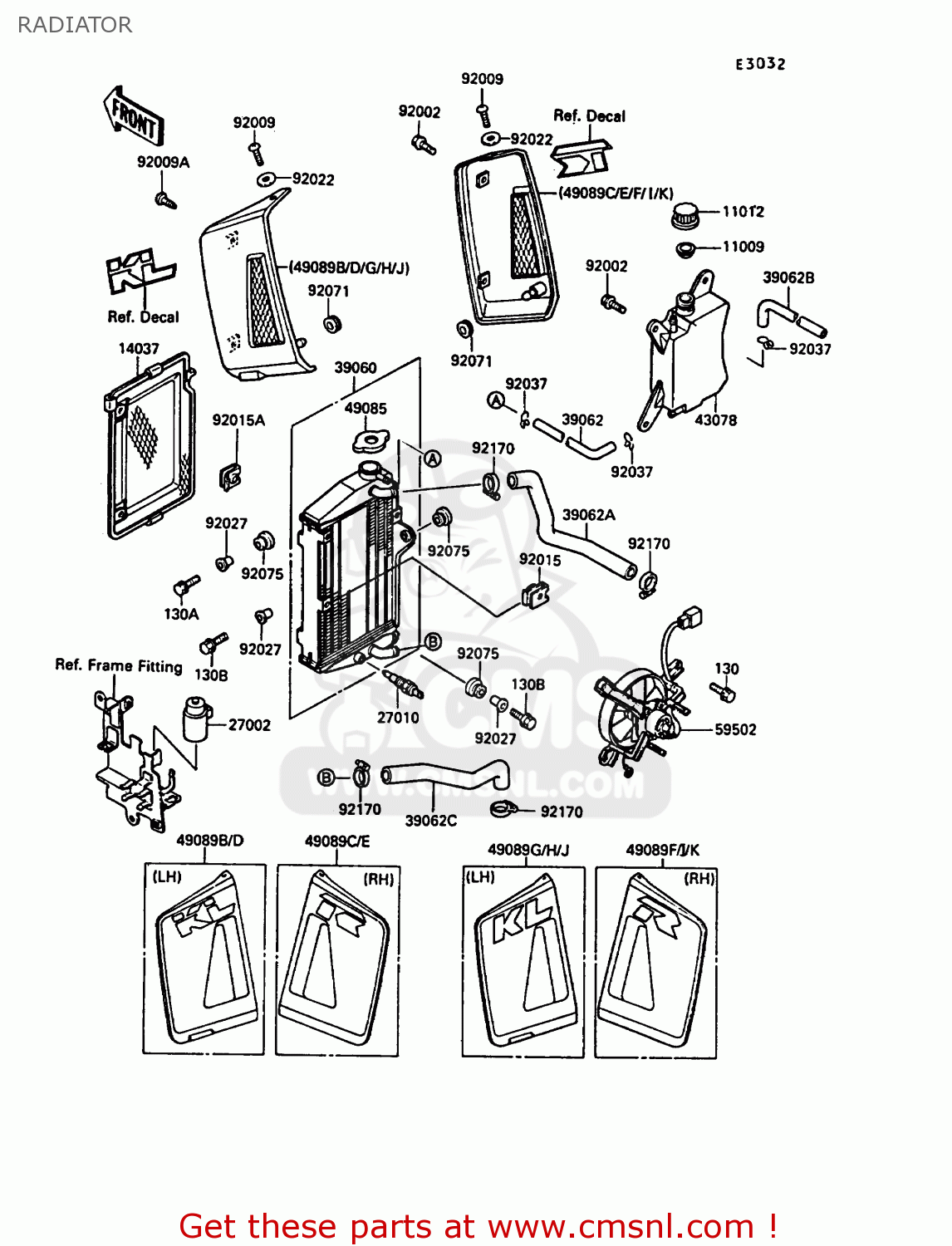

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14037

140371088
ref: 14037

SCREEN

€ 66.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27010

270101167
ref: 27010

SWITCH,FAN

€ 108.50

39060

390601074
ref: 39060

RADIATOR

€ 690.50

39062

390621125
ref: 39062

HOSE-COOLING

€ 17.50

39062A

390621217
ref: 39062A

HOSE-COOLING,HEAD-RAD

€ 35.00

39062B

390621220
ref: 39062B

HOSE-COOLING,RESERVOI

€ 17.50

39062C

390621243
ref: 39062C

HOSE-COOLING,RADIATOR

€ 23.50

43078

430781083
ref: 43078

RESERVOIR

€ 45.50

49085

490851003
ref: 49085

CAP-ASSY-PRESSURE

€ 23.50

49089F

4908950426K
ref: 49089F
AREUFGFRGRITSDSTUK

SHROUD-ENGINE,RH,B.BL

€ 81.50

49089G

4908950436K
ref: 49089G
AREUFGFRGRITSDSTUK

SHROUD-ENGINE,LH,B.BL

€ 81.50

49089H

4908950446B
ref: 49089H
AREUGRITNRST

SHROUD-ENGINE,LH,S.RE

€ 75.00

49089I

4908950456B
ref: 49089I
AREUGRITNRST

SHROUD-ENGINE,RH,S.RE

€ 75.00

49089J

4908950486B
ref: 49089J
AREUFGFRGRITSPUK

SHROUD-ENGINE,LH,S.RE

€ 75.00

49089K

4908950496B
ref: 49089K
AREUFGFRGRITSPUK

SHROUD-ENGINE,RH,S.RE

€ 75.00

59502

595021069
ref: 59502

FAN-ASSY

€ 483.00

92002

920021461
ref: 92002

BOLT,6X16

€ 3.00

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

130B

130J0625
ref: 130B

BOLT-FLANGED,6X25

€ 2.00

92009

920091383
ref: 92009

SCREW,5X14

€ 2.50

92009A

920091480
ref: 92009A

SCREW

€ 2.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751352
ref: 92075

DAMPER,RADIATOR

€ 4.00

92170

921701033
ref: 92170

CLAMP,COOLING HOSE

€ 10.50
