REAR SUSPENSION

KL650A15 KLR650 2001 USA CALIFORNIA CANADA

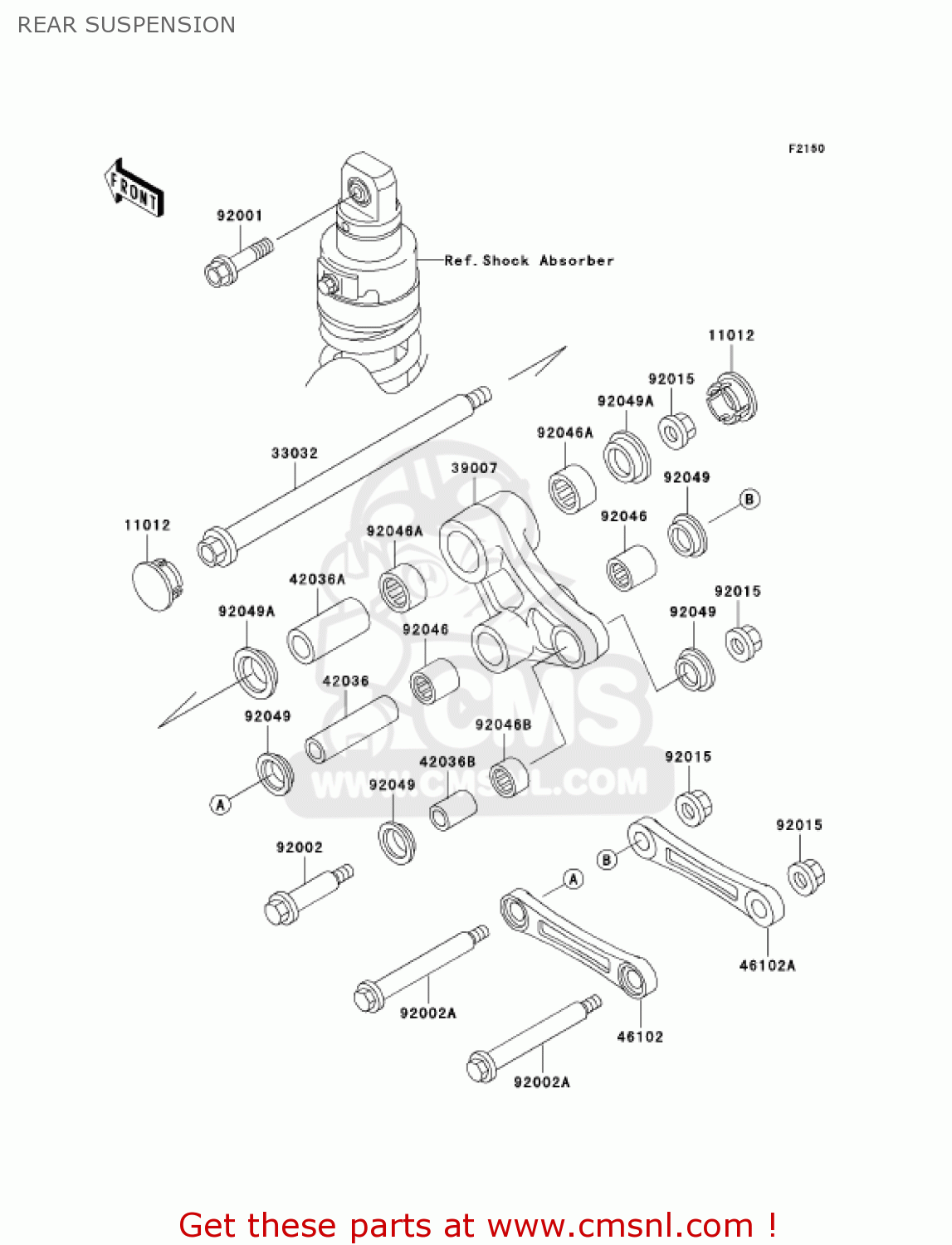

Rear suspension diagram KL650A15 KLR650 2001 USA CALIFORNIA CANADA

REAR SUSPENSION KL650A15 KLR650 2001 USA CALIFORNIA CANADA
REAR SUSPENSION KL650A15 KLR650 2001 USA CALIFORNIA CANADA
REAR SUSPENSION KL650A15 KLR650 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121559
ref: 11012
CAP,32X14
110121559
€ 4.50
33032
330321129
ref: 33032
SHAFT-SWING ARM
330321129
€ 50.50
39007
390071119
ref: 39007
ARM-SUSP,UNI TRAK
390071119
€ 195.50
42036
420361205
ref: 42036
SLEEVE,15X20X82
420361205
€ 18.50
42036A
420361207
ref: 42036A
SLEEVE,20X28X60
420361207
€ 22.50
42036B
420361208
ref: 42036B
SLEEVE,15X20X30
420361208
€ 10.00
46102
461021227
ref: 46102
ROD,SUSPENSION,LH
461021227
€ 66.50
46102A
461021228
ref: 46102A
ROD,SUSPWNSION,RH
461021228
€ 66.50
92001
920011939
ref: 92001
BOLT,12X45
920011939
€ 5.50
92002
920021869
ref: 92002
BOLT,FLANGED,14X64
920021869
€ 13.00
92002A
920021870
ref: 92002A
BOLT,FLANGED,14X120
920021870
€ 19.00
92015
920151459
ref: 92015
NUT,14MM
920151459
€ 6.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92046A
920461111
ref: 92046A
BEARING-NEEDLE,BM2817
920461111
€ 21.50
92046B
920461112
ref: 92046B
BEARING-NEEDLE,BM2027
920461112
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92049A
920491181
ref: 92049A
SEAL-OIL
920491181
€ 7.50
