CRANKSHAFT

KL650A15 KLR650 2001 USA CALIFORNIA CANADA

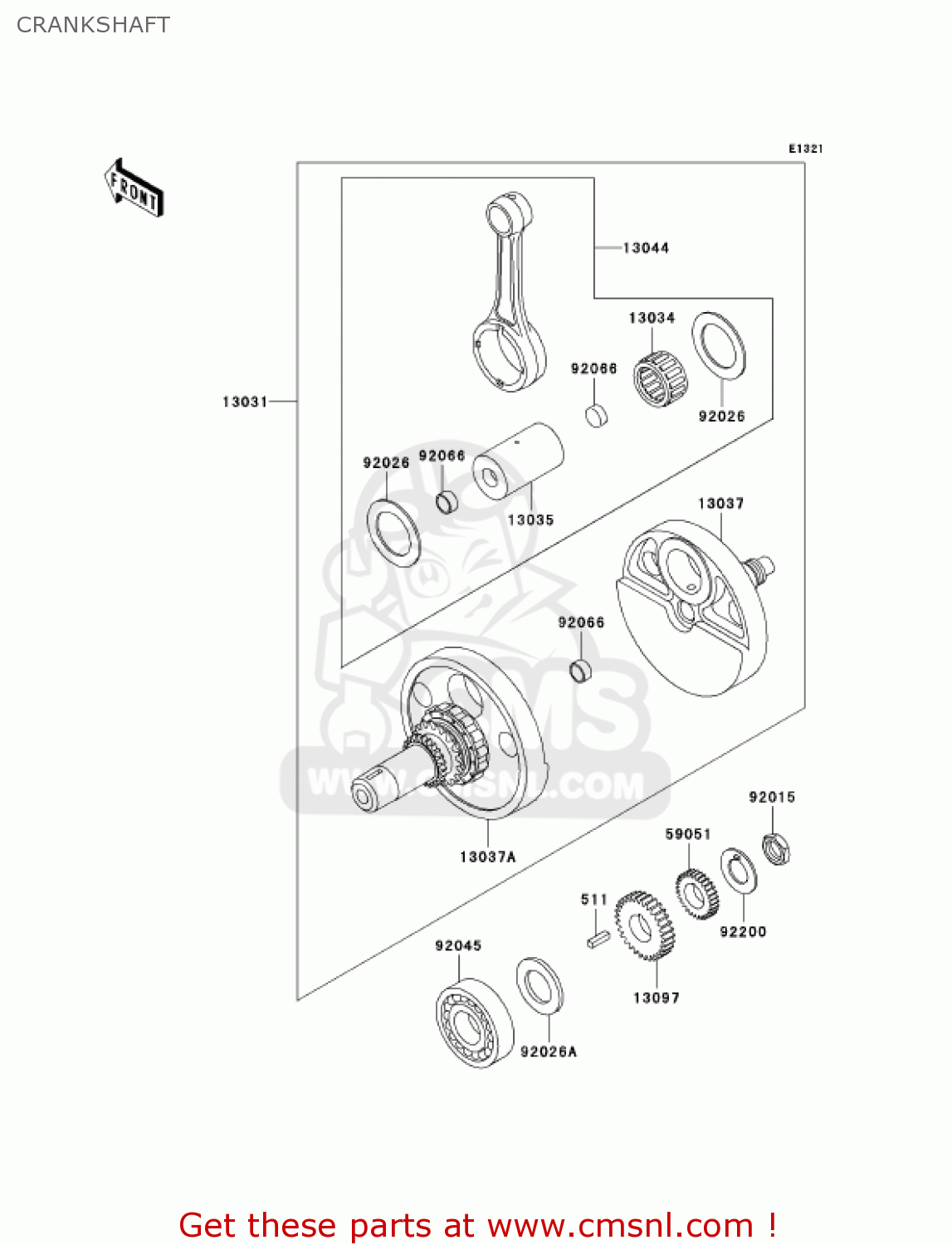

Crankshaft diagram KL650A15 KLR650 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

511

511A0520
ref: 511

KEY-SUNK

€ 1.50

13031

130311396
ref: 13031

CRANKSHAFT-COMP

€ 1,272.50

13034

130341084
ref: 13034

BEARING-BIG END

€ 67.00

13035

130351066
ref: 13035

PIN-CRANK

€ 61.50

13037

130371516
ref: 13037

CRANKSHAFT,RH

€ 613.50

13037A

130375088
ref: 13037A

CRANKSHAFT,LH

€ 643.00

13044

130445073
ref: 13044

SET-CONNECTING ROD

€ 270.50

13097

130971333
ref: 13097

GEAR-PRIMARY SPUR,33T

€ 54.00

59051

590511145
ref: 59051

GEAR-SPUR,29T

€ 41.50

92015

920151890
ref: 92015

NUT,22MM

€ 9.50

92026

920261279
ref: 92026

SPACER,40X60X1.5

€ 13.50

92026A

920261280
ref: 92026A

SPACER,30X50X4

€ 12.50

92045

920451187
ref: 92045

BEARING-BALL,TM-SX08A

€ 122.00

92066

920661154
ref: 92066

PLUG

€ 3.00

92200

922001157
ref: 92200

WASHER,CLAW

€ 4.00
