GENERATOR

KL650A15 KLR650 2001 USA CALIFORNIA CANADA

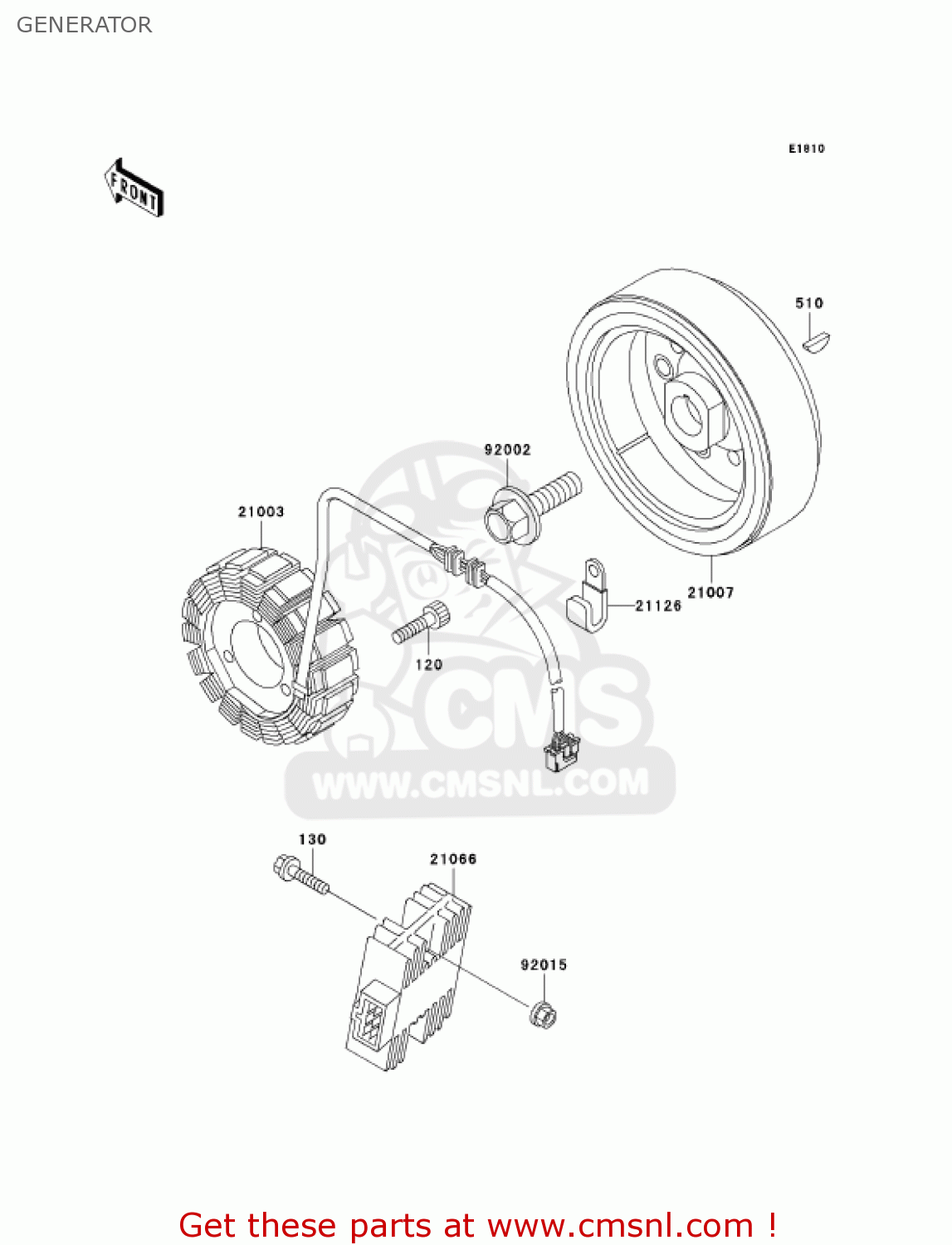

Generator diagram KL650A15 KLR650 2001 USA CALIFORNIA CANADA

GENERATOR KL650A15 KLR650 2001 USA CALIFORNIA CANADA

GENERATOR KL650A15 KLR650 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0628
ref: 120

BOLT,ALLEN,6X28

€ 3.00

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

510

510A4200
ref: 510

KEY-WOODRUFF

€ 1.50

21003

210031170
ref: 21003

STATOR

€ 498.50

21007

210071283
ref: 21007

ROTOR

€ 602.00

21066

210661038
ref: 21066

REGULATOR-VOLTAGE

€ 176.50

21126

21126008
ref: 21126

CLAMP,WIRING HARNESS

€ 3.00

92002

920021693
ref: 92002

BOLT

€ 14.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50
