BRAKE PEDAL

KL650A15 KLR650 2001 USA CALIFORNIA CANADA

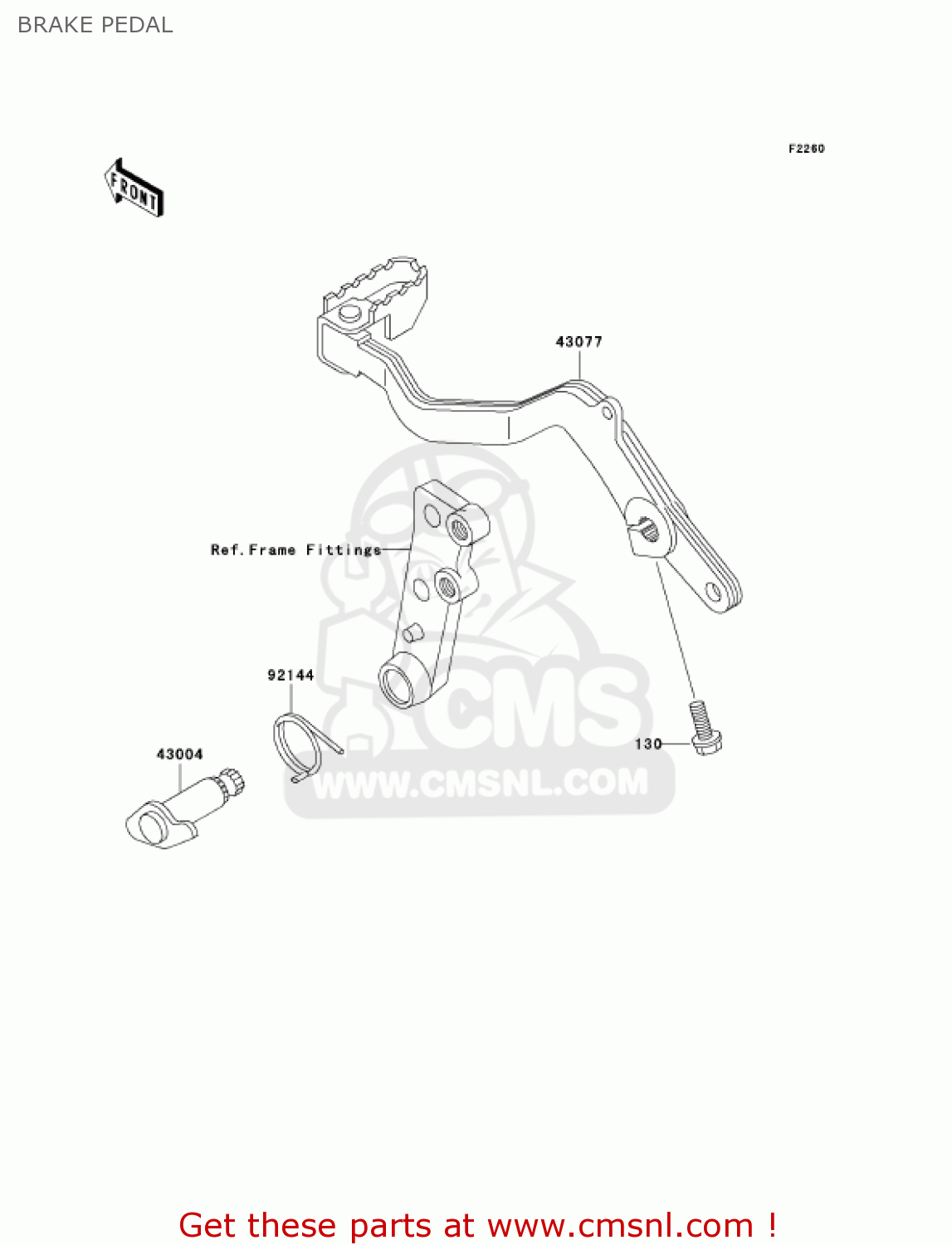

Brake pedal diagram KL650A15 KLR650 2001 USA CALIFORNIA CANADA

BRAKE PEDAL KL650A15 KLR650 2001 USA CALIFORNIA CANADA

BRAKE PEDAL KL650A15 KLR650 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130H0622

130H0622
ref: 130H0622

BOLT-FLANGED

€ 1.00

43004

430041120
ref: 43004

SHAFT-BRAKE

€ 27.00

43077

430771065
ref: 43077

LEVER-ASSY-BRAKE,PEDA

€ 103.50

92144

921441082
ref: 92144

SPRING,BRAKE PEDAL RE

€ 5.00
