WATER PUMP

KL650A13 KLR650 1999 USA CALIFORNIA CANADA

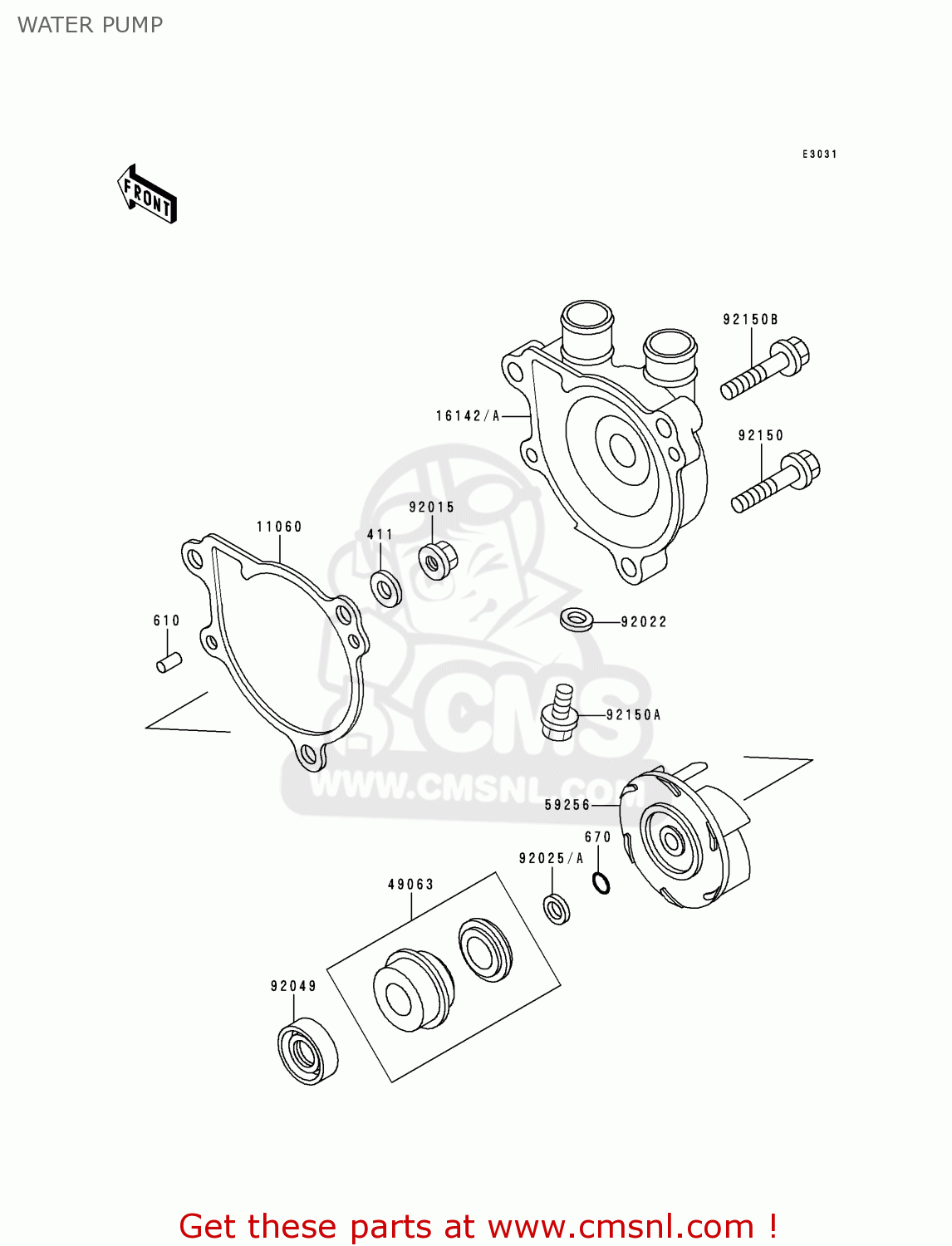

Water pump diagram KL650A13 KLR650 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

11060

110601114
ref: 11060

GASKET,WATER PUMP COV (NAS)

€ 5.00

16142A

161421097
ref: 16142A

COVER-PUMP

€ 93.50

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

59256

592561055
ref: 59256

IMPELLER

€ 20.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92025

920251503
ref: 92025

SHIM,T=0.8

€ 2.50

92049

920491157
ref: 92049

SEAL-OIL,SC10227

€ 6.50

92150

921501021
ref: 92150

BOLT,6X30

€ 2.50

92150A

921501966
ref: 92150A

BOLT

€ 2.50

92150B

921501967
ref: 92150B

BOLT

€ 2.50

WATER PUMP

all assemblies
