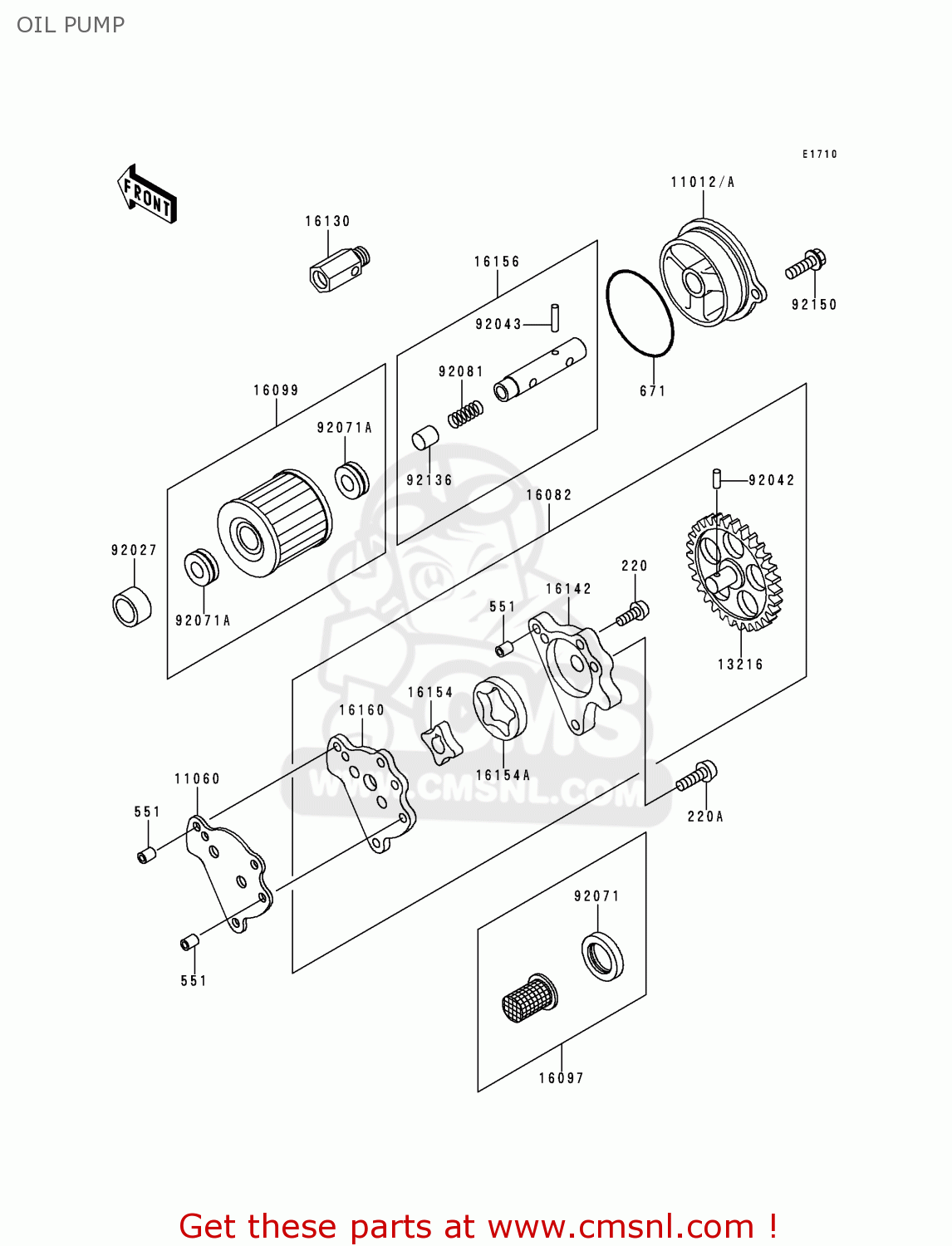

OIL PUMP

ref

part #

description

quantity

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

220A

220B0625
ref: 220A

SCREW-PAN HEAD,6X25

€ 1.50

551

551A0608
ref: 551

PIN,DOWEL,6X8

€ 2.50

671

671B2555
ref: 671

O RING,55MM

€ 4.00

11012A

110121695
ref: 11012A

CAP,OIL FILTER

€ 49.50

11060

110601115
ref: 11060

GASKET,OIL PUMP (NAS)

€ 3.00

13216

132161110
ref: 13216

GEAR-COMP,OIL PUMP

€ 117.50

16082

160821088
ref: 16082

PUMP-ASSY-OIL

€ 152.00

16097

160971001
ref: 16097

STRAINER ASSY,OIL

€ 5.00

16099

16099004
ref: 16099

FILTER, OIL

€ 5.50

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

161421078
ref: 16142

COVER-PUMP

€ 26.50

16154

161541069
ref: 16154

ROTOR-PUMP,INNER

€ 11.50

16154A

161541070
ref: 16154A

ROTOR-PUMP,OUTER

€ 15.00

16156

16156002
ref: 16156

PISTON-ASSY,VALVE,BY-

€ 15.50

16160

161601137
ref: 16160

BODY

€ 25.00

92027

920271695
ref: 92027

COLLAR,13X20X9

€ 6.50

92042

92042041
ref: 92042

PIN,DOWEL

€ 4.50

92043

92043123
ref: 92043

SPRING PIN

€ 3.00

92071

92071100
ref: 92071

GROMMET OIL STRAINER

€ 3.50

92071A

92071101
ref: 92071A

GROMMET, OIL FILTER

€ 3.50

92081

92081043
ref: 92081

SPRING, PISTON

€ 3.50

92136

92136002
ref: 92136

PISTON

€ 3.00

92150

921501010
ref: 92150

BOLT,6X20

€ 2.00
