FRONT FORK

KL650A13 KLR650 1999 USA CALIFORNIA CANADA

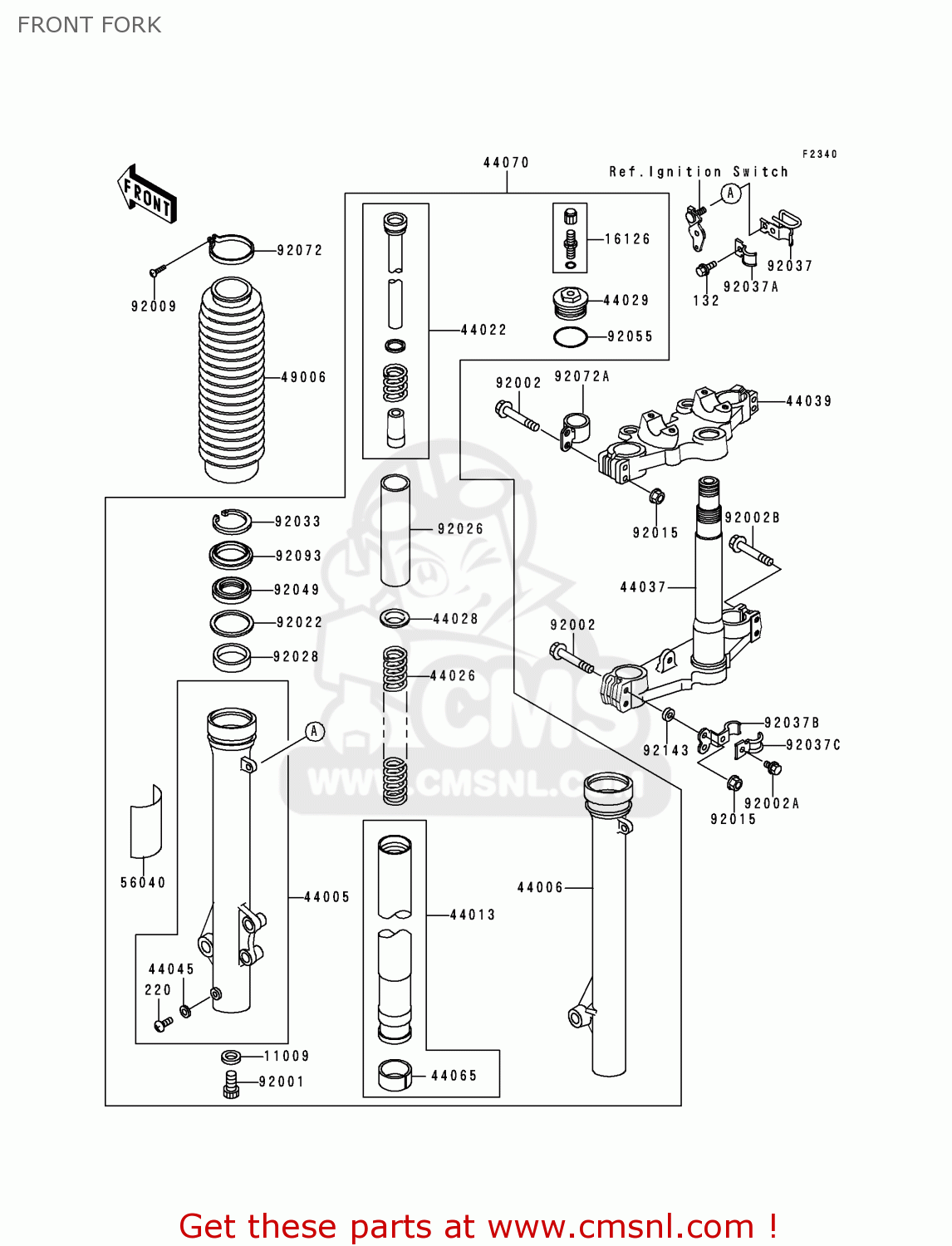

Front fork diagram KL650A13 KLR650 1999 USA CALIFORNIA CANADA

FRONT FORK KL650A13 KLR650 1999 USA CALIFORNIA CANADA
FRONT FORK KL650A13 KLR650 1999 USA CALIFORNIA CANADA
FRONT FORK KL650A13 KLR650 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 22.00
44005
440051335
ref: 44005
FORK OUTER PIPE,LH
440051335
€ 142.00
44006
440061333
ref: 44006
FORK OUTER PIPE,RH
440061333
€ 142.00
44013
440131264
ref: 44013
PIPE-FORK INNER
440131264
€ 208.50
44022
440221211
ref: 44022
CYLINDER-FORK
440221211
€ 149.00
44026
440261369
ref: 44026
SPRING-FRONT FORK
440261369
€ 52.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
440281003
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
440291042
€ 51.50
44037
440371207
ref: 44037
HOLDER-FORK UNDER
440371207
€ 449.00
44039
440391160
ref: 44039
HOLDER-FORK UPPER
440391160
€ 248.00
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
44070
440705141
ref: 44070
DAMPER ASSEMBLY
€ 759.50
49006
490061222SR
ref: 49006
BOOT,FORK,STEEL GRAY
490061222SR
€ 58.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
560401120
€ 3.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
920011309
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
920021158
€ 6.00
92002A
920021982
ref: 92002A
BOLT
€ 3.00
92002B
920021983
ref: 92002B
BOLT
€ 10.50
92009
920091348
ref: 92009
SCREW
920091348
€ 3.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92022
920221242
ref: 92022
WASHER
€ 5.50
92026
920261294
ref: 92026
SPACER
920261294
€ 30.00
92028
920281125
ref: 92028
BUSHING
920281125
€ 17.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
920371897
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
920371898
€ 5.50
92037B
920371913
ref: 92037B
CLAMP
920371913
€ 14.00
92037C
920371931
ref: 92037C
CLAMP
€ 7.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
920491180
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
920551050
€ 4.00
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92072A
920721225
ref: 92072A
BAND,CABLE
€ 13.00
92093
920931166
ref: 92093
SEAL,FRONT FORK
920931166
€ 12.50
92143
921431134
ref: 92143
COLLAR
921431134
€ 8.00
