RADIATOR

KL650A13 KLR650 1999 USA CALIFORNIA CANADA

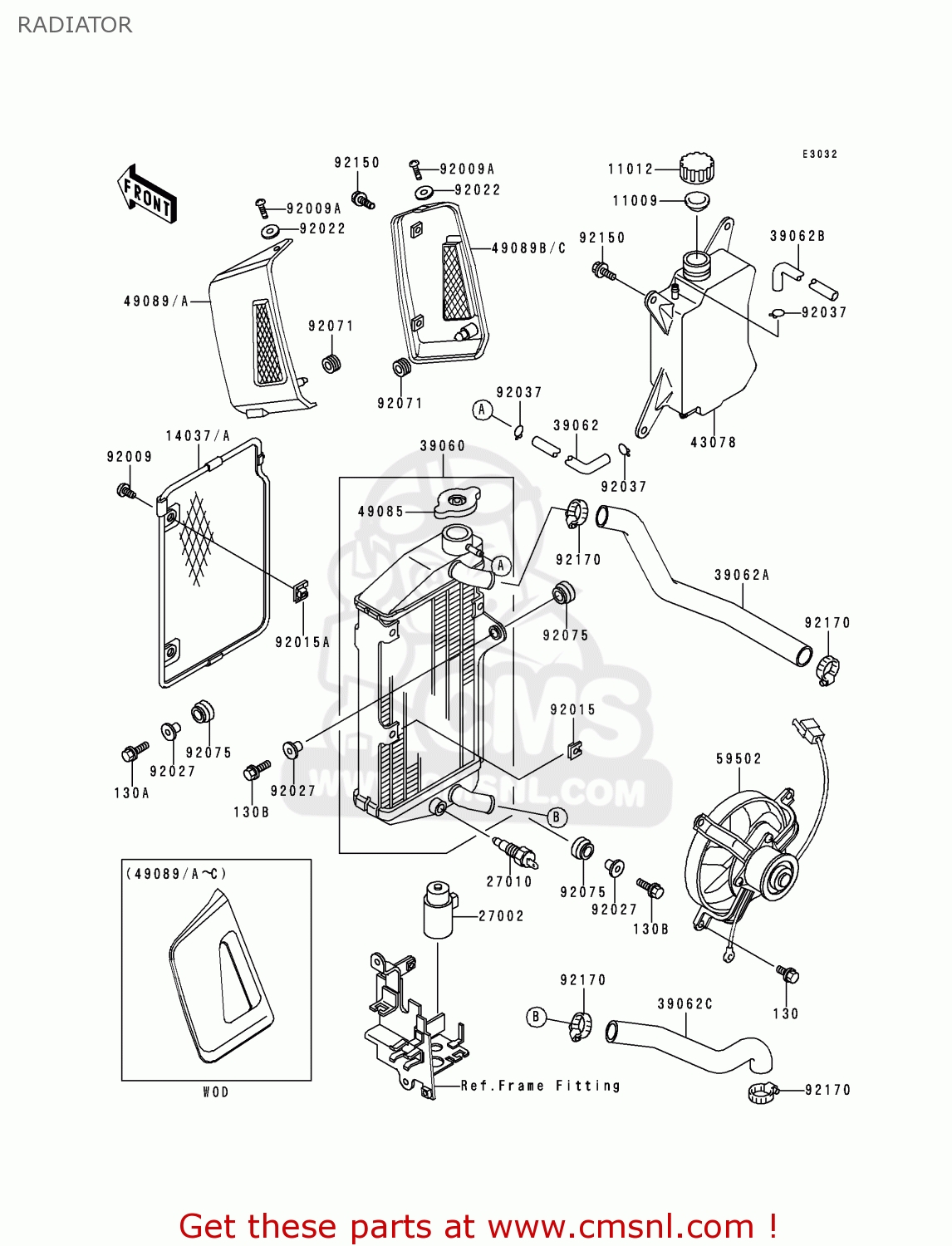

Radiator diagram KL650A13 KLR650 1999 USA CALIFORNIA CANADA

RADIATOR KL650A13 KLR650 1999 USA CALIFORNIA CANADA
RADIATOR KL650A13 KLR650 1999 USA CALIFORNIA CANADA
RADIATOR KL650A13 KLR650 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
130J0625
€ 2.00
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037A
140371208
ref: 14037A
SCREEN
140371208
€ 69.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
39060
390601074
ref: 39060
RADIATOR
390601074
€ 690.50
39062
390621125
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621217
ref: 39062A
HOSE-COOLING,HEAD-RAD
390621217
€ 35.00
39062B
390621220
ref: 39062B
HOSE-COOLING,RESERVOI
390621220
€ 17.50
39062C
390621243
ref: 39062C
HOSE-COOLING,RADIATOR
390621243
€ 23.50
43078
430781083
ref: 43078
RESERVOIR
430781083
€ 45.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
49089
49089107359
ref: 49089
SHROUD-ENGINE,LH, F.B
€ 68.00
49089B
49089107459
ref: 49089B
SHROUD-ENGINE,RH,F.B
€ 68.00
59502
595021082
ref: 59502
FAN-ASSY
595021082
€ 483.00
92009
920091480
ref: 92009
SCREW
920091480
€ 2.00
92009A
920091653
ref: 92009A
SCREW
920091653
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
920271920
ref: 92027
COLLAR
920271920
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92075
920751352
ref: 92075
DAMPER,RADIATOR
920751352
€ 4.00
92150
921501506
ref: 92150
BOLT
921501506
€ 3.00
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
921701033
€ 10.50
