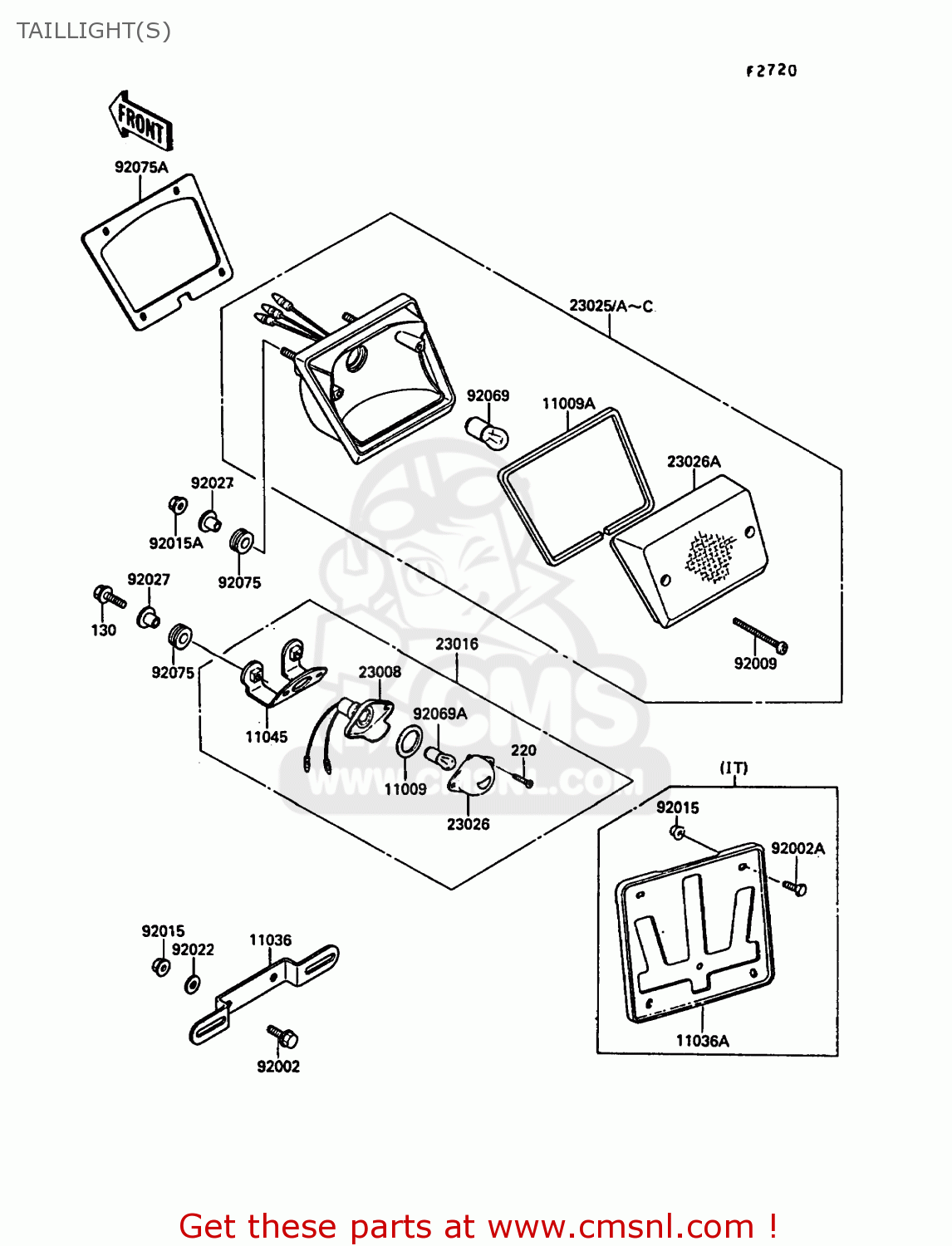

TAILLIGHT(S)

ref

part #

description

quantity

130

130D0625
ref: 130

BOLT-FLANGED

€ 0.50

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

11009

110091372
ref: 11009

GASKET,LICENSE PLATE (NAS)

€ 3.00

11009A

110091636
ref: 11009A

GASKET,TAIL LAMP LENS (NAS)

€ 10.00

11036

110361040
ref: 11036

BRACKET-A,LICENSE PLT

€ 13.00

11036A

110361820
ref: 11036A
IT

BRACKET-A,LICENSE PLA

€ 13.50

11045

110451927
ref: 11045

BRACKET,LICENSE PLATE

€ 15.00

23008

230081205
ref: 23008

SOCKET-ASSY,LICENSE P

€ 8.00

23016

230161087
ref: 23016

LAMP-ASSY,LICENSE PLA

€ 52.50

23025

2302511626B
ref: 23025
AREUFGFRGRITSDSTUK

LAMP-TAIL,S.RED

€ 36.50

23025B

2302511626F
ref: 23025B
EUFRGRITNRSP

LAMP-TAIL,P.WHITE

€ 36.50

23025C

2302511626K
ref: 23025C
AREUFGGRITSTUK

LAMP-TAIL,B.BLUE

€ 36.50

23026

230261054
ref: 23026

LENS,LICENSE PLATE LA

€ 7.00

23026A

230261086
ref: 23026A

LENS,TAIL LAMP

€ 26.50

92002

920021124
ref: 92002

BOLT,6X16

€ 2.50

92002A

920021132
ref: 92002A
IT

BOLT,6X12

€ 2.50

92009

920091069
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92015

920151193
ref: 92015
AREUFGFRGRNRSDSPSTUK

NUT,FLANGED,6MM

€ 0.50

92015

920151193
ref: 92015
IT

NUT,FLANGED,6MM

€ 0.50

92015A

920151367
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92069A

920691055
ref: 92069A

BULB,12V 5W

€ 4.00

92075

920751690
ref: 92075

DAMPER,10X24X12

€ 3.00

92075A

920751889
ref: 92075A

DAMPER,TAIL LAMP

€ 8.00
