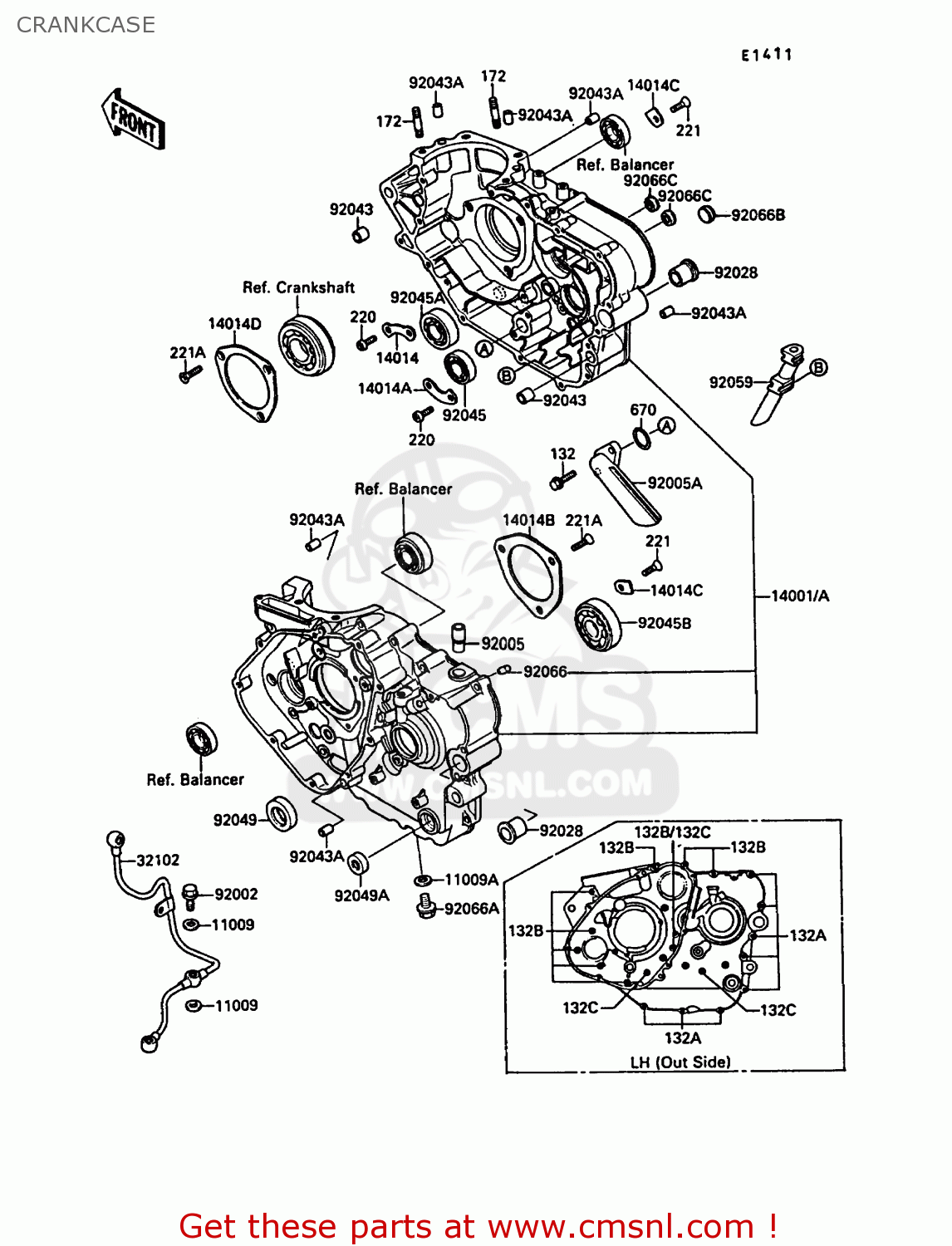

CRANKCASE

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132J0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0650
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

172

172G0822
ref: 172

BOLT-STUD,8X22

€ 1.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

221

221B0612
ref: 221

SCREW-CNTSNK HD,6X12

€ 1.50

221A

221B0616
ref: 221A

SCREW-CNTSNK HD,6X16

€ 0.50

670

670D2018
ref: 670

O RING,18MM

€ 1.50

11009

110091105
ref: 11009

GASKET,10X14.5X1.5 (NAS)

€ 4.00

11009A

92065097
ref: 11009A

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

14001

140015229
ref: 14001

SET-CRANKCASE

€ 853.50

14014

14014037
ref: 14014

PLATE-POSITION

€ 2.50

14014A

140141015
ref: 14014A

PLATE-POSITION

€ 3.50

14014B

140141051
ref: 14014B

PLATE-POSITION

€ 26.00

14014C

140141057
ref: 14014C

PLATE-POSITION

€ 2.50

14014D

140141083
ref: 14014D

PLATE-POSITION

€ 26.00

32102

321021353
ref: 32102

PIPE

€ 84.50

92002

920021170
ref: 92002

BOLT,BANJO,10X25

€ 6.50

92005

14067006
ref: 92005

BREATHER JOINT

€ 14.00

92005A

920051152
ref: 92005A

FITTING

€ 22.00

92028

920281261
ref: 92028

BUSHING,SWING ARM

€ 12.00

92043

92042032
ref: 92043

PIN,DOWEL,14MM

€ 3.00

92043A

920431263
ref: 92043A

PIN,DOWEL,6.2X8X14

€ 0.50

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00

92045A

920451105
ref: 92045A

BEARING-BALL,TMB205

€ 25.00

92045B

920451127
ref: 92045B

BEARING-BALL,TM-SX059

€ 47.00

92049

920491159
ref: 92049

SEAL-OIL,TC32457

€ 8.00

92049A

92050082
ref: 92049A

OIL SEAL,CHANGE SHAFT

€ 5.50

92059

920591833
ref: 92059

TUBE

€ 10.00

92066

920661012
ref: 92066

PLUG,OIL LINE,7.2X8

€ 4.00

92066A

920661174
ref: 92066A

PLUG,OIL DRAIN,12X15

€ 4.00

92066B

920661264
ref: 92066B

PLUG,RCA207

€ 5.50

92066C

920661282
ref: 92066C

PLUG

€ 4.00
