SEAT

KL650A1 KLR650 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

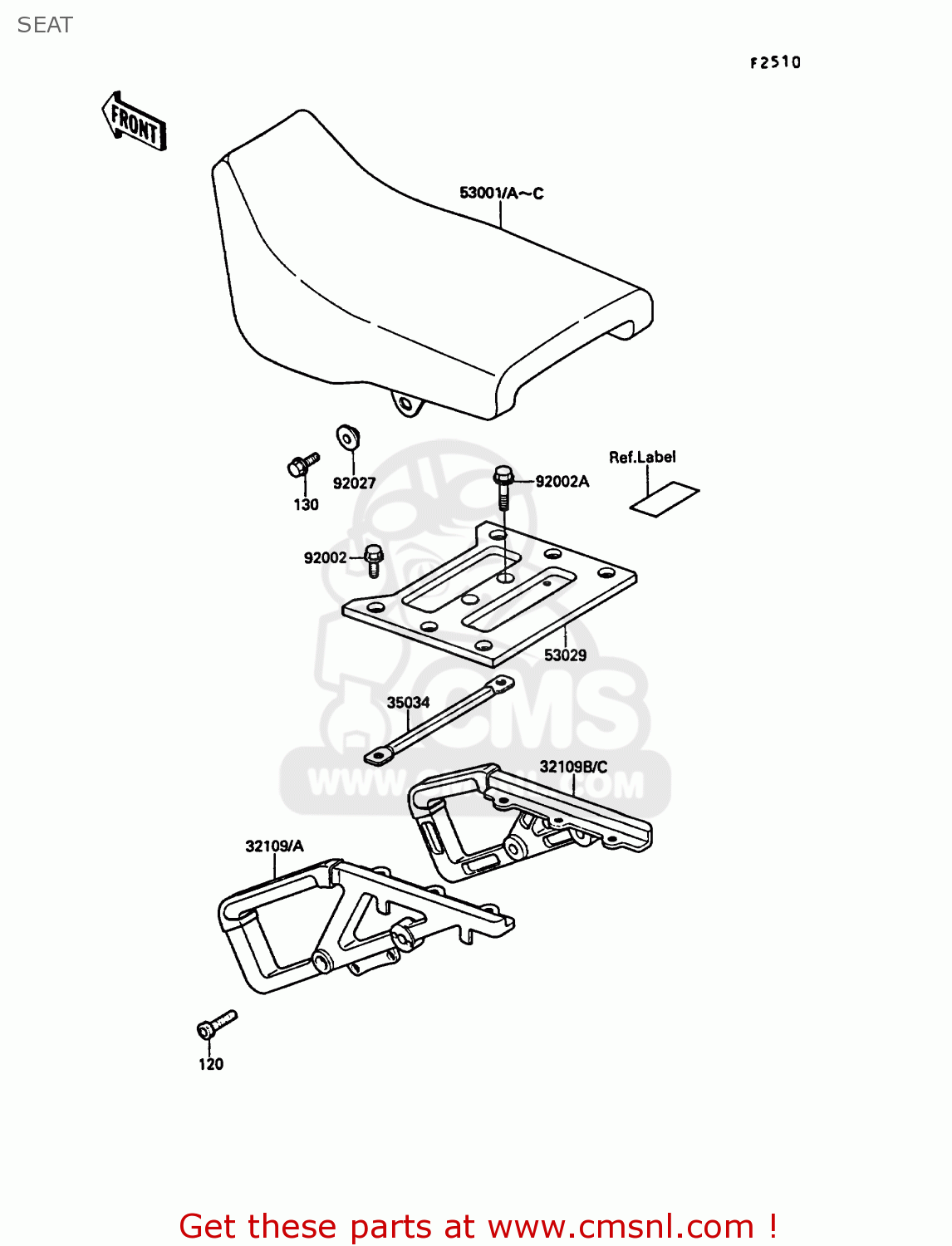

Seat diagram KL650A1 KLR650 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

120

120P0835
ref: 120

BOLT-SOCKET,8X35

€ 2.00

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

32109A

321091152X3
ref: 32109A

GRIP-FRAME,LH,SILVER

€ 81.50

32109C

321091153X3
ref: 32109C

GRIP-FRAME,RH,SILVER

€ 81.50

35034

350341207
ref: 35034

REINFORCE

€ 15.00

53001B

530011492NC
ref: 53001B
EUGRITNRSP

SEAT-ASSY,DUAL,RED

€ 332.50

53001C

530011492NE
ref: 53001C
AREUFGFRGRITSDSTUK

SEAT-ASSY,DUAL,BLUE

€ 238.50

53029

530291081
ref: 53029

CARRIER

€ 114.50

92002

920021933
ref: 92002

BOLT

€ 3.00

92002A

920021989
ref: 92002A

BOLT

€ 3.50

92027

920271794
ref: 92027

COLLAR

€ 2.50

SEAT

all assemblies
