MUFFLER(S)

KL650A1 KLR650 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

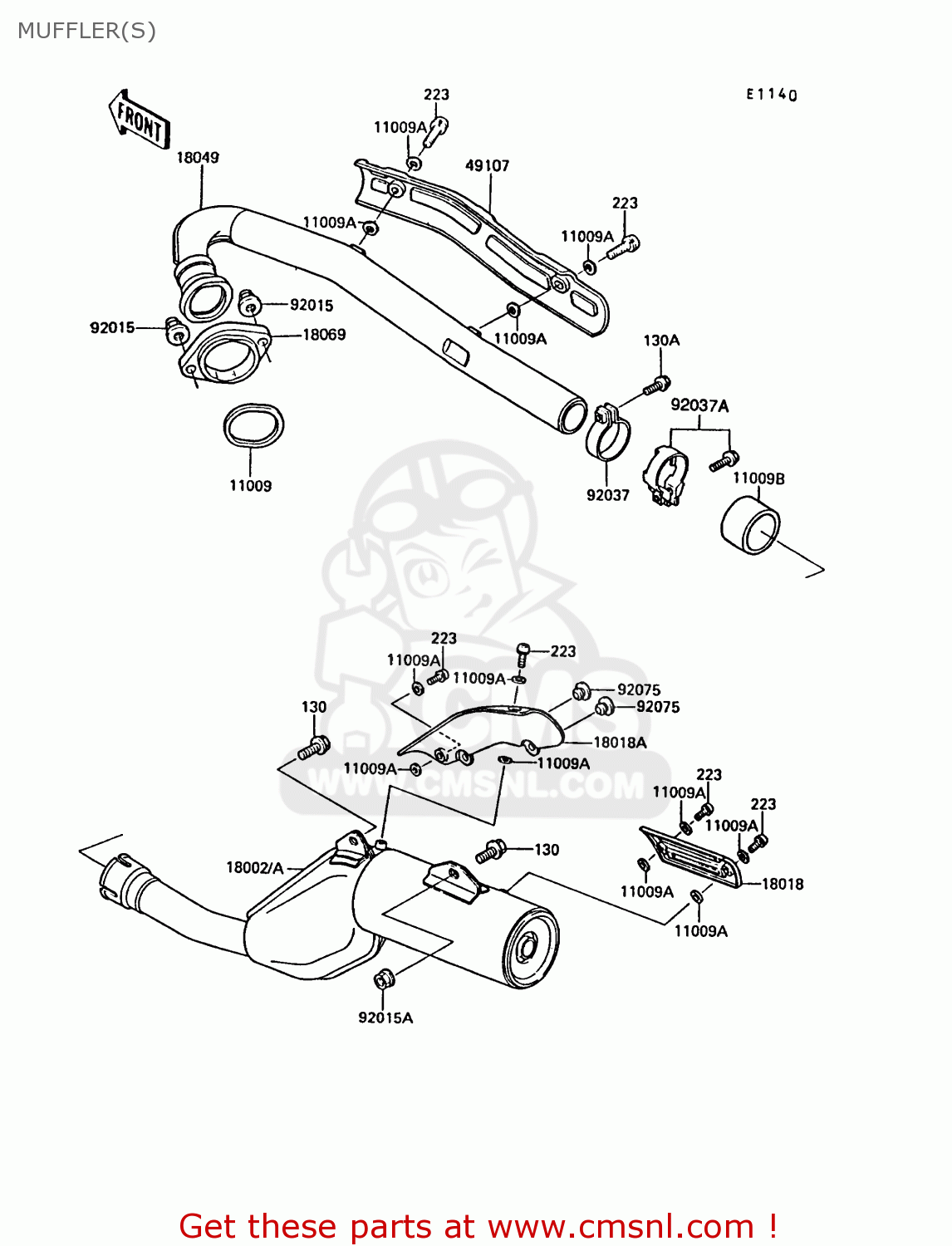

Muffler(s) diagram KL650A1 KLR650 1987 EUROPE FR UK AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

130A

130J0820
ref: 130A

BOLT-FLANGED,8X20

€ 0.50

223

223C0610
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

11009

110091374
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 8.50

11009A

110091451
ref: 11009A

GASKET,MUFFLER COVER (MCA)

€ 2.50

11009B

110091666
ref: 11009B

GASKET,EXHAUST PIPE C (NAS)

€ 20.50

18002

180021858
ref: 18002

BODY-COMP-MUFFLER

€ 519.50

18018

180181053
ref: 18018

PLATE-HEAT GUARD

€ 12.00

18018A

180181072
ref: 18018A

PLATE-HEAT GUARD

€ 19.50

18049

180491460
ref: 18049

PIPE-EXHAUST

€ 197.50

18069

180691063
ref: 18069

HOLDER-EXHAUST PIPE

€ 21.50

49107

491071073
ref: 49107

COVER-EXHAUST PIPE,FR

€ 50.00

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92015A

920151402
ref: 92015A

NUT,8MM

€ 3.00

92037

920371888
ref: 92037

CLAMP,43MM

€ 12.50

92037A

920371910
ref: 92037A

CLAMP

€ 19.50

92075

92075005
ref: 92075

DAMPER

€ 2.50
