TRANSMISSION
KL600A3 KLR600 1988 ITALY

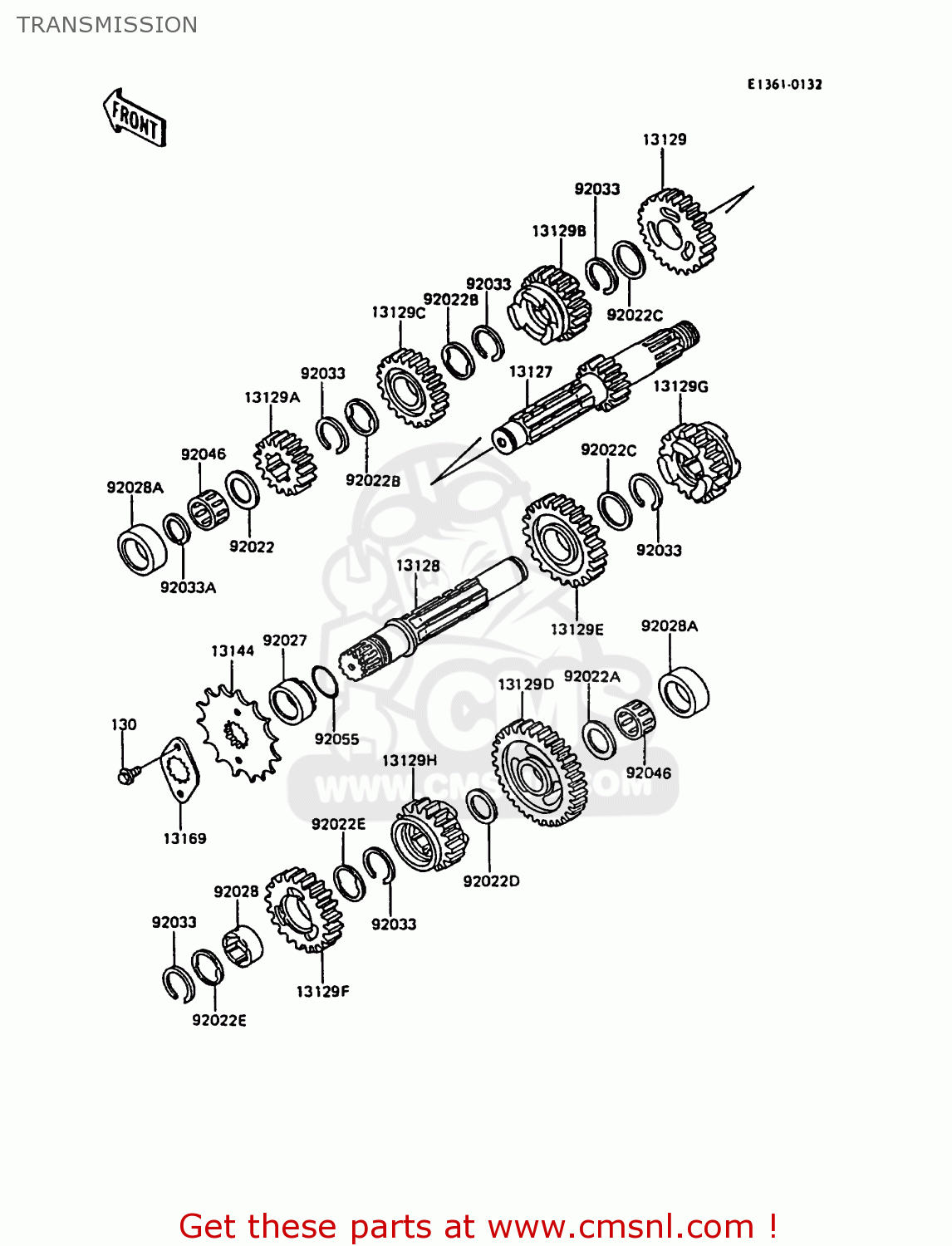

Transmission diagram KL600A3 KLR600 1988 ITALY
TRANSMISSION KL600A3 KLR600 1988 ITALY
×
prices are in EUR
ref
part #
description
quantity
130
130G0608
ref: 130
BOLT-FLANGED
€ 0.50
13127
131271107
ref: 13127
SHAFT-TRANSMISSION IN
€ 161.00
13128
131281104
ref: 13128
SHAFT-TRANSMISSION OU
€ 137.50
13129
131291410
ref: 13129
GEAR,INPUT TOP,24T
€ 94.50
13129A
131291518
ref: 13129A
GEAR,INPUT 2ND,17T
€ 55.50
13129B
131291519
ref: 13129B
GEAR,INPUT 3RD,22T
€ 53.50
13129C
131291520
ref: 13129C
GEAR,INPUT 4TH,22T
€ 48.50
13129D
131291522
ref: 13129D
GEAR,OUTPUT LOW,39T
€ 65.00
13129E
131291523
ref: 13129E
GEAR,OUTPUT 2ND,26T
€ 39.00
13129F
131291524
ref: 13129F
GEAR,OUTPUT 3RD,26T
€ 48.50
13129G
131291525
ref: 13129G
GEAR,OUTPUT 4TH,21T
€ 60.00
13129H
131291575
ref: 13129H
GEAR,OUTPUT TOP,19T
€ 99.50
13144
131441103
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.00
13169
131691109
ref: 13169
PLATE,ENGINE SPROCKET
€ 5.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
920221479
ref: 92022A
WASHER,20.3X29X0.5
€ 3.00
92022B
920221482
ref: 92022B
WASHER,TOOTHED,25.3X2
€ 2.50
92022C
92022159
ref: 92022C
WASHER-THRUST,25MM
€ 5.50
92022D
92022252
ref: 92022D
WASHER
€ 4.00
92022E
92024038
ref: 92022E
WASHER-LOCK
€ 4.00
92027
920271800
ref: 92027
COLLAR
€ 19.50
92028
920281299
ref: 92028
BUSHING,OUTPUT 3RD GE
€ 10.50
92028A
92028131
ref: 92028A
BUSHING
€ 28.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92046
92046036
ref: 92046
BEARING,KT202614
€ 9.00
92055
920551293
ref: 92055
RING-O, 21.5MM
€ 3.00
