TAILLIGHT(S)
KL600A3 KLR600 1988 ITALY

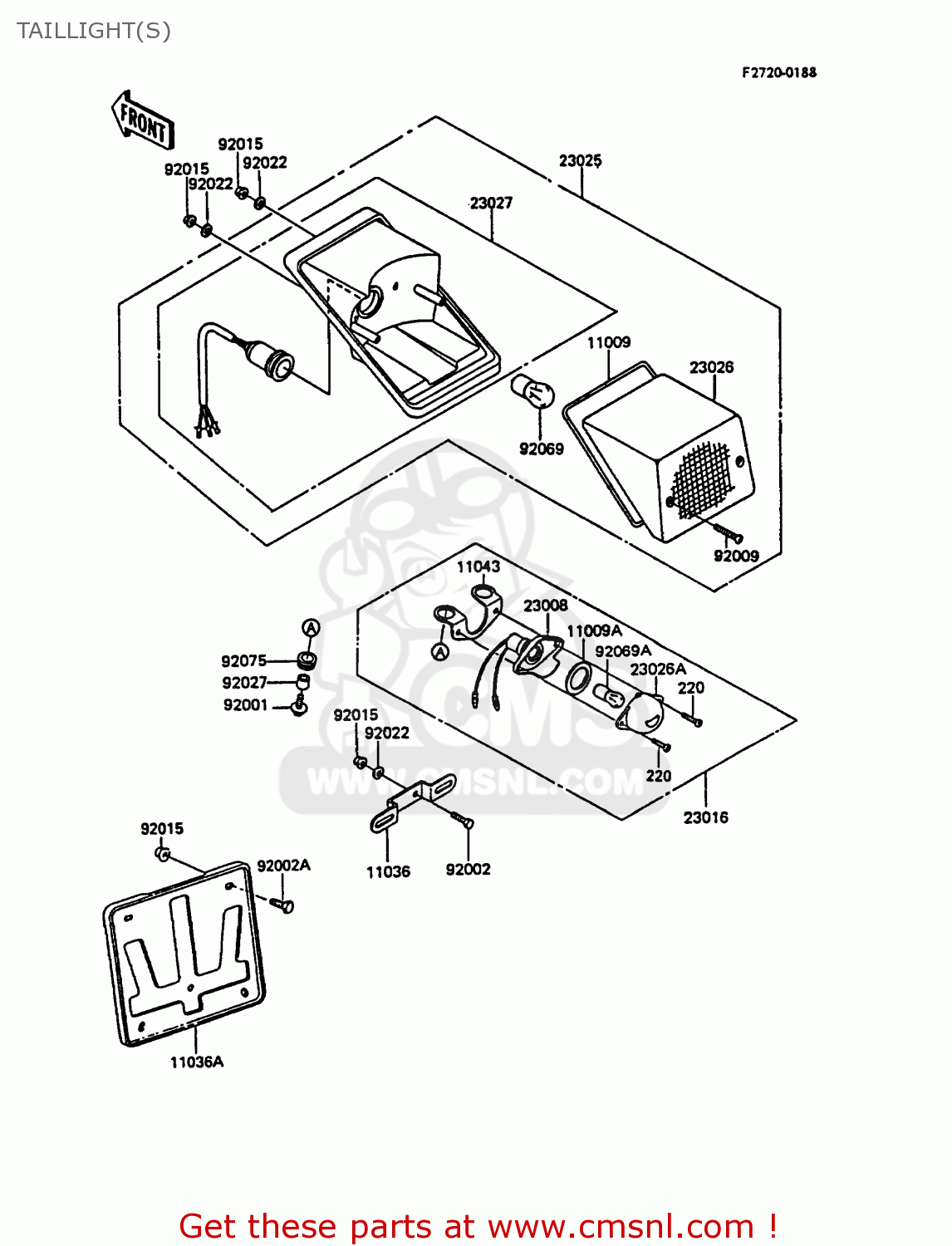

Taillight(s) diagram KL600A3 KLR600 1988 ITALY
TAILLIGHT(S) KL600A3 KLR600 1988 ITALY
×
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091371
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 9.00
11009A
110091372
ref: 11009A
GASKET,LICENSE PLATE (NAS)
€ 3.00
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
€ 13.00
11036A
110361820
ref: 11036A
BRACKET-A,LICENSE PLA
€ 13.50
11043
110431377
ref: 11043
BRACKET,LICENSE PLATE
€ 7.50
23008
230081205
ref: 23008
SOCKET-ASSY,LICENSE P
€ 8.00
23016
230161052
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 20.50
23025
230251104
ref: 23025
LAMP-TAIL
€ 72.50
23026
230261053
ref: 23026
LENS,TAIL LAMP
€ 58.50
23026A
230261054
ref: 23026A
LENS,LICENSE PLATE LA
€ 7.00
23027
230271053
ref: 23027
BODY-COMP-TAIL LAMP
€ 72.50
92001
920011774
ref: 92001
BOLT,6X22
€ 2.00
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021132
ref: 92002A
BOLT,6X12
€ 2.50
92009
920091297
ref: 92009
SCREW,TAPPING,4X20
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
