CARBURETOR
KL600A3 KLR600 1988 ITALY

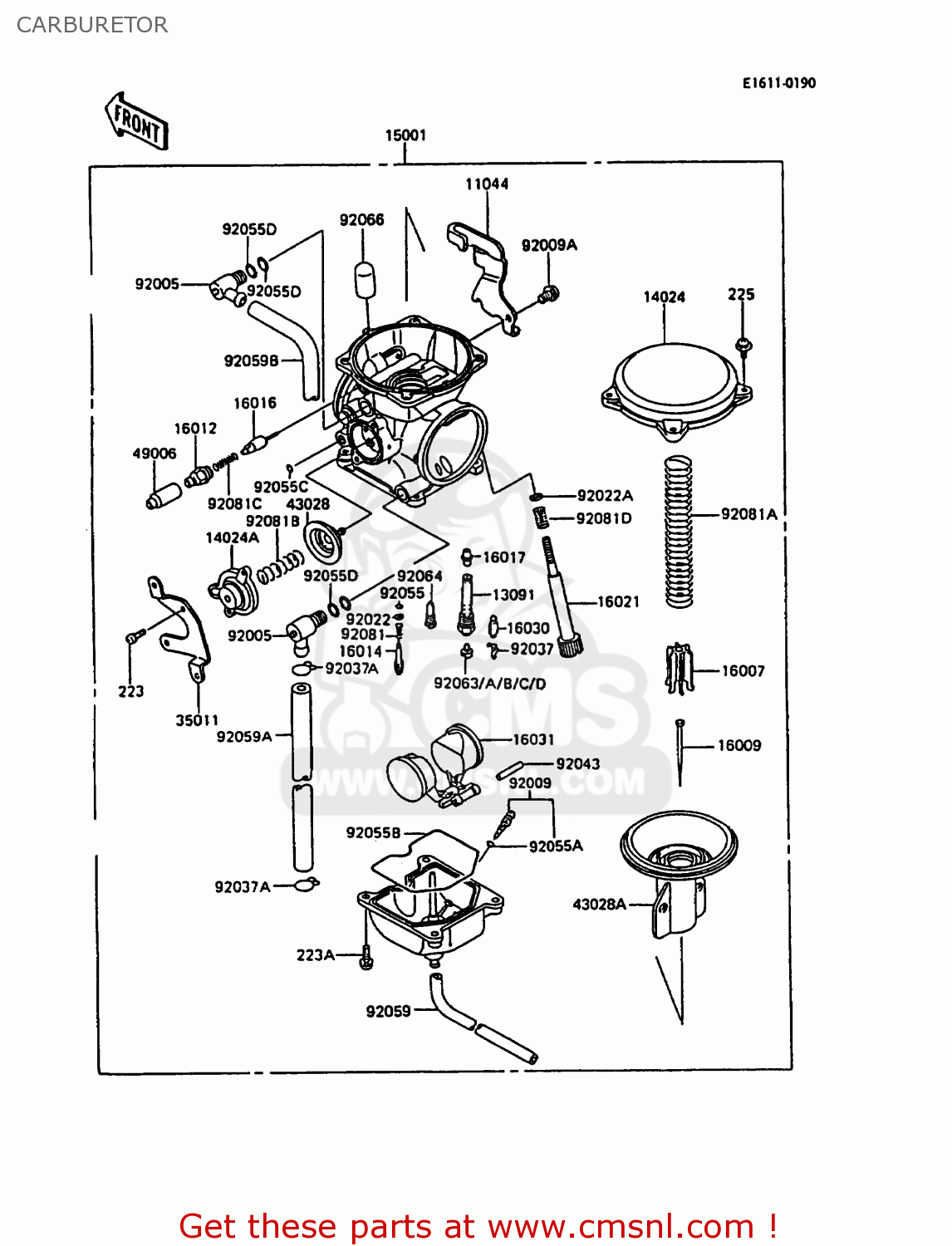

Carburetor diagram KL600A3 KLR600 1988 ITALY
CARBURETOR KL600A3 KLR600 1988 ITALY
×
prices are in EUR
ref
part #
description
quantity
11044
110441353
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
13091
130911312
ref: 13091
HOLDER,NEEDLE JET
€ 15.50
14024
140251890
ref: 14024
COVER,MIXING CHAMBER
€ 58.50
14024A
140251903
ref: 14024A
COVER,AIR CUT VALVE
€ 43.00
15001
150011142
ref: 15001
CARBURETOR-ASSY
€ 503.00
16007
160071113
ref: 16007
SEAT-SPRING,DIAPHRAGM
€ 13.50
16009
160091234
ref: 16009
NEEDLE-JET,N24B
€ 20.00
16012
160121055
ref: 16012
CAP-STARTER PLUNGER
€ 17.50
16014
160141053
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161057
ref: 16016
PLUNGER
€ 41.00
16017
160171253
ref: 16017
JET-NEEDLE
€ 36.50
16021
160211109
ref: 16021
SCREW-THROTTLE STOP
€ 31.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
35011
350111232
ref: 35011
STAY,AIR CUT VALVE
€ 25.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
43028A
430281062
ref: 43028A
DIAPHRAGM,VALVE
€ 175.00
49006
490061165
ref: 49006
BOOT,STARTER PLUNGER
€ 6.50
92005
920051120
ref: 92005
FITTING,L-TYPE
€ 18.50
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
920221587
ref: 92022A
WASHER,THROTTLE STOP
€ 3.00
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92037A
920371531
ref: 92037A
CLAMP,TUBE
€ 3.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92055C
920551245
ref: 92055C
RING-O
€ 3.50
92055D
920551246
ref: 92055D
RING-O
€ 3.00
92059
92059111
ref: 92059
HOSE,FUEL OVERFLOW
€ 17.50
92059A
920591463
ref: 92059A
TUBE,6.5X11.5X150
€ 20.00
92059B
920591465
ref: 92059B
TUBE,6.5X9.5X500
€ 20.50
92063
920631013
ref: 92063
MAIN JET,#140
€ 9.00
92063A
920631014
ref: 92063A
MAIN JET,#135
€ 9.50
92063B
920631015
ref: 92063B
MAIN JET,#138
€ 9.50
223
223C0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641108
ref: 92064
JET-PILOT,#40
€ 11.00
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811718
ref: 92081A
SPRING,DIAPHRAGM VALV
€ 18.50
92081B
920811719
ref: 92081B
SPRING,AIR CUT VALVE
€ 8.50
92081C
920811720
ref: 92081C
SPRING,PLUNGER
€ 7.00
92081D
920811721
ref: 92081D
SPRING,THROTTLE STOP
€ 9.00
