CYLINDER HEAD

KL600A3 KLR600 1988 ITALY

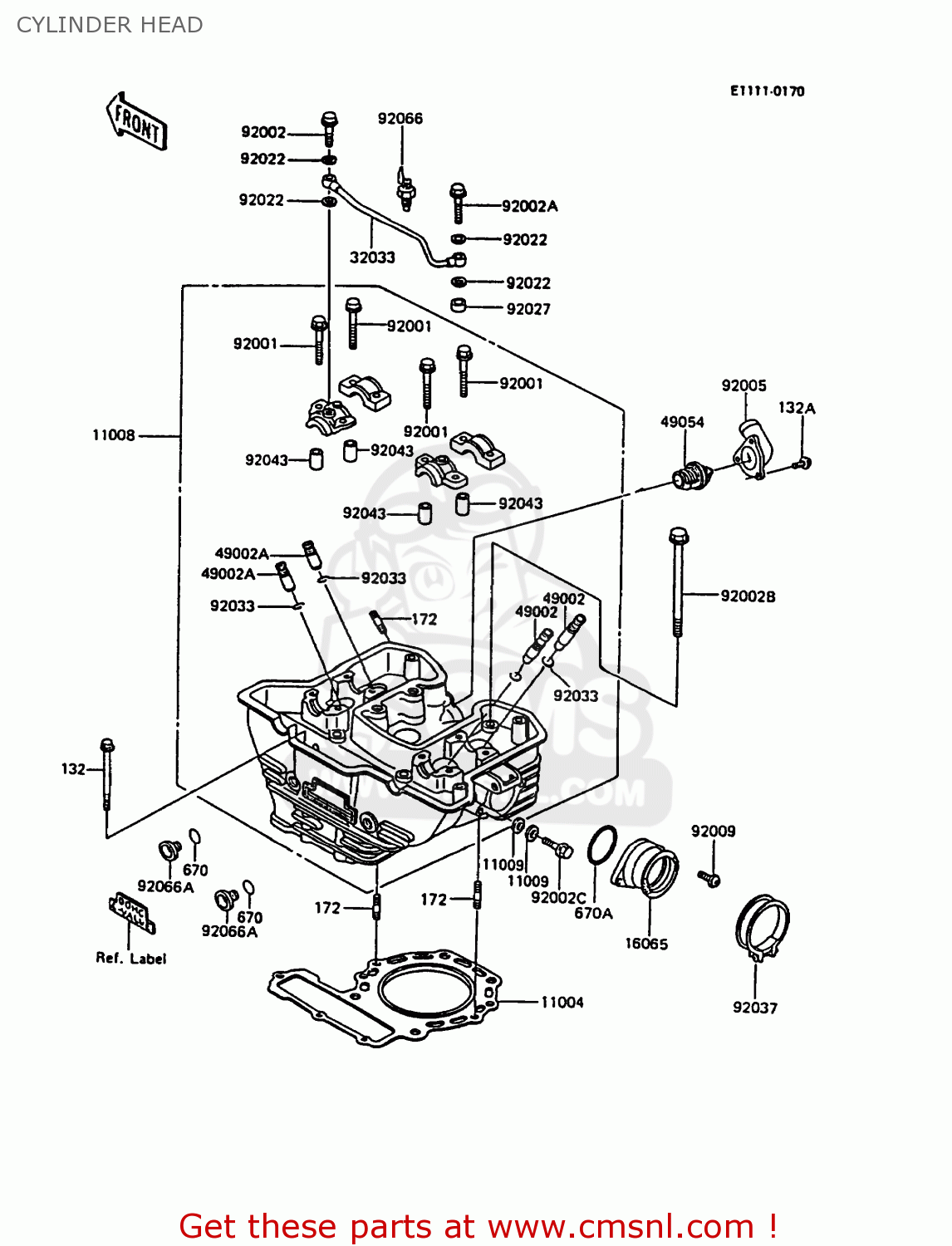

Cylinder head diagram KL600A3 KLR600 1988 ITALY

CYLINDER HEAD KL600A3 KLR600 1988 ITALY
CYLINDER HEAD KL600A3 KLR600 1988 ITALY
CYLINDER HEAD KL600A3 KLR600 1988 ITALY
prices are in EUR
ref
part #
description
quantity
132
132H0685
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
172
172G0822
ref: 172
BOLT-STUD,8X22
172G0822
€ 1.50
670
670B2015
ref: 670
O RING,15MM
670B2015
€ 1.00
670A
670D3048
ref: 670A
O RING,48MM
670D3048
€ 4.50
11004
110041123
ref: 11004
GASKET-HEAD (NAS)
110041123
€ 30.00
11008
110081157
ref: 11008
HEAD-COMP-CYLINDER
€ 782.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
16065
160651127
ref: 16065
HOLDER-CARBURETOR
160651127
€ 44.50
32033
320331409
ref: 32033
PIPE
320331409
€ 37.00
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
12013009
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
490021002
€ 16.00
49054
490541053
ref: 49054
THERMOSTAT
490541053
€ 39.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92002
920011855
ref: 92002
BOLT,BANJO,8X20
920011855
€ 5.50
92002A
920011856
ref: 92002A
BOLT,BANJO,8X30
€ 6.00
92002B
920011994
ref: 92002B
BOLT,10X185
920011994
€ 14.50
92002C
920021170
ref: 92002C
BOLT,BANJO,10X25
920021170
€ 6.50
92005
920051121
ref: 92005
FITTING
920051121
€ 25.00
92009
920091325
ref: 92009
SCREW,6X20
920091325
€ 2.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
920221488
€ 3.00
92027
920271736
ref: 92027
COLLAR,8.5X13X9
€ 2.50
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92037
920371486
ref: 92037
CLAMP,55MM
920371486
€ 5.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
920661118
€ 50.00
92066A
920661158
ref: 92066A
PLUG,CYLINDER HEAD
920661158
€ 4.00
