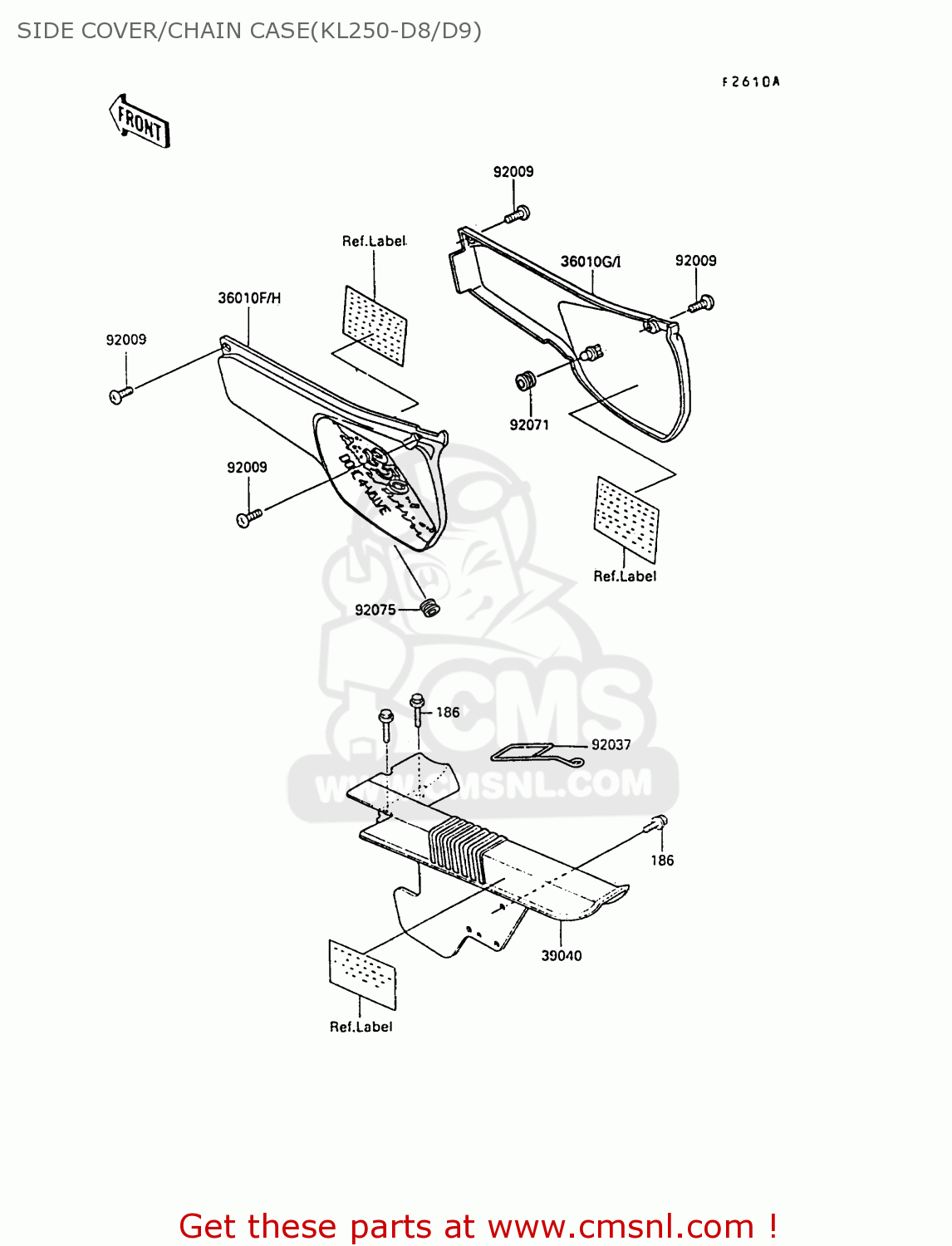

SIDE COVER/CHAIN CASE(KL250-D8/D9)

KL250D8 KLR250 1991 EUROPE UK FG GR SD

Side cover/chain case(kl250-d8/d9) diagram KL250D8 KLR250 1991 EUROPE UK FG GR SD

prices are in EUR

ref

part #

description

quantity

186

186C0618
ref: 186

BOLT-UPSET-WP

€ 2.50

36010F

3601054186F
ref: 36010F

COVER-SIDE,LH,P.WHITE

€ 74.00

36010G

3601054196F
ref: 36010G

COVER-SIDE,RH,P.WHITE

€ 79.50

36010H

3601054246C
ref: 36010H

COVER-SIDE,LH,EBONY

€ 82.00

36010I

3601054256C
ref: 36010I

COVER-SIDE,RH,EBONY

€ 85.00

39040

390401051
ref: 39040

COVER-ASSY-CHAIN CASE

€ 59.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92037

920371620
ref: 92037

CLAMP,HOSE

€ 6.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751067
ref: 92075

DAMPER,SIDE COVER

€ 3.00

SIDE COVER/CHAIN CASE(KL250-D8/D9)

all assemblies
