CRANKSHAFT
KL250D8 KLR250 1991 EUROPE UK FG GR SD

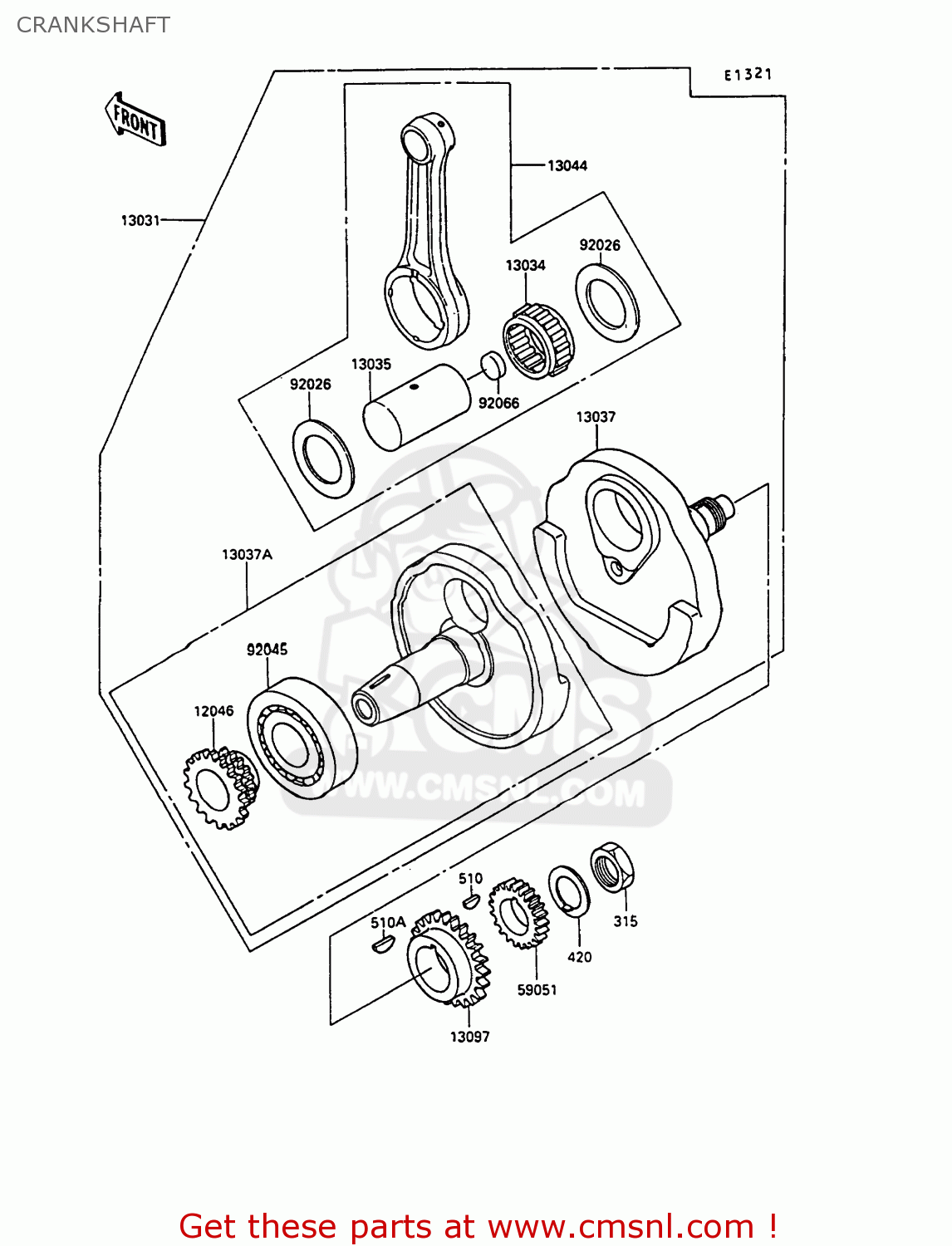

Crankshaft diagram KL250D8 KLR250 1991 EUROPE UK FG GR SD
CRANKSHAFT KL250D8 KLR250 1991 EUROPE UK FG GR SD
×
prices are in EUR
ref
part #
description
quantity
315
315B1600
ref: 315
NUT-HEX-FINE,16MM
€ 2.50
420
420B1611
ref: 420
WASHER-CLAW,16MM
€ 2.50
510
510A3100
ref: 510
KEY-WOODRUFF
€ 1.50
510A
510A5100
ref: 510A
KEY-WOODRUFF
€ 1.50
12046
120461064
ref: 12046
SPROCKET,CAM&BALANCER
€ 69.50
13031
130311281
ref: 13031
CRANKSHAFT-COMP
€ 730.00
13034
130341085
ref: 13034
BEARING-BIG END
€ 31.50
13035
130351069
ref: 13035
PIN-CRANK
€ 48.00
13037
130371226
ref: 13037
CRANKSHAFT,RH
€ 406.50
13037A
130375040
ref: 13037A
CRANKSHAFT,LH
€ 418.00
13044
130445075
ref: 13044
SET-CONNECTING ROD
€ 215.00
13097
130971118
ref: 13097
GEAR-PRIMARY SPUR,23T
€ 60.50
59051
590511122
ref: 59051
GEAR-SPUR,OIL PUMP,18
€ 30.00
92026
920261348
ref: 92026
SPACER,32.2X51.5X1.2
€ 9.00
92045
920451172
ref: 92045
BEARING-BALL
€ 53.50
92066
920661249
ref: 92066
PLUG
€ 3.00
