HEAD LAMP
KL250D8 KLR250 1991 EUROPE UK FG GR SD

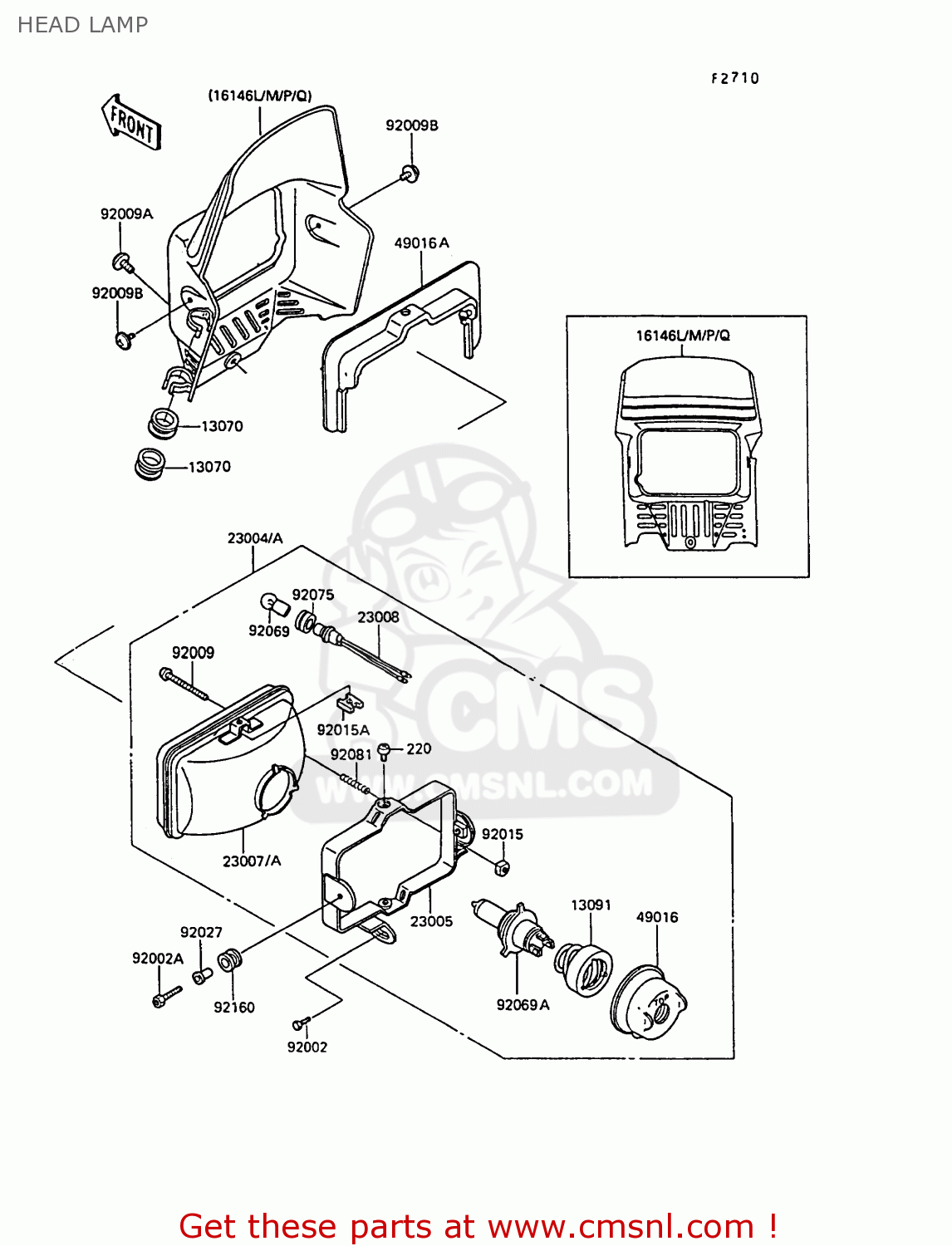

Head lamp diagram KL250D8 KLR250 1991 EUROPE UK FG GR SD
HEAD LAMP KL250D8 KLR250 1991 EUROPE UK FG GR SD
×
prices are in EUR
ref
part #
description
quantity
13070
130701107
ref: 13070
GUIDE,BRAKE HOSE
€ 6.50
13091
130911558
ref: 13091
UK
HOLDER,SOCKET
€ 9.00
16146P
1614650346F
ref: 16146P
COVER-ASSY,HEAD LAMP,
€ 79.50
16146Q
1614650356C
ref: 16146Q
COVER-ASSY,HEAD LAMP,
€ 80.00
23004
230041159
ref: 23004
UK
LAMP-HEAD
€ 346.00
23004A
230041321
ref: 23004A
EUFGGRSD
LAMP-HEAD
€ 304.50
23005
230051052
ref: 23005
BODY-COMP-HEAD LAMP
€ 27.50
23007
230071104
ref: 23007
UK
LENS-COMP,HEAD LAMP
€ 95.50
23007A
230071269
ref: 23007A
EUFGGRSD
LENS-COMP,HEAD LAMP
€ 88.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161037
ref: 49016
COVER-SEAL,SOCKET
€ 7.50
49016A
490161101
ref: 49016A
COVER-SEAL,HEAD LAMP
€ 21.00
92002
920021260
ref: 92002
BOLT,6X14
€ 0.50
92002A
920021319
ref: 92002A
BOLT
€ 4.50
92009
920091065
ref: 92009
SCREW,4MM
€ 3.00
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
92009A
920091287
ref: 92009A
SCREW,6X14
€ 1.50
92009B
920091294
ref: 92009B
SCREW,6X8
€ 2.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151354
ref: 92015A
NUT,5MM
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92081
23014005
ref: 92081
SPRING-FOCUS ADJUST
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
