MUFFLER
KL250D8 KLR250 1991 EUROPE UK FG GR SD

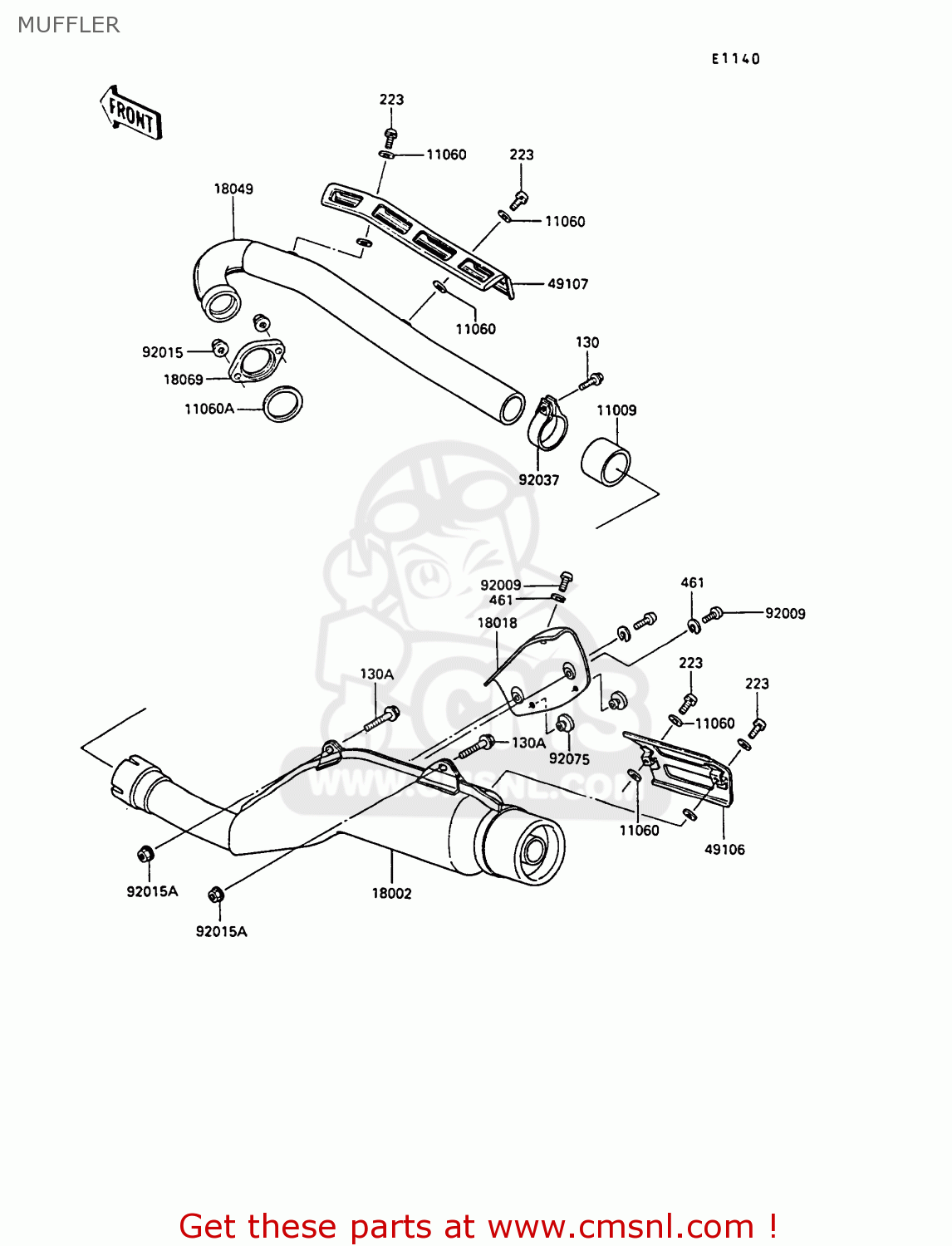

Muffler diagram KL250D8 KLR250 1991 EUROPE UK FG GR SD
MUFFLER KL250D8 KLR250 1991 EUROPE UK FG GR SD
×
prices are in EUR
ref
part #
description
quantity
130
130J0830
ref: 130
BOLT-FLANGED,8X30
€ 2.50
130A
130J0840
ref: 130A
BOLT-FLANGED,8X40
€ 3.00
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
11009
110091667
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11060
110601109
ref: 11060
GASKET,6.2X11.5X1.5 (NAS)
€ 2.50
11060A
110601126
ref: 11060A
GASKET,EXHAUST PIPE (NAS)
€ 16.00
18002
180021991
ref: 18002
BODY-COMP-MUFFLER
€ 454.50
18018
180181055
ref: 18018
PLATE-HEAT GUARD
€ 24.00
18049
180491461
ref: 18049
PIPE-EXHAUST
€ 142.50
18069
180691058
ref: 18069
HOLDER-EXHAUST PIPE
€ 34.00
49106
491061052
ref: 49106
COVER-MUFFLER
€ 31.00
49107
491071057
ref: 49107
COVER-EXHAUST PIPE
€ 50.00
92009
920091054
ref: 92009
SCREW
€ 2.00
92015
920151331
ref: 92015
NUT
€ 2.50
92015A
920151402
ref: 92015A
NUT,8MM
€ 3.00
92037
920371604
ref: 92037
CLAMP
€ 15.00
92075
92075005
ref: 92075
DAMPER
€ 2.50
