Genuine KL Kawasaki Parts delivered quickly!


MUFFLER(S)

KL250D6 KLR250 1989 USA CALIFORNIA CANADA

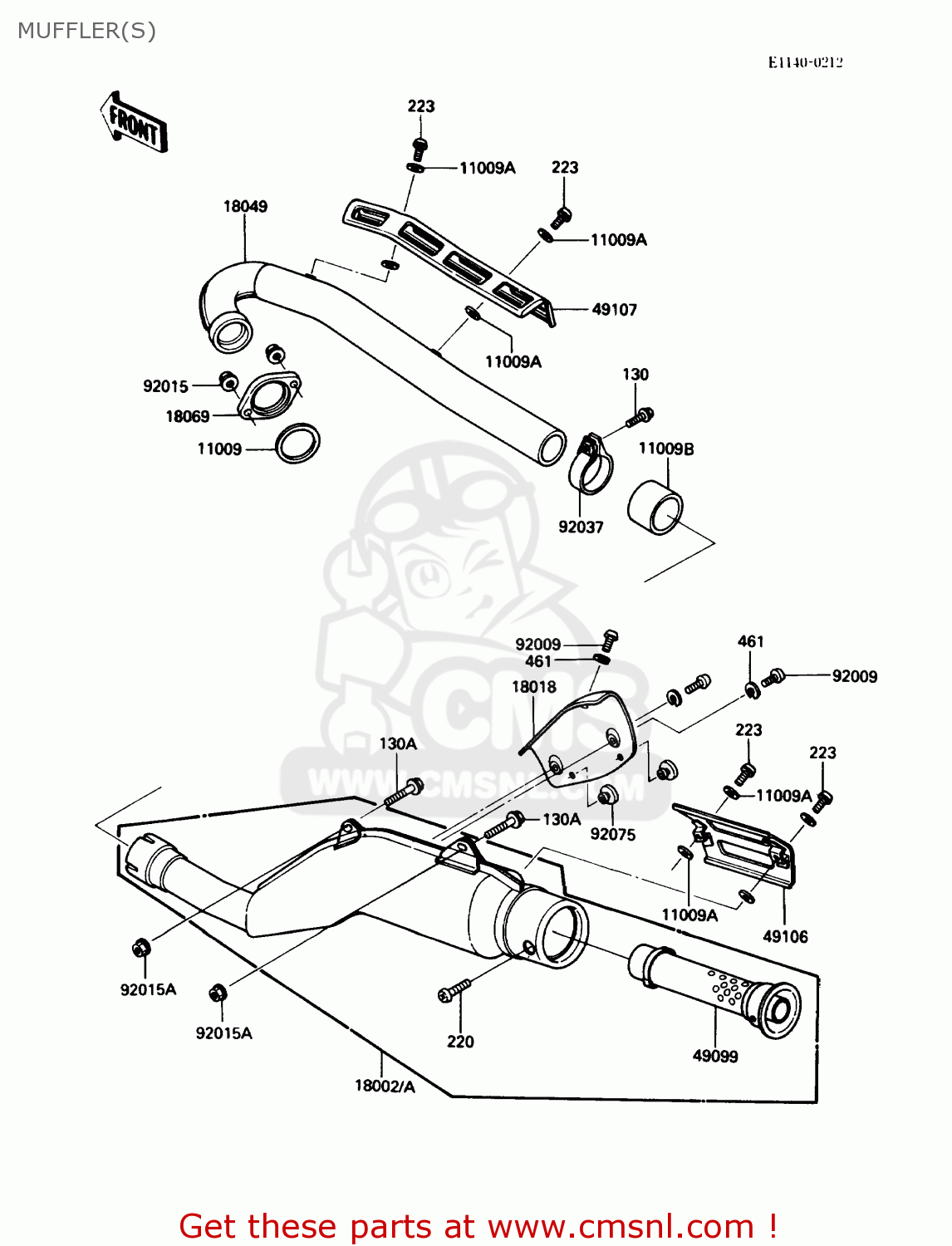

Muffler(s) diagram KL250D6 KLR250 1989 USA CALIFORNIA CANADA

MUFFLER(S) KL250D6 KLR250 1989 USA CALIFORNIA CANADA
MUFFLER(S) KL250D6 KLR250 1989 USA CALIFORNIA CANADA
MUFFLER(S) KL250D6 KLR250 1989 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0830
ref: 130
BOLT-FLANGED,8X30
130J0830
€ 2.50
130A
130J0840
ref: 130A
BOLT-FLANGED,8X40
130J0840
€ 3.00
220
220B0610
ref: 220
CAUS
SCREW-PAN HEAD,6X10
220B0610
€ 2.00
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
223C0610
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
11009
110091428
ref: 11009
GASKET,EXHAUST PIPE (NAS)
110091428
€ 16.00
11009A
110091451
ref: 11009A
GASKET,MUFFLER COVER (MCA)
110091451
€ 2.50
11009B
110091634
ref: 11009B
GASKET,EXHAUST PIPE C (MCA)
110091634
€ 15.00
18002
180021540
ref: 18002
CN
BODY-COMP-MUFFLER
€ 421.00
18002A
180021740
ref: 18002A
CAUS
MUFFLER BODY,COMPLETE
€ 344.00
18018
180181055
ref: 18018
PLATE-HEAT GUARD
€ 24.00
18049
180491461
ref: 18049
PIPE-EXHAUST
€ 142.50
18069
180691058
ref: 18069
HOLDER-EXHAUST PIPE
180691058
€ 34.00
49099
490991219
ref: 49099
CAUS
BAFFLE-PIPE MUFFLER
€ 74.50
49106
491061052
ref: 49106
COVER-MUFFLER
491061052
€ 31.00
49107
491071057
ref: 49107
COVER-EXHAUST PIPE
491071057
€ 50.00
92009
920091054
ref: 92009
SCREW
920091054
€ 2.00
92015
920151331
ref: 92015
NUT
€ 2.50
92015A
920151402
ref: 92015A
NUT,8MM
920151402
€ 3.00
92037
920371604
ref: 92037
CLAMP
920371604
€ 15.00
92075
92075005
ref: 92075
DAMPER
92075005
€ 2.50
