CRANKSHAFT

KL250D6 KLR250 1989 USA CALIFORNIA CANADA

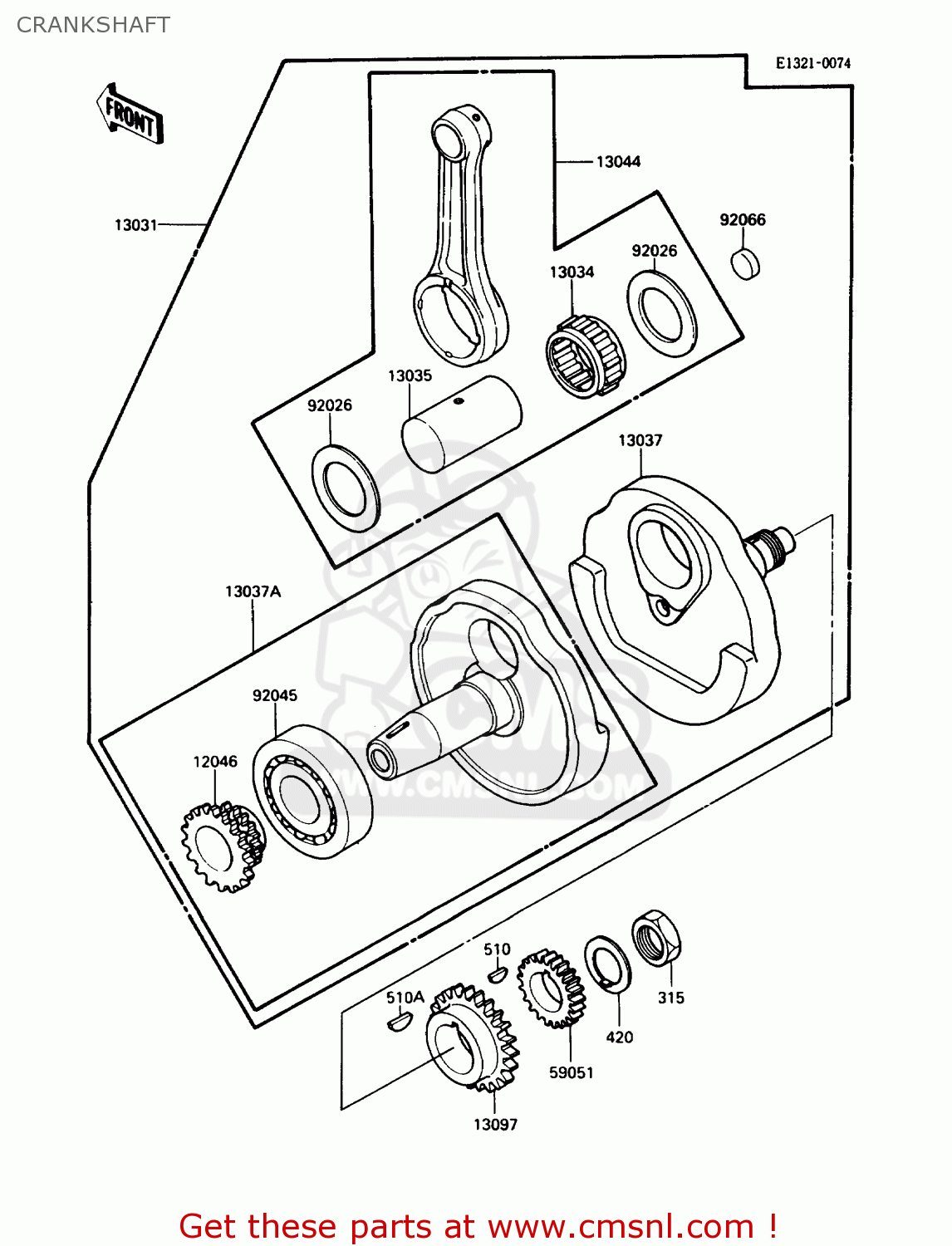

Crankshaft diagram KL250D6 KLR250 1989 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

315

315B1600
ref: 315

NUT-HEX-FINE,16MM

€ 2.50

420

420B1611
ref: 420

WASHER-CLAW,16MM

€ 2.50

510

510A3100
ref: 510

KEY-WOODRUFF

€ 1.50

510A

510A5100
ref: 510A

KEY-WOODRUFF

€ 1.50

12046

120461064
ref: 12046

SPROCKET,CAM&BALANCER

€ 69.50

13031

130311281
ref: 13031

CRANKSHAFT-COMP

€ 730.00

13034

130341085
ref: 13034

BEARING-BIG END

€ 31.50

13035

130351069
ref: 13035

PIN-CRANK

€ 48.00

13037

130371226
ref: 13037

CRANKSHAFT,RH

€ 406.50

13037A

130375040
ref: 13037A

CRANKSHAFT,LH

€ 418.00

13044

130445075
ref: 13044

SET-CONNECTING ROD

€ 215.00

13097

130971118
ref: 13097

GEAR-PRIMARY SPUR,23T

€ 60.50

59051

590511122
ref: 59051

GEAR-SPUR,OIL PUMP,18

€ 30.00

92026

920261348
ref: 92026

SPACER,32.2X51.5X1.2

€ 9.00

92045

92045037
ref: 92045

BEARING-BALL,#6306

€ 40.00

92066

920661249
ref: 92066

PLUG

€ 3.00
