GENERATOR

KL250D6 KLR250 1989 USA CALIFORNIA CANADA

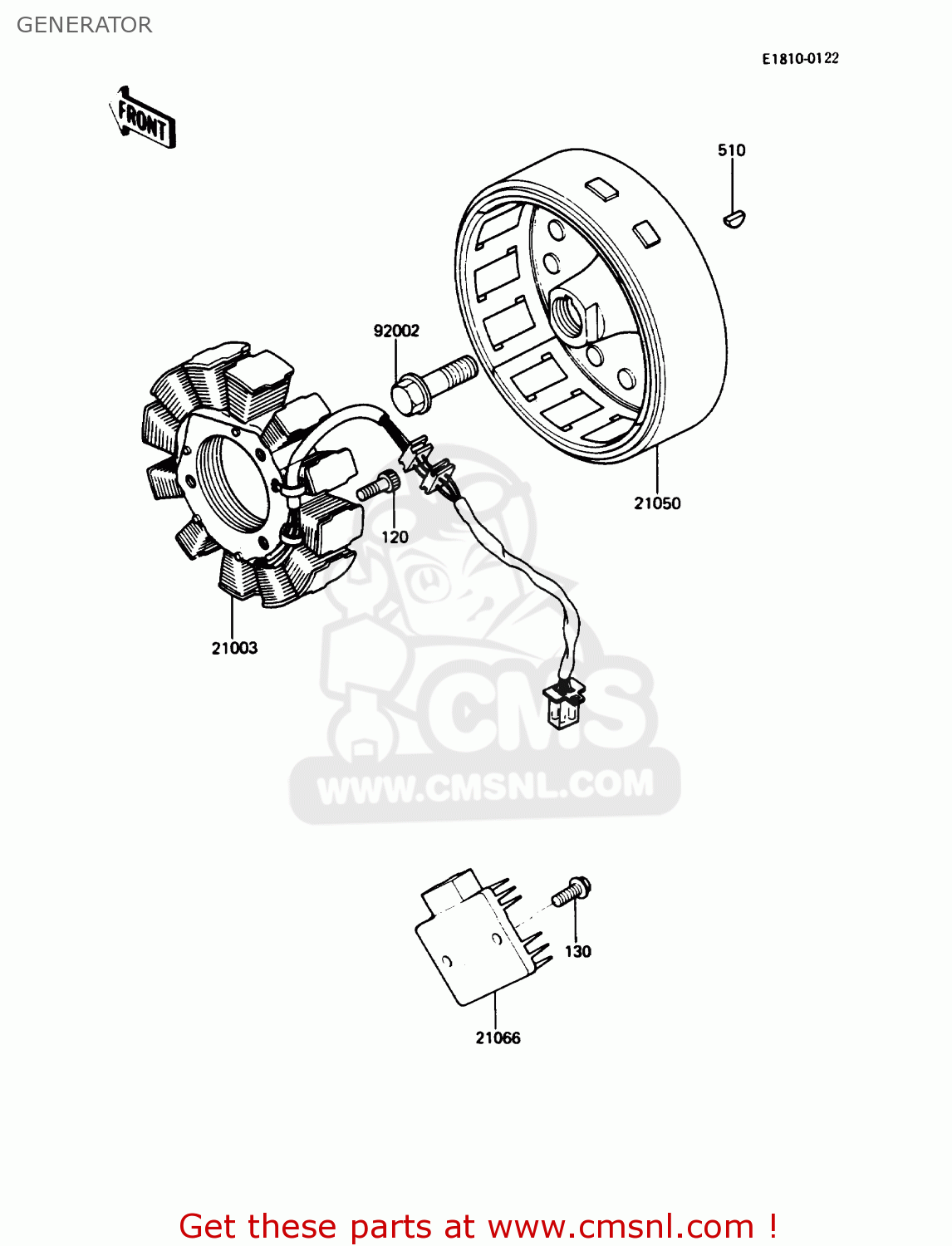

Generator diagram KL250D6 KLR250 1989 USA CALIFORNIA CANADA

GENERATOR KL250D6 KLR250 1989 USA CALIFORNIA CANADA

GENERATOR KL250D6 KLR250 1989 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0630
ref: 120

BOLT,SOCKET,6X30

€ 4.50

130

130G0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

510

510A3300
ref: 510

KEY-WOODRUFF

€ 3.50

21003

210031121
ref: 21003

STATOR

€ 562.50

21050

210501109
ref: 21050

FLYWHEEL

€ 522.50

21066

210661052
ref: 21066

REGULATOR-VOLTAGE

€ 105.50

92002

920021693
ref: 92002

BOLT

€ 14.50
