IGNITION SWITCH

KL250D6 KLR250 1989 USA CALIFORNIA CANADA

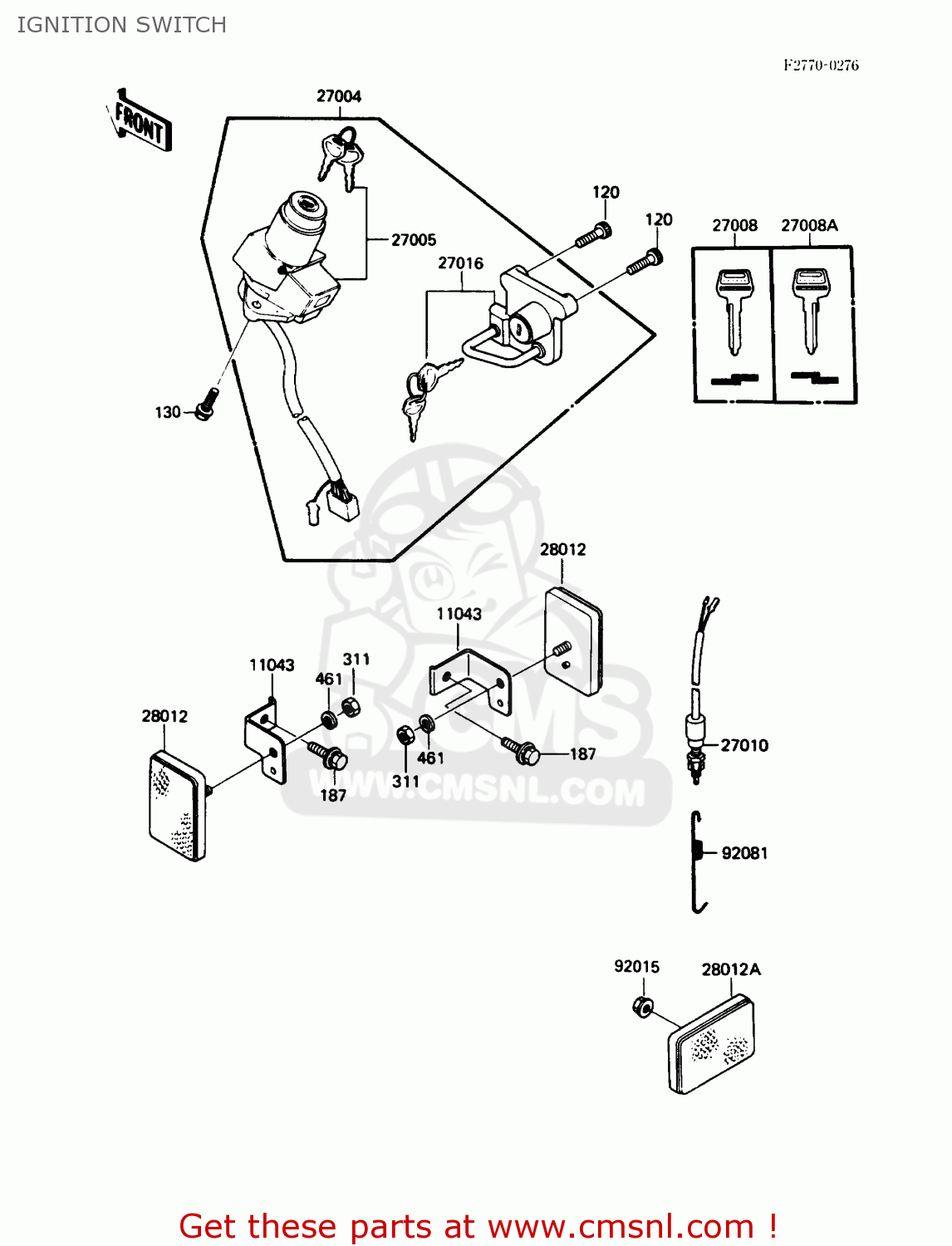

Ignition switch diagram KL250D6 KLR250 1989 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0612
ref: 120
CNUS

BOLT-SOCKET

€ 1.50

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

187

187C0614
ref: 187

BOLT-UPSET-WSP

€ 2.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

11043

110431362
ref: 11043

BRACKET,REFLECTOR,FR

€ 9.00

27004

270045218
ref: 27004
CNUS

SWITCH-ASSY

€ 114.00

27005

270051103
ref: 27005

SWITCH-ASSY-IGNITION

€ 264.00

27008

270081034
ref: 27008

KEY,BLANK

€ 13.00

27008A

270081035
ref: 27008A

KEY,BLANK

€ 12.50

27010

270101019
ref: 27010

SWITCH,REAR BRAKE

€ 23.00

27016

270165075
ref: 27016
CNUS

LOCK-ASSY,HELMET

€ 84.00

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121054
ref: 28012A

REFLECTOR-REFLEX,RR

€ 15.00

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92081

920811704
ref: 92081

SPRING,BRAKE LAMP SWI

€ 5.00
