REAR HUB
KL250D6 KLR250 1989 EUROPE UK FG GR NR ST

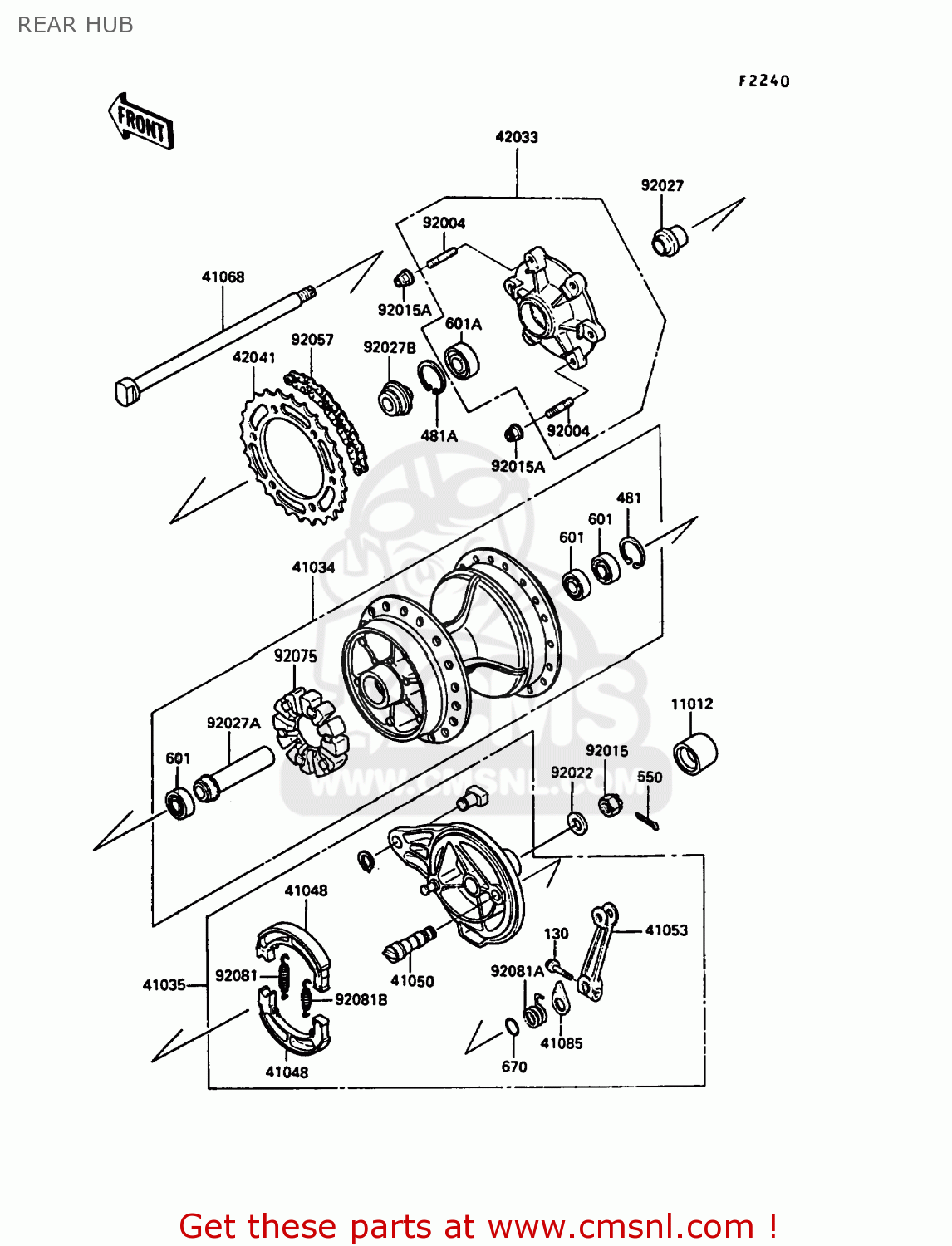

Rear hub diagram KL250D6 KLR250 1989 EUROPE UK FG GR NR ST
REAR HUB KL250D6 KLR250 1989 EUROPE UK FG GR NR ST
×
prices are in EUR
ref
part #
description
quantity
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
481A
481J4200
ref: 481A
CIRCLIP-TYPE-C
€ 4.00
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6003UG
ref: 601
BEARING-BALL #6003UC3
€ 17.00
601A
601B6004UG
ref: 601A
BEARING-BALL,#6004U
€ 27.50
670
670B2015
ref: 670
O RING,15MM
€ 1.00
11012
110121592
ref: 11012
FG
CAP,AXLE NUT
€ 5.00
41034
410341113
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 482.50
41035
410351173
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 359.50
41048
410481056
ref: 41048
SHOE-BRAKE (MCA)
€ 26.00
41050
410501058
ref: 41050
CAM-BRAKE
€ 33.50
41053
410531061
ref: 41053
LEVER-BRAKE CAM
€ 69.50
41068
410681178
ref: 41068
AXLE,RR
€ 56.50
41085
41085005
ref: 41085
INDICATOR,FRONT BRAK
€ 9.00
42033
420331111
ref: 42033
COUPLING-ASSY,REAR HU
€ 205.50
42041
420411191
ref: 42041
SPROCKET-HUB,44T
€ 36.00
92004
920041149
ref: 92004
STUD,8X18
€ 4.00
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
€ 6.50
92015A
920151506
ref: 92015A
NUT,LOCK,8MM
€ 4.50
92022
42046009
ref: 92022
WASHER-SLEEVE
€ 5.00
92027
920271770
ref: 92027
COLLAR,REAR HUB COUPL
€ 14.50
92027A
920271823
ref: 92027A
COLLAR,REAR BRAKE DRU
€ 12.00
92027B
920271826
ref: 92027B
COLLAR,REAR HUB COUPL
€ 26.50
92057
920571181
ref: 92057
CHAIN,DRIVE,EK520L-OX
€ 107.00
92075
920751068
ref: 92075
DAMPER,SHOCK,RR HUB
€ 34.50
92081
920811550
ref: 92081
SPRING,BRAKE SHOE
€ 6.00
92081A
920811615
ref: 92081A
SPRING,BRAKE CAM LEVE
€ 13.00
92081B
920811766
ref: 92081B
SPRING,BRAKE SHOE
€ 5.50
