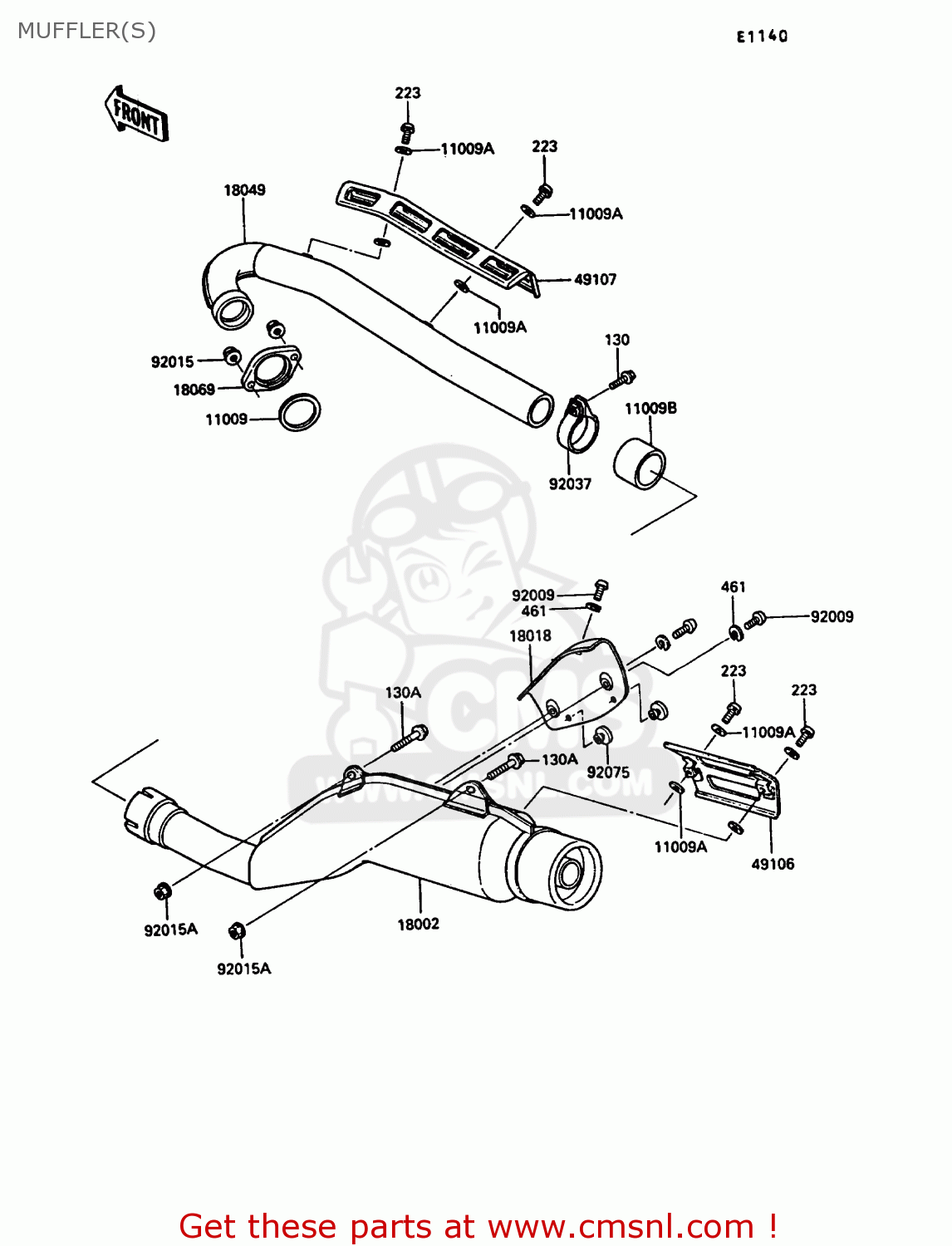

MUFFLER(S)

ref

part #

description

quantity

130

130J0830
ref: 130

BOLT-FLANGED,8X30

€ 2.50

130A

130J0840
ref: 130A

BOLT-FLANGED,8X40

€ 3.00

223

223C0610
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

11009

110091428
ref: 11009

GASKET,EXHAUST PIPE (NAS)

€ 16.00

11009A

110091451
ref: 11009A

GASKET,MUFFLER COVER (MCA)

€ 2.50

11009B

110091634
ref: 11009B

GASKET,EXHAUST PIPE C (MCA)

€ 15.00

18002

180021540
ref: 18002

BODY-COMP-MUFFLER

€ 421.00

18018

180181055
ref: 18018

PLATE-HEAT GUARD

€ 24.00

18049

180491461
ref: 18049

PIPE-EXHAUST

€ 142.50

18069

180691058
ref: 18069

HOLDER-EXHAUST PIPE

€ 34.00

49106

491061052
ref: 49106

COVER-MUFFLER

€ 31.00

49107

491071057
ref: 49107

COVER-EXHAUST PIPE

€ 50.00

92009

920091054
ref: 92009

SCREW

€ 2.00

92015

920151331
ref: 92015

NUT

€ 2.50

92015A

920151402
ref: 92015A

NUT,8MM

€ 3.00

92037

920371604
ref: 92037

CLAMP

€ 15.00

92075

92075005
ref: 92075

DAMPER

€ 2.50
