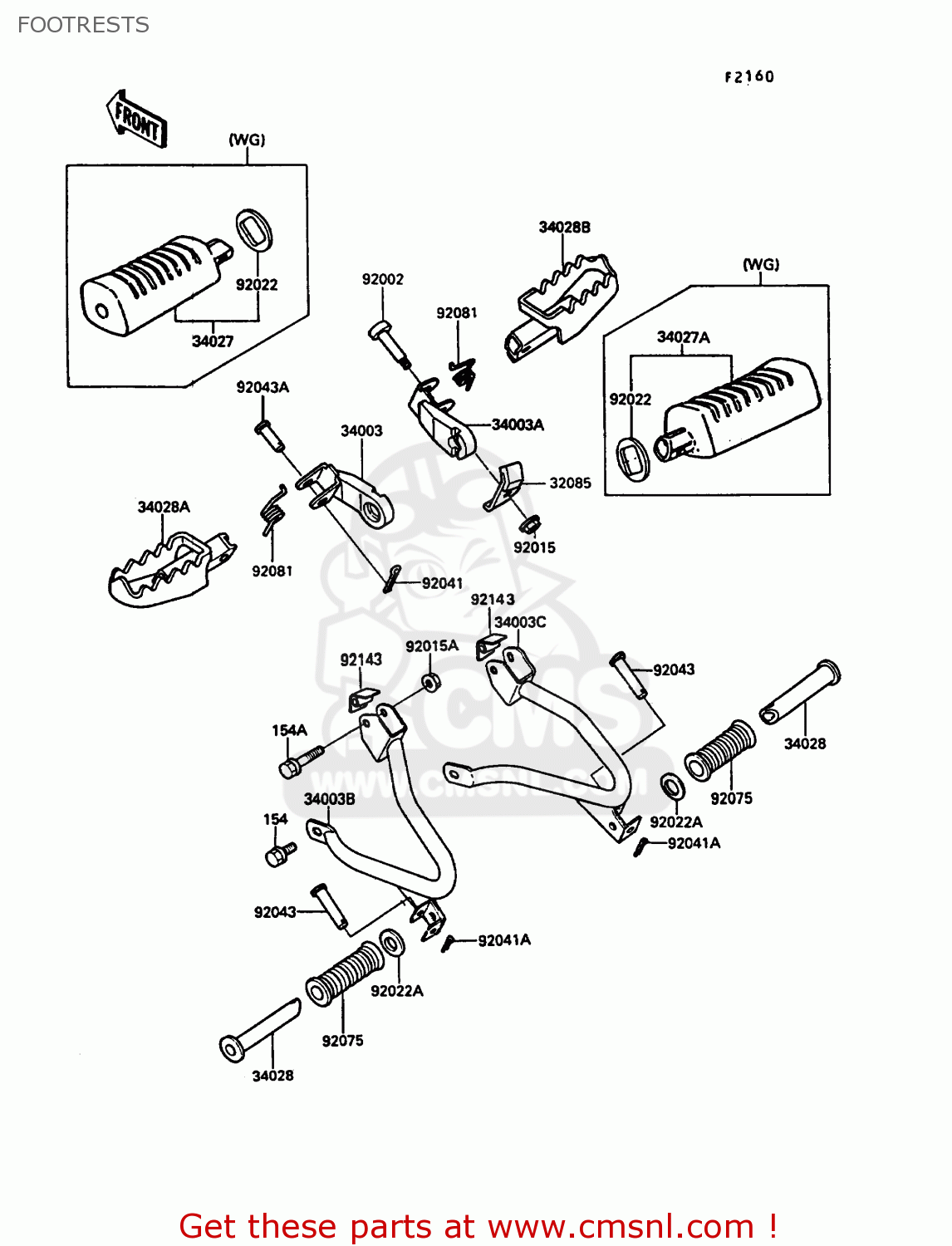

FOOTRESTS

ref

part #

description

quantity

154

154N0818
ref: 154

BOLT-WP-SMALL,8X18

€ 2.50

154A

154N0840
ref: 154A

BOLT-WP-SMALL,8X40

€ 3.50

32085

320851178
ref: 32085

STOPPER,KICK PEDAL

€ 14.50

34003

340031218
ref: 34003

HOLDER-STEP,FR,LH

€ 27.50

34003A

340031219
ref: 34003A

HOLDER-STEP,FR,RH

€ 23.00

34003B

340031288
ref: 34003B

HOLDER-STEP,RR,LH

€ 50.00

34003C

340031289
ref: 34003C

HOLDER-STEP,RR,RH

€ 16.00

34027

340271114
ref: 34027
FG

STEP-ASSY,FR,LH

€ 24.00

34027A

340271115
ref: 34027A
FG

STEP-ASSY,FR,RH

€ 24.00

34028

34028009
ref: 34028

BAR-REAR FOOTREST

€ 24.00

34028A

340281154
ref: 34028A
EUGRNRSTUK

STEP,FR,LH

€ 26.50

34028B

340281155
ref: 34028B
EUGRNRSTUK

STEP,FR,RH

€ 26.50

92002

920021193
ref: 92002

BOLT

€ 4.00

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151406
ref: 92015A

NUT,8MM

€ 3.00

92022

920221314
ref: 92022
FG

WASHER,STEP FITTING

€ 3.00

92022A

920221568
ref: 92022A

WASHER,20X30X2.3

€ 2.50

92041

920411051
ref: 92041

COTTER

€ 3.00

92041A

920411052
ref: 92041A

COTTER

€ 1.00

92043

92043079
ref: 92043

PIN-REAR FOOTREST FIT

€ 5.50

92043A

92043080
ref: 92043A

PIN-FOOTREST BAR FIT

€ 3.50

92075

92076020
ref: 92075

DAMPER

€ 7.50

92081

920811133
ref: 92081

SPRING,FOOTREST STEP

€ 4.00

92143

921431080
ref: 92143

COLLAR,STEP HOLDER

€ 7.00

all assemblies
