AIR CLEANER

KL250D6 KLR250 1989 EUROPE UK FG GR NR ST

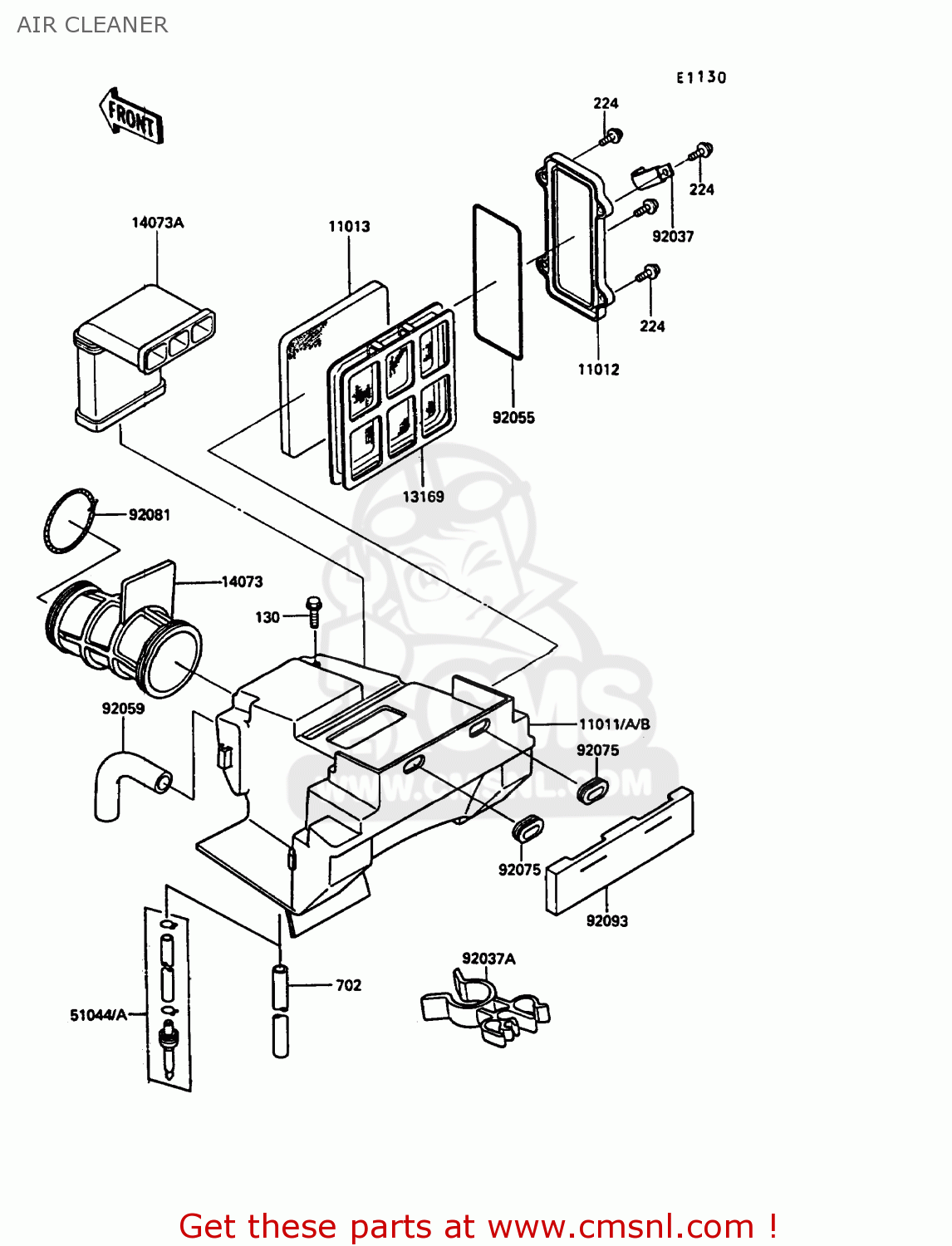

Air cleaner diagram KL250D6 KLR250 1989 EUROPE UK FG GR NR ST

prices are in EUR

ref

part #

description

quantity

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

224

224C0614
ref: 224

SCREW-PAN-WP-CROS

€ 2.50

11011A

110111275
ref: 11011A

CASE-AIR FILTER

€ 136.50

11012

110121661
ref: 11012

CAP,ELEMENT

€ 12.00

11013

110131117
ref: 11013

ELEMENT-AIR FILTER

€ 11.00

13169

131691851
ref: 13169

PLATE,ELEMENT

€ 31.50

14073

140731184
ref: 14073

DUCT,CARBURETOR

€ 24.00

14073A

140731185
ref: 14073A

DUCT,INTAKE

€ 26.00

51044

510441087
ref: 51044

TUBE-ASSY,AIR FILTER

€ 47.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371886
ref: 92037A

CLAMP

€ 4.50

92055

920551254
ref: 92055

RING-O,AIR FILTER

€ 6.50

92059

920591482
ref: 92059

TUBE,BREATHER

€ 13.00

92075

920751513
ref: 92075

DAMPER

€ 3.00

92081

920811177
ref: 92081

SPRING,COIL

€ 7.00

92093

920931187
ref: 92093

SEAL

€ 21.00
