SWINGARM
KL250D5 KLR250 1988 USA CALIFORNIA CANADA

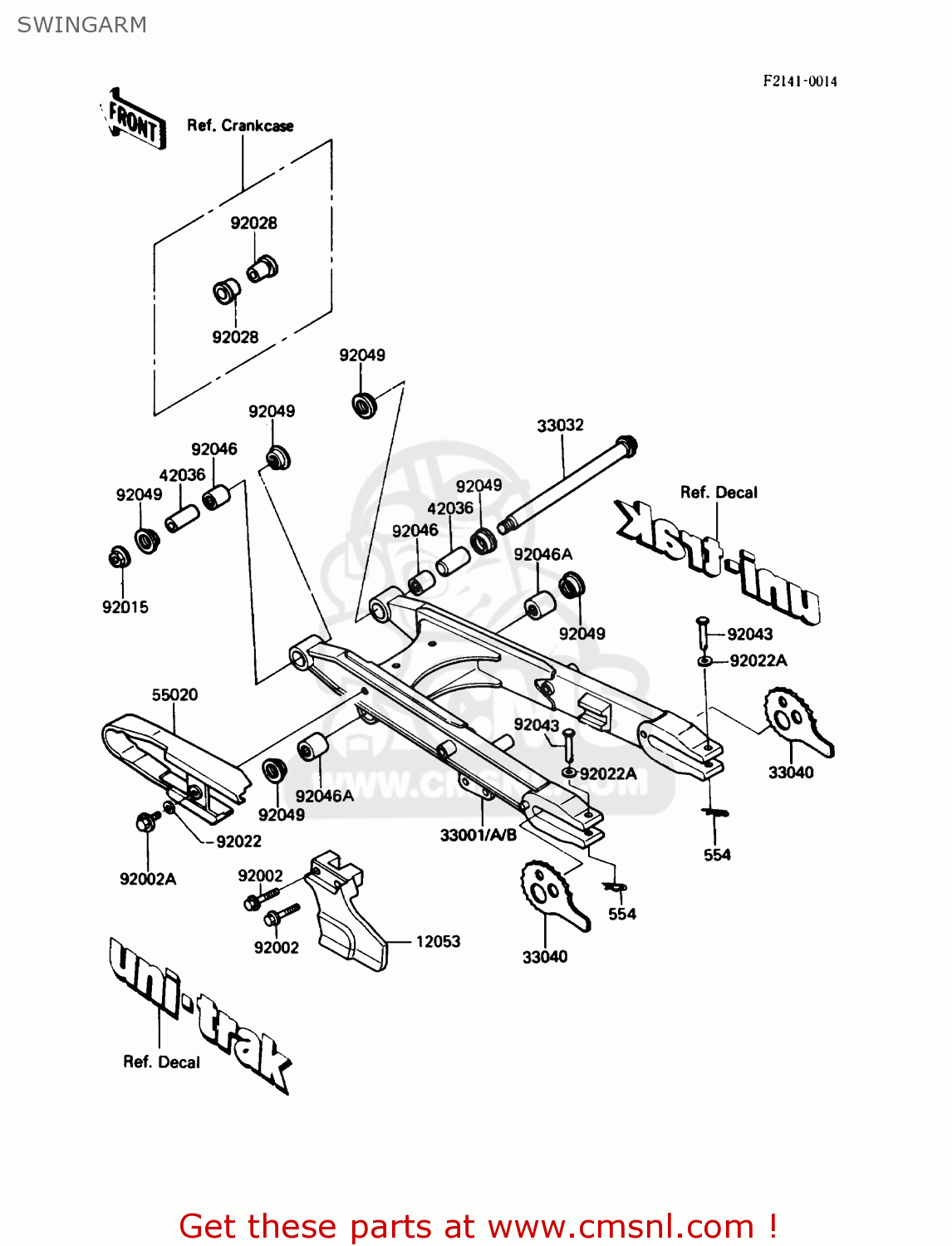

Swingarm diagram KL250D5 KLR250 1988 USA CALIFORNIA CANADA
SWINGARM KL250D5 KLR250 1988 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
554
554A0600
ref: 554
PIN-SNAP,SIDE STAND
€ 0.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
€ 46.00
33001B
330011253X3
ref: 33001B
ARM-COMP-SWING,SILVER
€ 927.00
33032
330321108
ref: 33032
SHAFT-SWING ARM
€ 56.00
33040
330401060
ref: 33040
ADJUSTER-CHAIN
€ 21.00
42036
420361103
ref: 42036
SLEEVE,15.1X20X42.5
€ 12.50
55020
550201154
ref: 55020
GUARD,CHAIN,FR
€ 110.00
92002
920021088
ref: 92002
BOLT,6X45
€ 3.00
92002A
920021185
ref: 92002A
BOLT,5X12
€ 1.00
92015
920151459
ref: 92015
NUT,14MM
€ 6.50
92022
92022104
ref: 92022
WASHER-SPEEDMETR FIT
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92028
920281261
ref: 92028
BUSHING,SWING ARM
€ 12.00
92043
920431110
ref: 92043
PIN,6X44.5
€ 3.00
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92046A
920461113
ref: 92046A
BEARING-NEEDLE,BTM202
€ 19.00
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
