METER(S)
KL250D5 KLR250 1988 USA CALIFORNIA CANADA

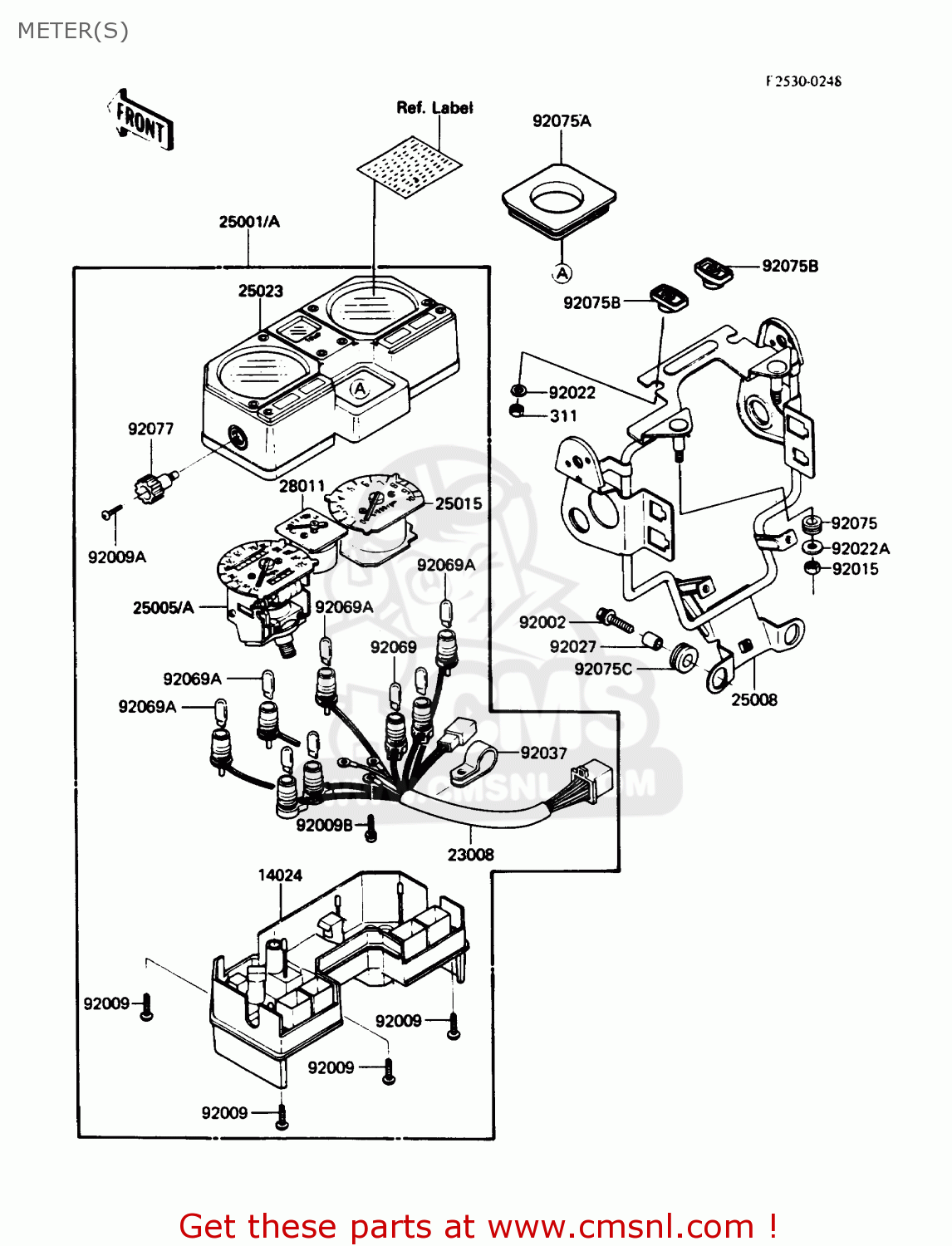

Meter(s) diagram KL250D5 KLR250 1988 USA CALIFORNIA CANADA
METER(S) KL250D5 KLR250 1988 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
€ 0.50
14024
140251818
ref: 14024
COVER,METER CASE,LWR
€ 59.50
23008
230081215
ref: 23008
SOCKET-ASSY,METER
€ 86.50
25001
250011572
ref: 25001
CN
METER-ASSY,KPH
€ 1,116.50
25001A
250011580
ref: 25001A
CAUS
METER ASSEMBLY,MPH
€ 666.50
25005
250051285
ref: 25005
CN
SPEEDOMETER,KPH
€ 191.00
25005A
250051290
ref: 25005A
CAUS
SPEEDOMETER,MPH
€ 166.00
25008
250081104
ref: 25008
BRACKET-METER
€ 67.00
25015
250151226
ref: 25015
TACHOMETER,X1000R/MIN
€ 257.50
25023
250231107
ref: 25023
COVER-METER CASE,UPP
€ 66.00
28011
280111058
ref: 28011
METER,TEMP
€ 115.00
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92037
920371479
ref: 92037
CLAMP,METER,SOCKET AS
€ 6.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
€ 2.50
92075
92075024
ref: 92075
DAMPER
€ 2.50
92075A
920751578
ref: 92075A
DAMPER,IGNITION SWITC
€ 4.50
92075B
920751581
ref: 92075B
DAMPER,METER BRACKET
€ 4.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
92077
920771054
ref: 92077
KNOB,METER
€ 6.00
