CRANKCASE

KL250D5 KLR250 1988 USA CALIFORNIA CANADA

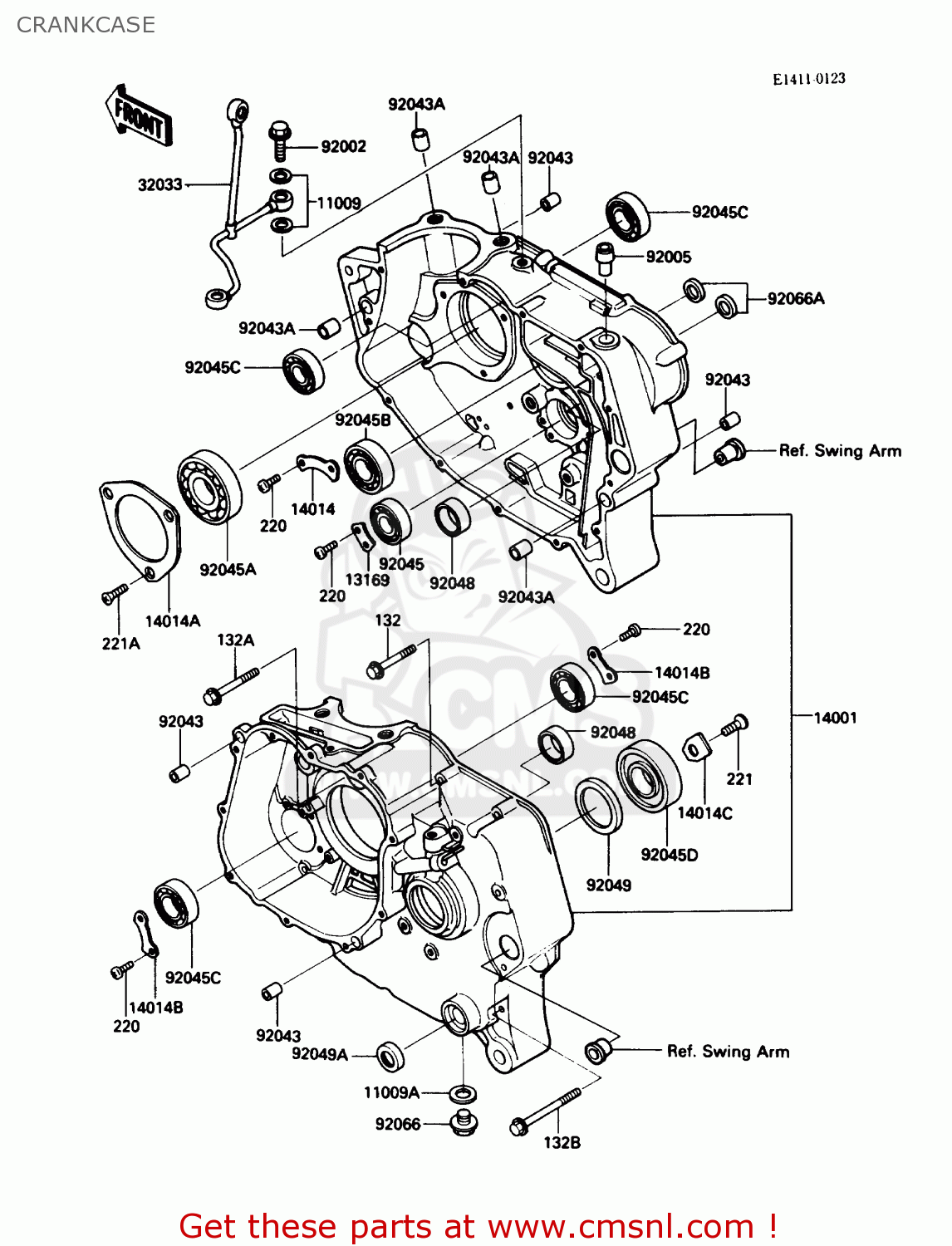

Crankcase diagram KL250D5 KLR250 1988 USA CALIFORNIA CANADA

CRANKCASE KL250D5 KLR250 1988 USA CALIFORNIA CANADA
CRANKCASE KL250D5 KLR250 1988 USA CALIFORNIA CANADA
CRANKCASE KL250D5 KLR250 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132J0640
ref: 132
BOLT-FLANGED-SMALL
132J0640
€ 3.00
132A
132J0650
ref: 132A
BOLT-FLANGED-SMALL
132J0650
€ 3.00
132B
132J0670
ref: 132B
BOLT-FLANGED-SMALL
132J0670
€ 3.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
221
221B0612
ref: 221
SCREW-CNTSNK HD,6X12
221B0612
€ 1.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
221B0616
€ 0.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
13169014
€ 3.00
14001
140015180
ref: 14001
SET-CRANKCASE
€ 955.00
14014
14014037
ref: 14014
PLATE-POSITION
14014037
€ 2.50
14014A
140141004
ref: 14014A
PLATE,POSITIONING
140141004
€ 8.00
14014B
140141014
ref: 14014B
PLATE-POSITION
€ 2.50
14014C
140141057
ref: 14014C
PLATE-POSITION
140141057
€ 2.50
32033
320331427
ref: 32033
PIPE
€ 98.00
92002
920021170
ref: 92002
BOLT,BANJO,10X25
920021170
€ 6.50
92005
14067006
ref: 92005
BREATHER JOINT
14067006
€ 14.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920434009
ref: 92043A
PIN,10.1X12X14
920434009
€ 4.00
92045
92045036
ref: 92045
BEARING-BALL,#6905
92045036
€ 29.00
92045A
92045037
ref: 92045A
BEARING-BALL,#6306
92045037
€ 40.00
92045B
920451041
ref: 92045B
BEARING-BALL,TMB204 J
920451041
€ 32.50
92045C
920451118
ref: 92045C
BEARING-BALL,6004TMB
920451118
€ 23.50
92045D
920451127
ref: 92045D
BEARING-BALL,TM-SX059
920451127
€ 47.00
92048
920481057
ref: 92048
RACE,26X33X13
920481057
€ 29.50
92049
920491159
ref: 92049
SEAL-OIL,TC32457
920491159
€ 8.00
92049A
92050082
ref: 92049A
OIL SEAL,CHANGE SHAFT
92050082
€ 5.50
92066
92066053
ref: 92066
BOLT,DRAIN PLUG
92066053
€ 4.00
92066A
920661282
ref: 92066A
PLUG
920661282
€ 4.00
