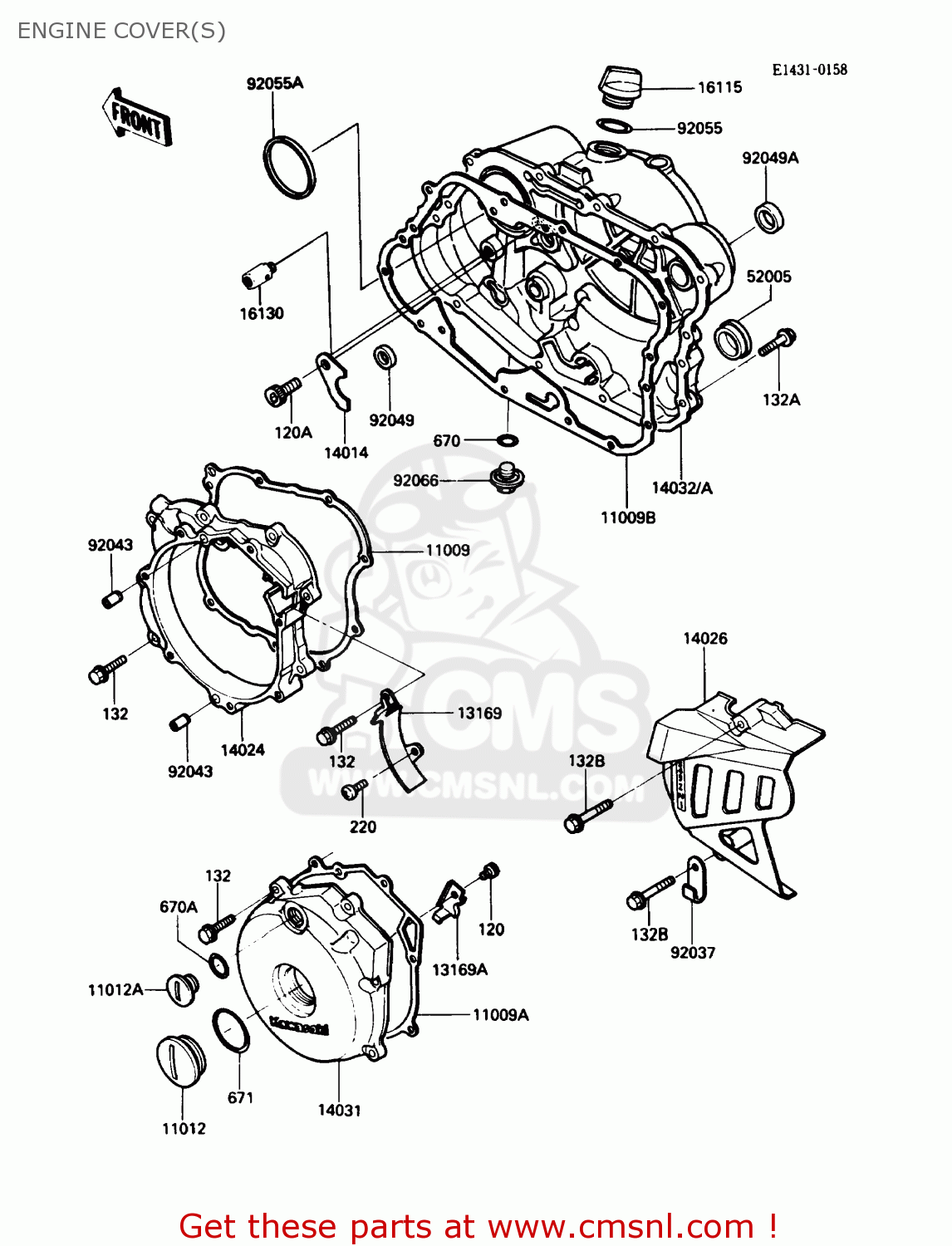

ENGINE COVER(S)

ref

part #

description

quantity

120

120P0608
ref: 120

BOLT-SOCKET

€ 1.50

120A

120P0610
ref: 120A

BOLT-SOCKET,6X10

€ 1.00

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0645
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

220

220B0608
ref: 220

SCREW-PAN HEAD,6X8

€ 0.50

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2018
ref: 670A

O RING,18MM

€ 1.00

671

671B2540
ref: 671

O RING,40MM

€ 4.00

11009

110091435
ref: 11009

GASKET,GENERATOR CASE

€ 18.50

11009A

110091436
ref: 11009A

GASKET,GENERATOR COVE (MCA)

€ 12.50

11009B

110091437
ref: 11009B

GASKET,CLUTCH COVER (MCA)

€ 28.50

11012

110121362
ref: 11012

CAP

€ 6.00

11012A

110121363
ref: 11012A

CAP,TOP MARK

€ 4.00

13169

131691879
ref: 13169

PLATE

€ 11.50

13169A

131691880
ref: 13169A

PLATE,GENERATOR LEAD

€ 6.00

14014

140141062
ref: 14014

PLATE-POSITION

€ 5.50

14024

140251911
ref: 14024

COVER,GENERATOR CASE

€ 108.50

14026

140261112
ref: 14026

COVER-CHAIN

€ 40.00

14031

140311238
ref: 14031

COVER-GENERATOR

€ 174.50

14032

140321277
ref: 14032

COVER-CLUTCH

€ 280.00

14032A

140321227
ref: 14032A

COVER-CLUTCH

€ 280.00

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

52005

520051009
ref: 52005

GAUGE,OIL LEVEL

€ 12.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491191
ref: 92049

SEAL-OIL

€ 16.00

92049A

92050078
ref: 92049A

OIL SEAL

€ 5.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551221
ref: 92055A

RING-O,62.6X66X3.1

€ 6.00

92066

920661156
ref: 92066

PLUG,DRAIN

€ 9.50

all assemblies
