SEAT

KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

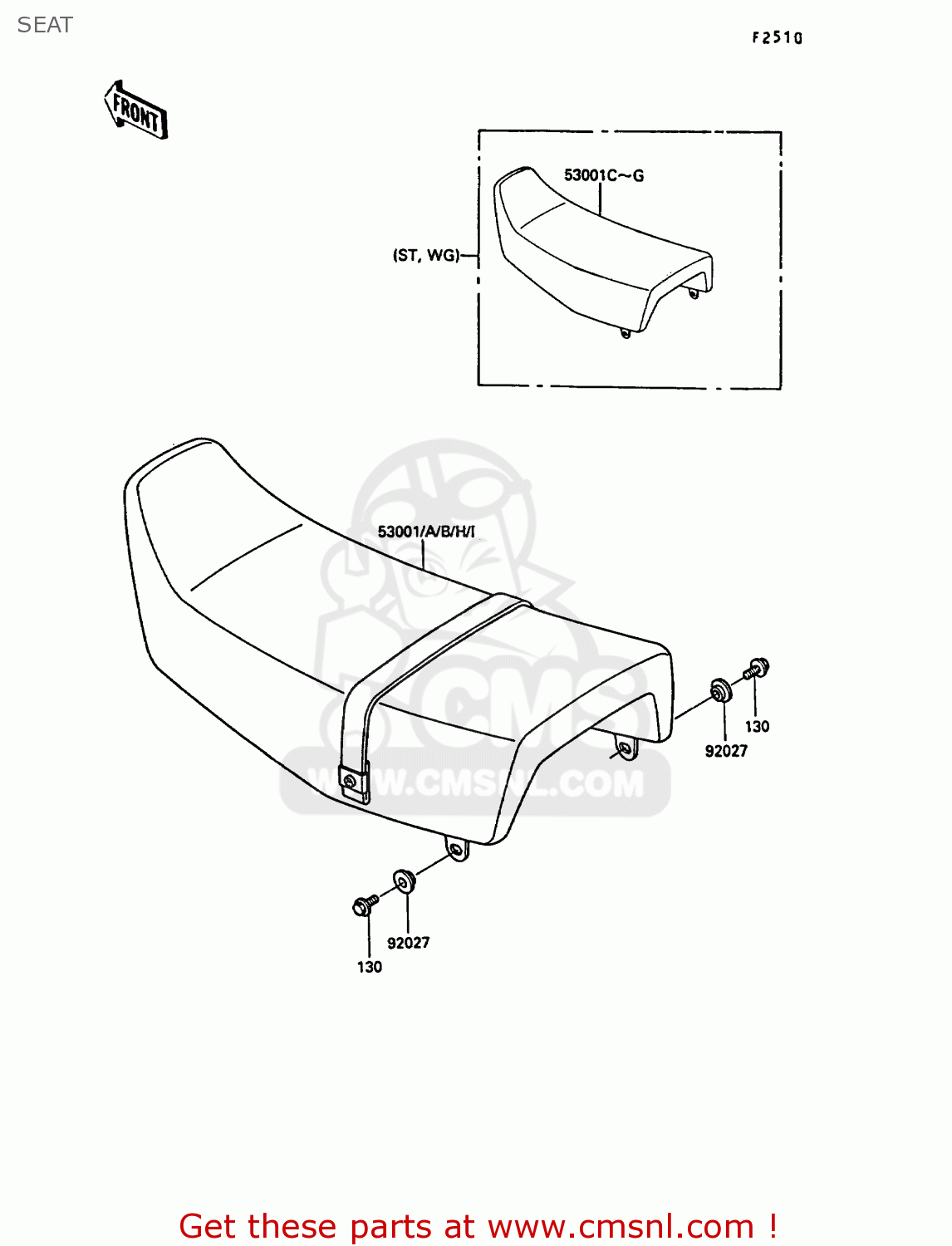

Seat diagram KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

SEAT KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

SEAT KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

prices are in EUR

ref

part #

description

quantity

130

130B0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

53001A

530011510N4
ref: 53001A
EUGRUK

SEAT-ASSY,DUAL,W/BAND

€ 359.00

53001B

530011510N7
ref: 53001B
EUGRIT

SEAT-ASSY,DUAL,W/BAND

€ 228.50

53001E

530011511N7
ref: 53001E
FGST

SEAT-ASSY,DUAL,BLUE

€ 222.00

92027

920271794
ref: 92027

COLLAR

€ 2.50
