BRAKE PEDAL

KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

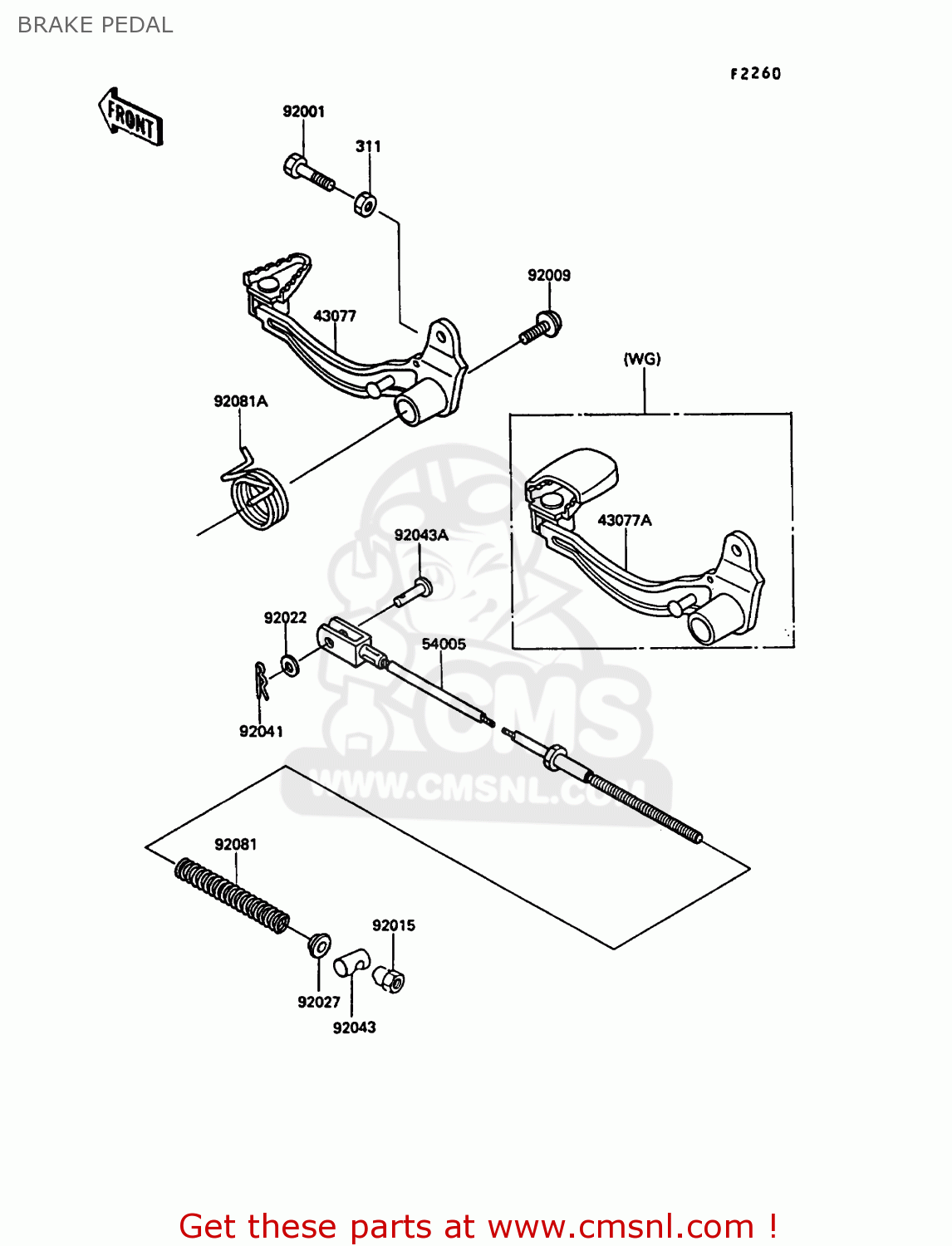

Brake pedal diagram KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

prices are in EUR

ref

part #

description

quantity

311

311B0600
ref: 311

NUT,6MM

€ 0.50

43077

430771055
ref: 43077
EUGRITSTUK

LEVER-ASSY-BRAKE,PEDA

€ 52.00

43077A

430771056
ref: 43077A
FG

LEVER-ASSY-BRAKE,PEDA

€ 52.00

54005

540051108
ref: 54005

CABLE-BRAKE,RR

€ 38.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92022

920221556
ref: 92022

WASHER,STEP,RR

€ 0.50

92027

92027122
ref: 92027

COLLAR,L=4.7

€ 5.50

92041

920411052
ref: 92041

COTTER

€ 1.00

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

92043125
ref: 92043A

PIN

€ 4.50

92081

920811610
ref: 92081

SPRING,REAR BRAKE CAB

€ 3.00

92081A

920811782
ref: 92081A

SPRING,BRAKE PEDAL RE

€ 7.00
