CLUTCH
KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

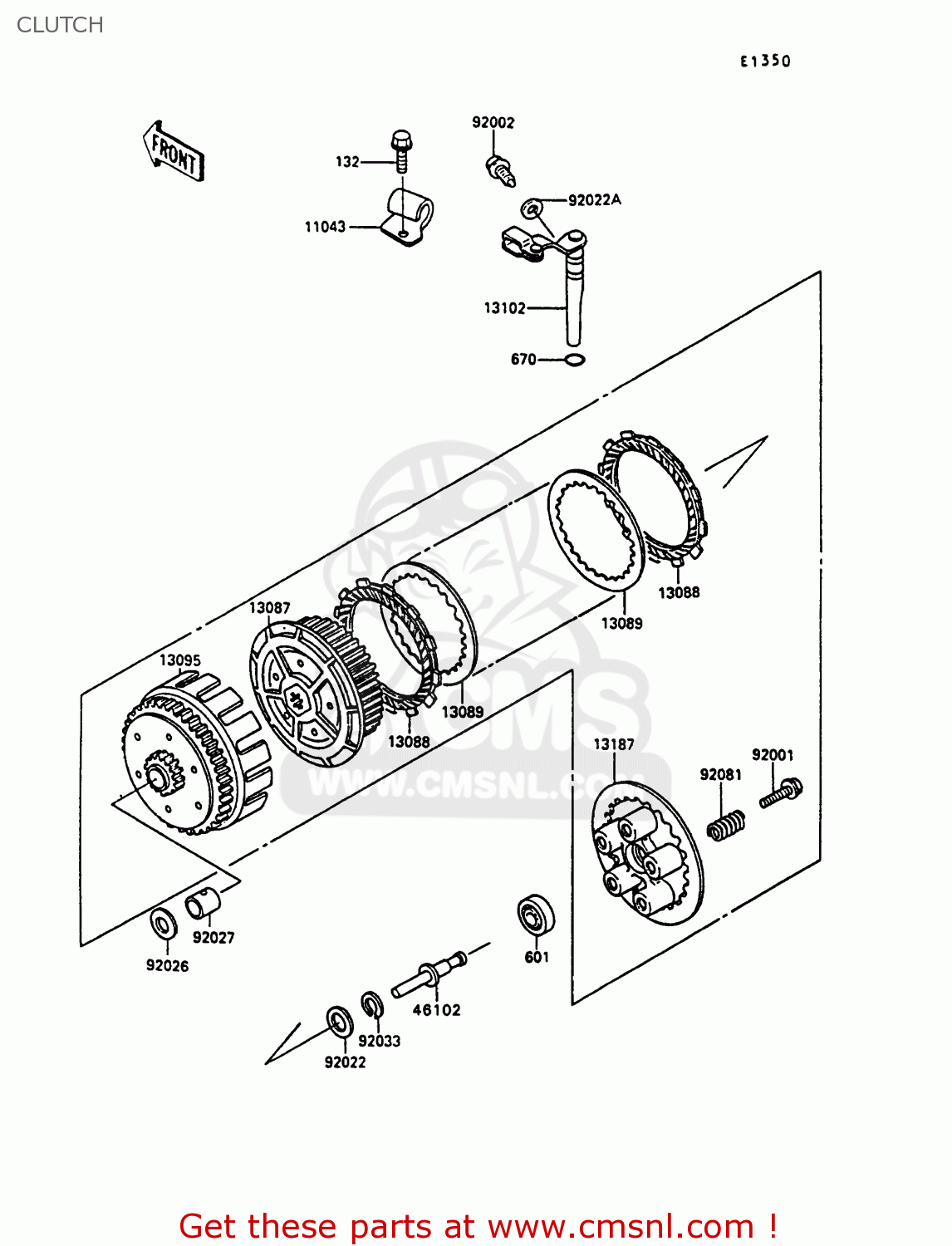

Clutch diagram KL250D4 KLR250 1987 EUROPE UK FG GR IT ST
CLUTCH KL250D4 KLR250 1987 EUROPE UK FG GR IT ST
×
prices are in EUR
ref
part #
description
quantity
132
132W0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
11043
110431931
ref: 11043
BRACKET,CLUTCH CABLE
€ 4.00
13087
130871063
ref: 13087
HUB-CLUTCH
€ 115.50
13088
130881057
ref: 13088
PLATE-FRICTION (NAS)
€ 11.50
13089
130891073
ref: 13089
PLATE-CLUTCH (NAS)
€ 7.50
13095
130951126
ref: 13095
HOUSING-COMP-CLUTCH
€ 403.50
13102
131021064
ref: 13102
RELEASE-COMP-CLUTCH
€ 47.00
13187
131871059
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 50.00
46102
461021033
ref: 46102
ROD,CLUTCH PUSH
€ 16.00
92001
920011576
ref: 92001
BOLT,CLUTCH SPRING,6X
€ 1.00
92002
920021356
ref: 92002
BOLT
€ 4.00
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92026
920261233
ref: 92026
SPACER,20.1X34X4
€ 7.50
92027
920271808
ref: 92027
COLLAR
€ 19.50
92033
92033029
ref: 92033
CIRCLIP,18MM
€ 6.50
92081
92081083
ref: 92081
SPRING-CLUTCH
€ 5.50
