FENDERS
KL250D4 KLR250 1987 EUROPE UK FG GR IT ST

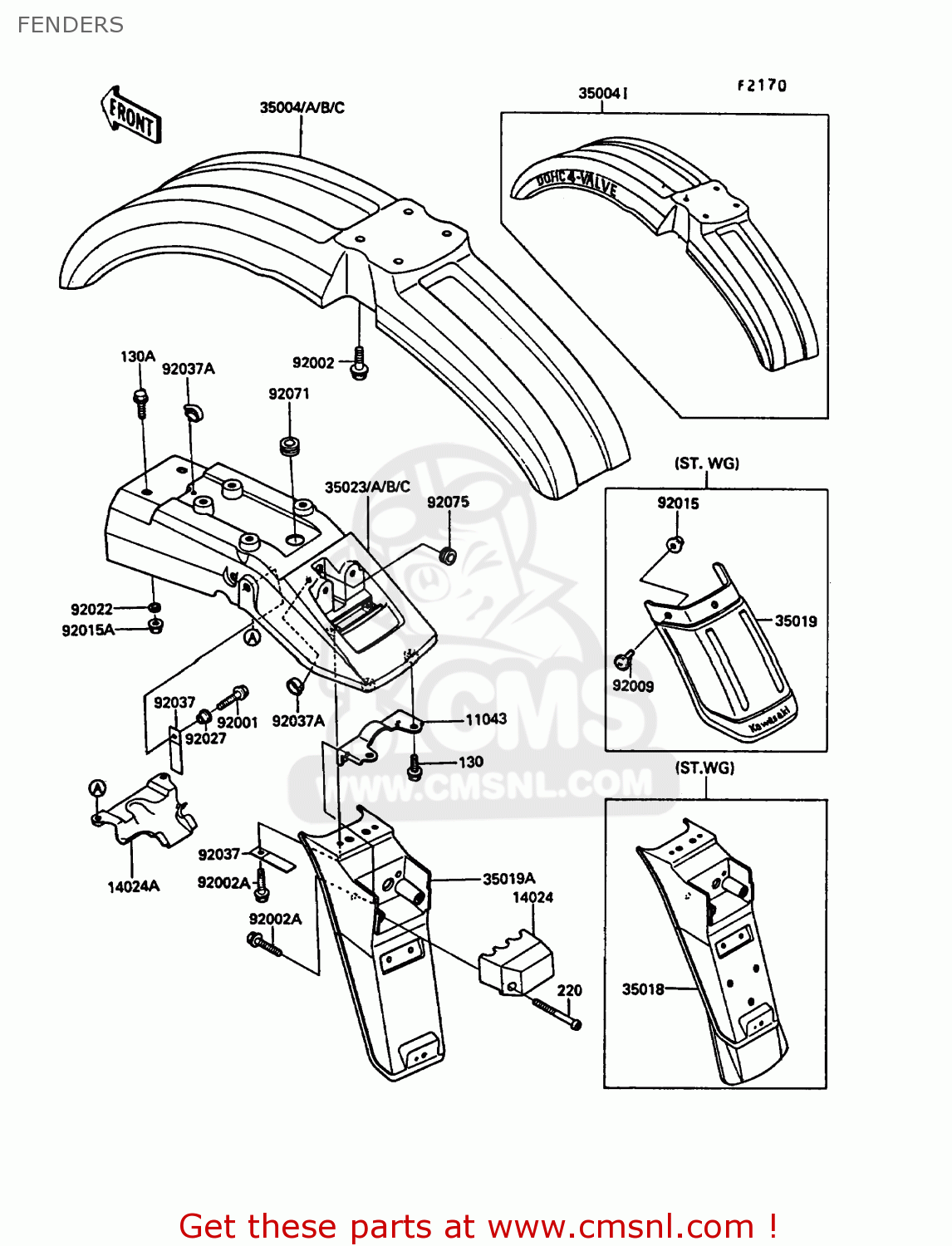

Fenders diagram KL250D4 KLR250 1987 EUROPE UK FG GR IT ST
FENDERS KL250D4 KLR250 1987 EUROPE UK FG GR IT ST
×
prices are in EUR
ref
part #
description
quantity
11043
110431734
ref: 11043
BRACKET,REAR FLAP
€ 10.00
14024
140251933
ref: 14024
COVER,LICENSE PLATE L
€ 17.00
14024A
140251982
ref: 14024A
COVER,HARNESS
€ 12.50
35004
3500411536B
ref: 35004
EUFGGRIT
FENDER-FRONT,S.RED
€ 75.50
35004B
3500411536F
ref: 35004B
EUGRUK
FENDER-FRONT,P.WHITE
€ 72.00
35004C
3500411536W
ref: 35004C
EUFGST
FENDER-FRONT,L.GREEN
€ 73.00
35018
350181051
ref: 35018
FGST
FLAP-ASSY,FENDER,RR
€ 31.00
35019
350191002
ref: 35019
FGST
FLAP,FENDER,FR
€ 11.50
35019A
350191117
ref: 35019A
EUGRITUK
FLAP,FENDER,RR
€ 27.50
35023
3502311146B
ref: 35023
EUFGGRIT
FENDER-REAR,RR,S.RED
€ 73.50
35023B
3502311146F
ref: 35023B
EUGRUK
FENDER-REAR,RR,P.WHIT
€ 79.00
35023C
3502311146W
ref: 35023C
EUFGST
FENDER-REAR,RR,L.GREE
€ 73.00
130
130D0608
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0612
ref: 130A
BOLT,FLANGED
€ 0.50
220
220C0545
ref: 220
SCREW-PAN-CROS
€ 1.50
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92002
920021187
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021188
ref: 92002A
BOLT,6X16
€ 3.00
92009
920091308
ref: 92009
FGST
SCREW,6X14
€ 2.00
92015
920151193
ref: 92015
FGST
NUT,FLANGED,6MM
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027122
ref: 92027
COLLAR,L=4.7
€ 5.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92071
920711027
ref: 92071
GROMMET,AIR CLEANER
€ 3.00
92075
920751028
ref: 92075
DAMPER RUBBER
€ 3.00
