REAR HUB
KL250D20 KLR250 2003 USA CALIFORNIA

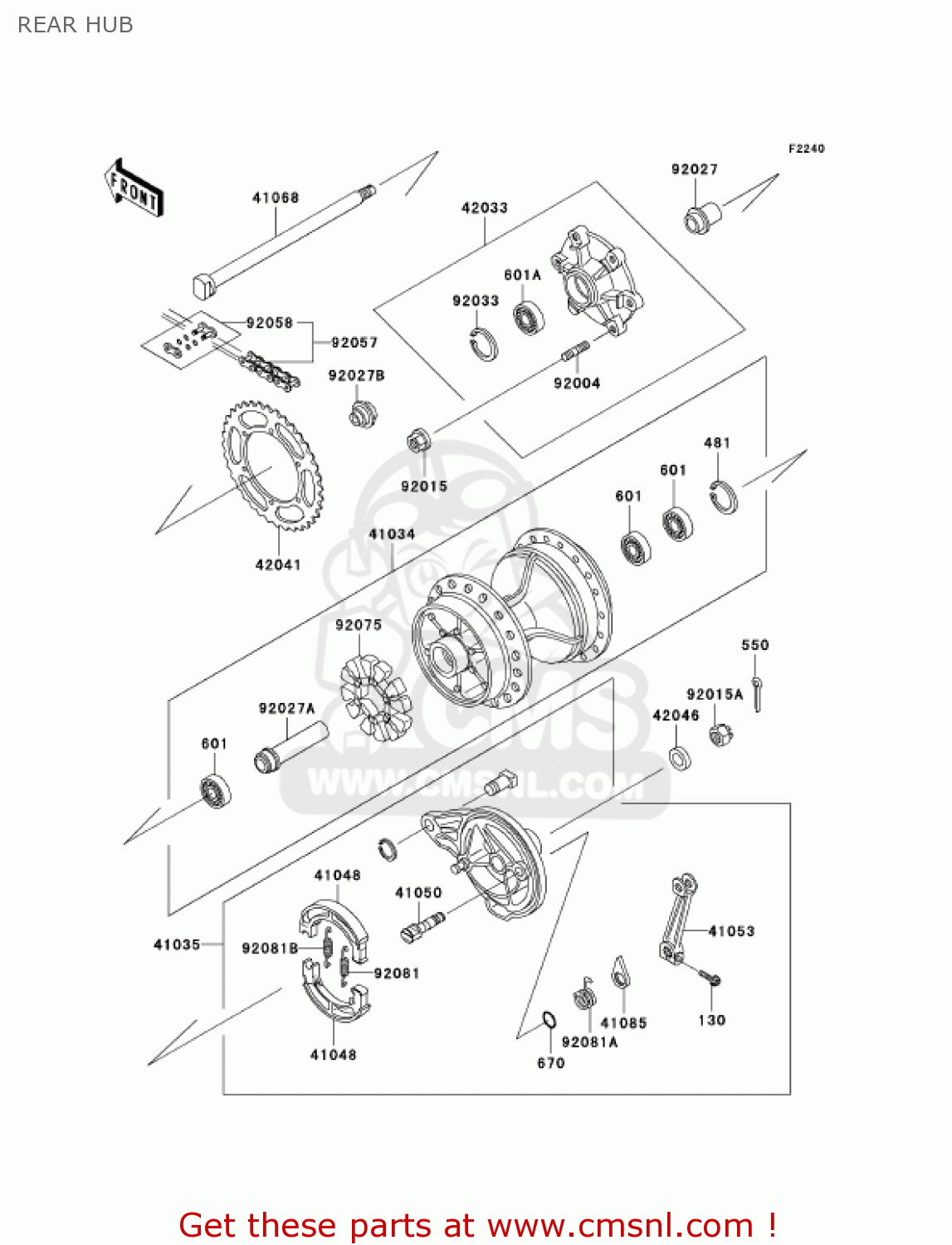

Rear hub diagram KL250D20 KLR250 2003 USA CALIFORNIA
REAR HUB KL250D20 KLR250 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6003UG
ref: 601
BEARING-BALL #6003UC3
€ 17.00
601A
601B6004UG
ref: 601A
BEARING-BALL,#6004U
€ 27.50
670
670B2015
ref: 670
O RING,15MM
€ 1.00
41034
410341113
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 482.50
41035
410351289
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 451.50
41048
410481084
ref: 41048
SHOE-BRAKE (NAS)
€ 26.00
41050
410501058
ref: 41050
CAM-BRAKE
€ 33.50
41053
410531061
ref: 41053
LEVER-BRAKE CAM
€ 69.50
41068
410681178
ref: 41068
AXLE,RR
€ 56.50
41085
41085005
ref: 41085
INDICATOR,FRONT BRAK
€ 9.00
42033
420331111
ref: 42033
COUPLING-ASSY,REAR HU
€ 205.50
42041
420411191
ref: 42041
SPROCKET-HUB,44T
€ 36.00
42046
42046009
ref: 42046
WASHER-SLEEVE
€ 5.00
92004
920041149
ref: 92004
STUD,8X18
€ 4.00
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151947
ref: 92015A
NUT
€ 6.50
92027
920271770
ref: 92027
COLLAR,REAR HUB COUPL
€ 14.50
92027A
920271823
ref: 92027A
COLLAR,REAR BRAKE DRU
€ 12.00
92027B
920271826
ref: 92027B
COLLAR,REAR HUB COUPL
€ 26.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92057
920570015
ref: 92057
CHAIN,DRIVE,EK520LV-O
€ 107.00
92058
920581100
ref: 92058
JOINT-CHAIN,DRIVE
€ 8.50
92075
920751068
ref: 92075
DAMPER,SHOCK,RR HUB
€ 34.50
92081
920811550
ref: 92081
SPRING,BRAKE SHOE
€ 6.00
92081A
920811615
ref: 92081A
SPRING,BRAKE CAM LEVE
€ 13.00
92081B
920811766
ref: 92081B
SPRING,BRAKE SHOE
€ 5.50
