FRAME
KL250D20 KLR250 2003 USA CALIFORNIA

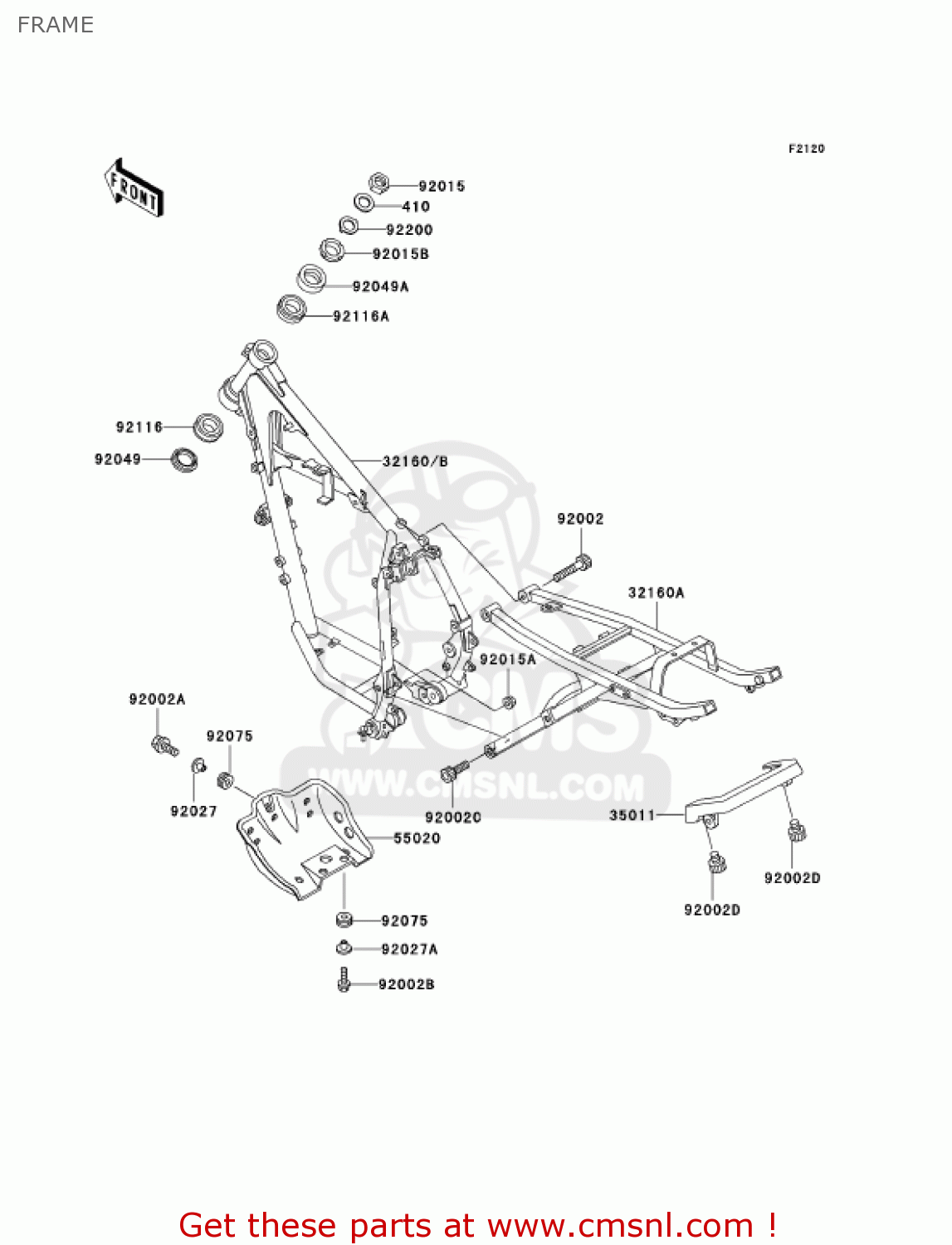

Frame diagram KL250D20 KLR250 2003 USA CALIFORNIA
FRAME KL250D20 KLR250 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
410
410F1800
ref: 410
W-PLAIN-S
€ 3.00
32160
321601327CE
ref: 32160
[US]
FRAME-COMP,FR,SILVER
€ 826.00
32160A
321601328CE
ref: 32160A
FRAME-COMP,AL,RR,SILV
€ 674.00
32160B
321601329CE
ref: 32160B
[CA]
FRAME,COMPLETE,FRONT,SILVER #25
€ 678.50
35011
350111236
ref: 35011
STAY,FRAME,RR
€ 41.00
55020
550201168
ref: 55020
GUARD,ENGINE
€ 205.50
92002
920021181
ref: 92002
BOLT,SOCKET,8X40
€ 5.50
92002A
920021417
ref: 92002A
BOLT,FLANGED,8X20
€ 2.50
92002B
920021418
ref: 92002B
BOLT,6X20
€ 3.00
92002C
920021442
ref: 92002C
BOLT,SOCKET,8X25
€ 3.00
92002D
920021443
ref: 92002D
BOLT,SOCKET,8X10
€ 3.50
92015
920151404
ref: 92015
NUT,18MM
€ 15.50
92015A
920151406
ref: 92015A
NUT,8MM
€ 3.00
92015B
920151546
ref: 92015B
NUT,25MM,T=12
€ 14.50
92027
920271842
ref: 92027
COLLAR,L=12
€ 4.50
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161052
ref: 92116A
BEARING-ROLLER,25X47X
€ 41.00
92200
922001357
ref: 92200
WASHER,CLAW,18.5X30X2
€ 4.50
