FRAME FITTINGS
KL250D20 KLR250 2003 USA CALIFORNIA

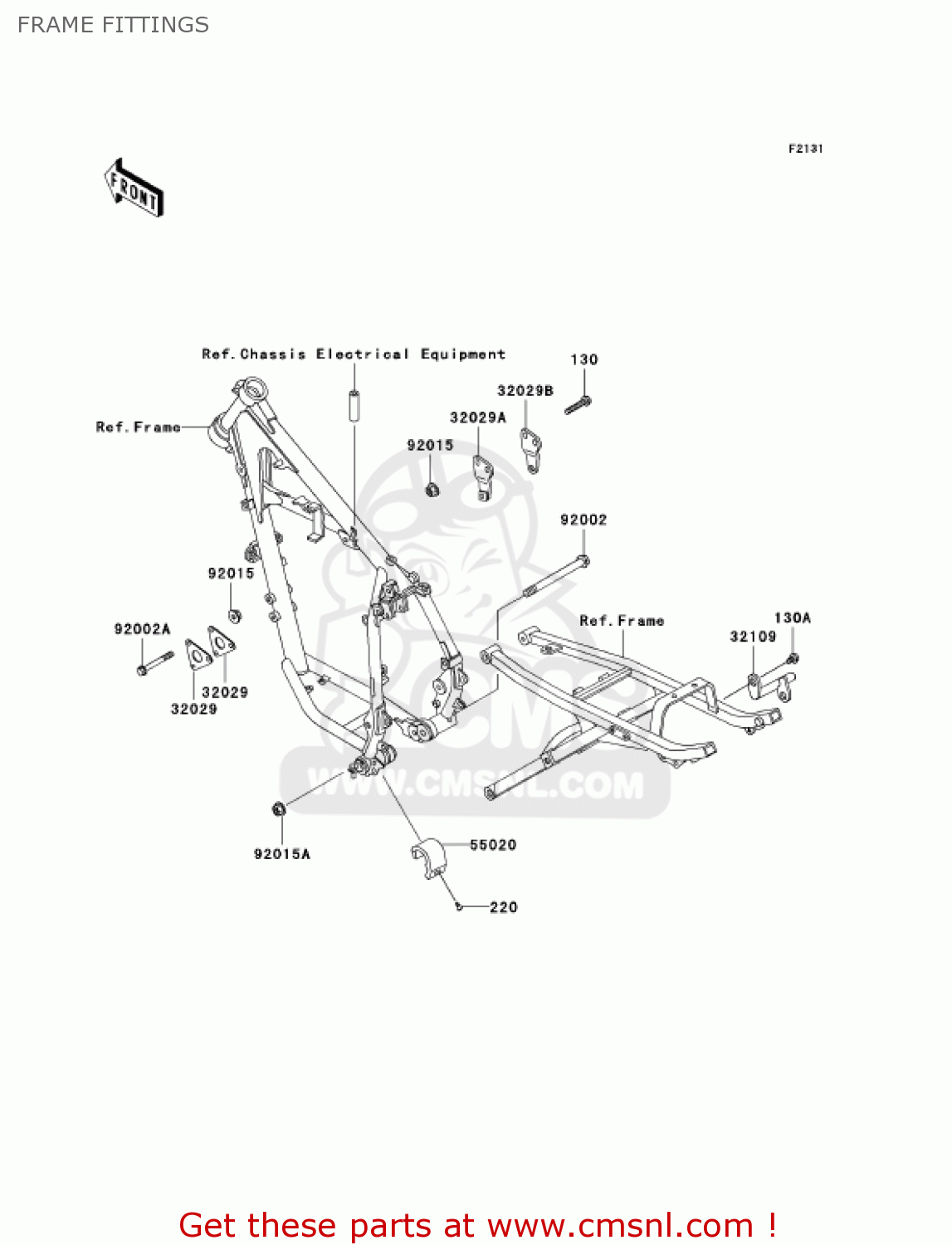

Frame fittings diagram KL250D20 KLR250 2003 USA CALIFORNIA
FRAME FITTINGS KL250D20 KLR250 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130H0845
ref: 130
BOLT-FLANGED
€ 1.00
130A
130N0812
ref: 130A
BOLT-FLANGED
€ 3.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
32029
320291352
ref: 32029
BRACKET-ENGINE,FR
€ 13.50
32029A
320291353
ref: 32029A
BRACKET-ENGINE,LH
€ 22.00
32029B
320291354
ref: 32029B
BRACKET-ENGINE,RH
€ 14.50
32109
321091239CE
ref: 32109
GRIP-FRAME,RH,SILVER
€ 27.00
55020
550201174
ref: 55020
GUARD,CHAIN
€ 25.00
92002
920021347
ref: 92002
BOLT,FLANGED,12X135
€ 13.50
92002A
920021349
ref: 92002A
BOLT,FLANGED,8X70
€ 3.50
92015
920151406
ref: 92015
NUT,8MM
€ 3.00
92015A
920151426
ref: 92015A
NUT,12MM
€ 4.50
