CARBURETOR
KL250D20 KLR250 2003 USA CALIFORNIA

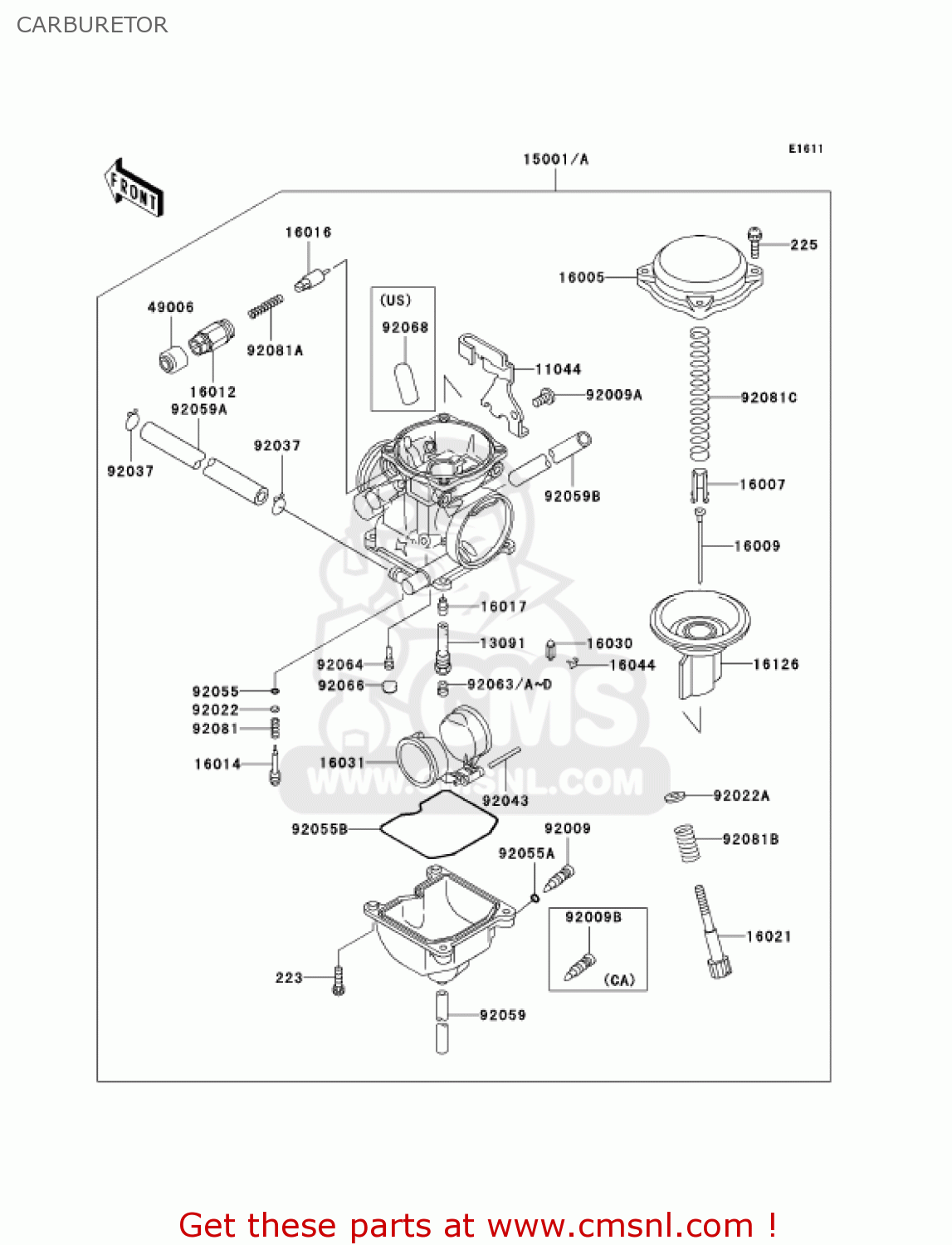

Carburetor diagram KL250D20 KLR250 2003 USA CALIFORNIA
CARBURETOR KL250D20 KLR250 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11044
110441061
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
13091
130911259
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
15001
150011121
ref: 15001
[US]
CARBURETOR-ASSY
€ 527.00
15001A
150011122
ref: 15001A
[CA]
CARBURETOR ASSEMBLY
€ 296.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091255
ref: 16009
JET,NEEDLE,#N31C
€ 20.50
16012
160121055
ref: 16012
CAP-STARTER PLUNGER
€ 17.50
16014
160141029
ref: 16014
SCREW-PILOT AIR
€ 13.50
16016
160161065
ref: 16016
PLUNGER,STARTER
€ 40.50
16017
160171265
ref: 16017
JET,NEEDLE
€ 37.00
16021
160211109
ref: 16021
SCREW-THROTTLE STOP
€ 31.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261163
ref: 16126
VALVE,VACUUM
€ 157.50
49006
490061165
ref: 49006
BOOT,STARTER PLUNGER
€ 6.50
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091551
ref: 92009B
[CA]
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
920221587
ref: 92022A
WASHER,THROTTLE STOP
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
€ 3.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92059
92059111
ref: 92059
HOSE,FUEL OVERFLOW
€ 17.50
92059A
920591538
ref: 92059A
TUBE,6.5X11.5X200
€ 22.50
92059B
920591539
ref: 92059B
TUBE,6.5X9.5X410
€ 23.00
92063
920631071
ref: 92063
JET-MAIN,#118
€ 9.50
92063A
920631072
ref: 92063A
(OFF ROAD USE ONLY)
MAIN JET 2ND #120
€ 9.50
92063B
920631073
ref: 92063B
(OFF ROAD USE ONLY)
MAIN JET,2ND #122
€ 9.50
92063C
920631117
ref: 92063C
(OFF ROAD USE ONLY)
JET-MAIN,#112
€ 9.50
92063D
920631118
ref: 92063D
(OFF ROAD USE ONLY)
JET-MAIN,#115
€ 9.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
€ 3.00
92068
92068006
ref: 92068
[US]
RUBBER PLUG
€ 2.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811720
ref: 92081A
SPRING,PLUNGER
€ 7.00
92081B
920811721
ref: 92081B
SPRING,THROTTLE STOP
€ 9.00
92081C
920811826
ref: 92081C
SPRING,VACUUM VALVE
€ 16.50
